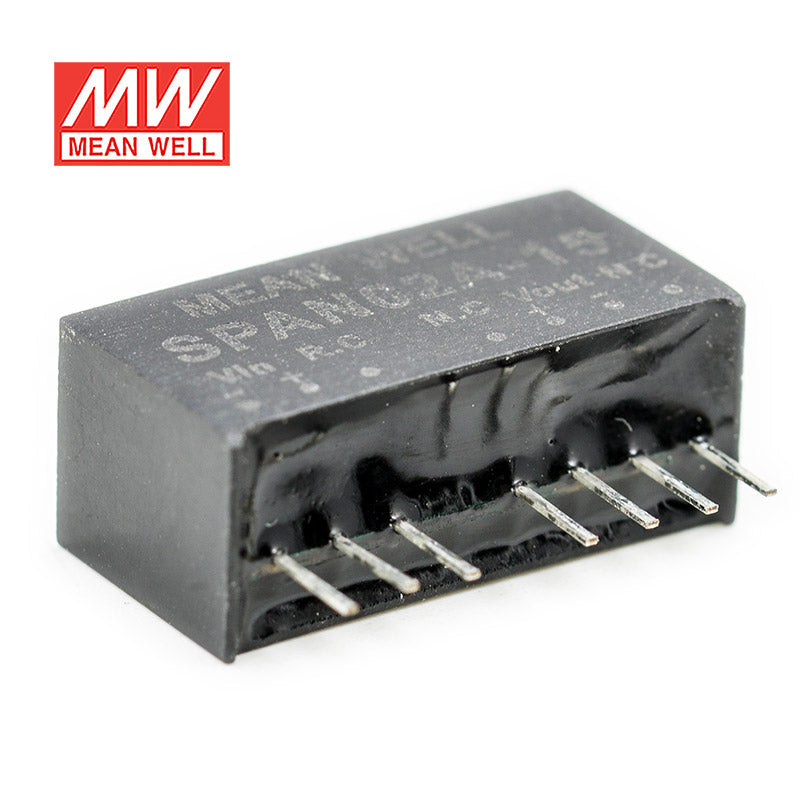

Mean Well SPAN02A-15 DC-DC Converter - 2W - 9~18V in 15V out
Please Login for Pricing
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesSPAN Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.13 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length2.18 cm
-
Width1.11 cm
-
Height0.92 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SPAN02A-15 to generate 15V for industrial instrumentation circuits?
Yes, it fits low-power instrumentation or control circuits that need constant 15V output and have a 9-18VAC input available. The 2W rating makes it suitable for small electronic sections rather than larger field loads.
Is the SPAN02A-15 suitable for embedded 15V analog or control rails?
It is intended for low-power designs that need a regulated 15V rail from 9-18VAC input. With constant voltage operation and a 2W output rating, it is aligned with embedded control and analog support circuitry.
Can this converter be used in compact automation modules that require 15V?
Yes, provided the module's 15V load stays within 2W and the available input is within 9-18VAC. Its 21.8 × 11.1 × 9.2 mm body also supports use in tightly packed automation assemblies.
Is the SPAN02A-15 appropriate for small board-level power conversion in industrial equipment?
It is built for small board-level conversion, with a 0.0048 kg weight and compact 21.8 × 11.1 × 9.2 mm size. That makes it practical for low-power industrial electronics needing constant 15V output.
What is the difference between the SPAN02A-15 and the other SPAN02A versions?
All listed SPAN02A models are 2W units, but they differ by output. The series includes SPAN02A-03 at 3.3V and 500A, SPAN02A-05 at 5V and 400A, SPAN02A-12 at 12V and 167A, and SPAN02A-15 at 15V and 134A.
Can the SPAN02A-15 be used in outdoor equipment or wide-temperature enclosures?
The operating temperature range is -40°C to +90°C, which supports demanding temperature conditions in equipment housings. No IP rating is provided, so the specs do not confirm suitability for outdoor exposure to water or dust.
