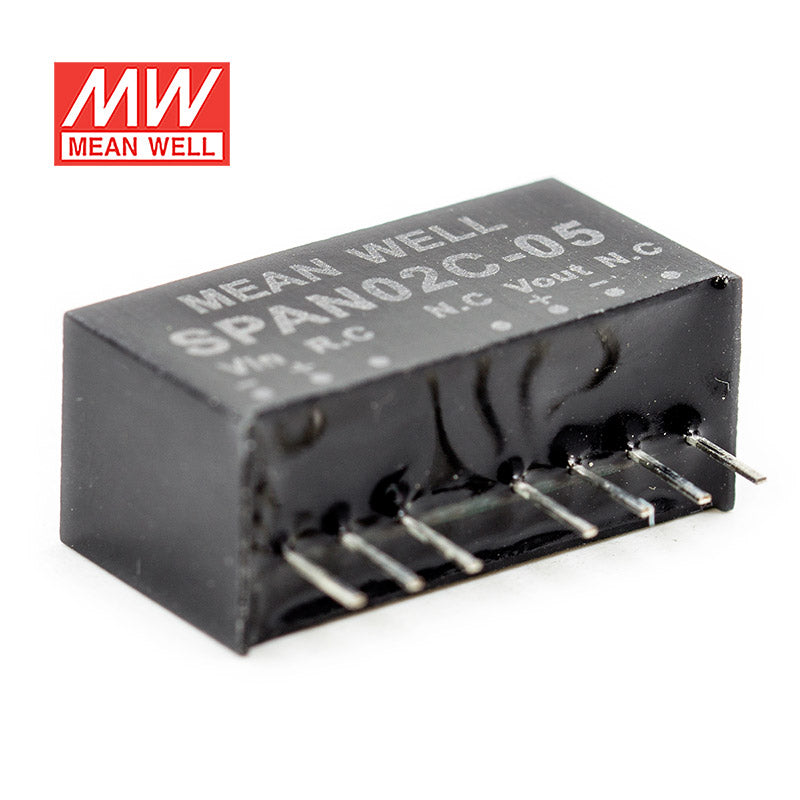

Mean Well SPAN02C-05 DC-DC Converter - 2W - 36~75V in 5V out
Please Login for Pricing
Description
Description
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- SIP8 package with industry standard pinout 2:1 wide input range
- Operating temperature range -40 ~ +90℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional
- Hcoigmhpeofnfiecinetnscy up to 85%
- Protections: Short circuit (Continuous) / Overload
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesSPAN Series
-
Power Rating2 Watt
-
Output Voltage5 Volt
-
Rated Current0.4 Ampere
-
Input Voltage36V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length2.18 cm
-
Width1.11 cm
-
Height0.92 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SPAN02C-05 to provide 5V power for industrial control logic from a higher-voltage source?
Yes, this model is for 36-75VAC input systems and delivers a constant 5V output. Its 2W rating makes it appropriate for low-power control, logic, or interface sections rather than larger 5V loads.
Is the SPAN02C-05 suitable for embedded 5V electronics in automation equipment?
It fits embedded and automation hardware that needs a constant 5V rail from a 36-75VAC input range. The small 21.8 × 11.1 × 9.2 mm body helps where board space is constrained.
Can the SPAN02C-05 be used for low-power 5V monitoring or communication circuits?
It is best matched to low-power 5V sections because the converter is rated at 2W and operates in constant-voltage mode. That makes it more suitable for control and monitoring electronics than for higher-demand 5V equipment.
How does the SPAN02C-05 compare with the other SPAN02C output options?
Each listed SPAN02C model is rated at 2W with a 36-75VAC input range. The outputs are 3.3V and 500A for SPAN02C-03, 5V and 400A for SPAN02C-05, 12V and 167A for SPAN02C-12, and 15V and 134A for SPAN02C-15.
Is the SPAN02C-05 intended for outdoor environments or extreme temperatures?
The operating temperature specification is -40°C to +90°C, so it is rated for wide-temperature operation. No IP rating appears in the provided specs, so the listing does not by itself confirm outdoor or water-exposed use.
