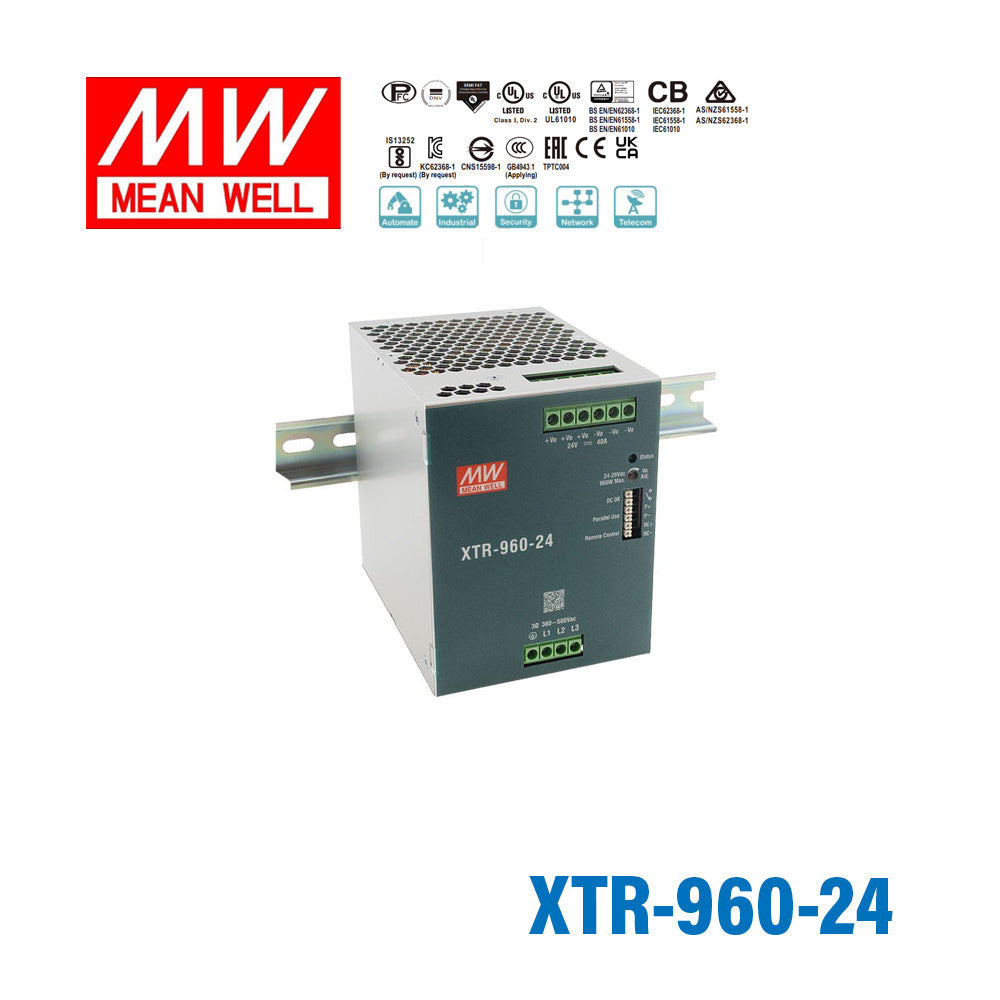

Mean Well XTR-960-24 Three Phase Din Rail Power Supply 960W 24V - S...
Please Login for Pricing
Description
Description
TheXTR-960series is a high-capacity 960W power supply, designed to deliver reliable power in challenging industrial settings. Its efficiency and advanced features make it ideal for large-scale applications requiring stable power and enhanced performance. The series supports parallel operation, ensuring scalability and flexibility in power distribution.
Key Features:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating960 Watt
-
Output Voltage24 Volt
-
Rated Current40 Ampere
-
Input Voltage320V~600V
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length13.2 cm
-
Width9.6 cm
-
Height12.52 cm
-
Weight1.8 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well XTR-960-24 designed for?
The XTR-960-24 is a 960W DIN rail AC-DC power supply for industrial power systems that need a stable 24V output. With a 40A rated current, it is suited for higher-capacity 24V loads in demanding B2B environments.
What output does the XTR-960-24 provide?
This model provides a 24V output with a rated current of 40A. Its total power rating is 960W, making it one of the higher-capacity options in DIN rail power supply applications.
Does the XTR-960-24 support wide input power?
Yes. The XTR-960-24 is specified with a three-phase 320 to 600Vac wide input range, and the product data also notes that dual phase operation is possible.
Can the XTR-960-24 be used in harsh temperature conditions?
The XTR-960-24 is rated for operation across a wide temperature range from -40°C to 85°C. That makes it suitable for demanding industrial environments where ambient conditions can vary significantly.
How does the XTR-960-24 compare with lower-wattage 24V DIN rail power supplies?
The main difference is capacity. This model delivers 960W at 24V and 40A, so it is intended for larger 24V systems than lower-wattage DIN rail supplies with smaller current ratings.
Does the XTR-960-24 support scalable power systems?
Yes. The XTR-960 series supports parallel operation, which can help with scalable power distribution in larger systems. The available product data identifies this as a key feature of the series.
What warranty period applies to the XTR-960-24?
The XTR-960-24 has a 5-year warranty period. For B2B buyers, that warranty length is useful when evaluating long-term support for industrial power supply deployments.
How much does the XTR-960-24 weigh?
The listed weight for the XTR-960-24 is 1.8 kg. This is useful for planning equipment layouts where component weight and space are part of the selection process.
Other XTR-960 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XTR-960-48PI Three Phase Din Rail Power Supply 960W 48V - Push In 20A | 960W | 48V | 20A | Indoor | View |
| Mean Well XTR-960-48LA Three Phase Din Rail Power Supply 960W 48V - Lever-Actuated 20A | 960W | 48V | 20A | Indoor | View |
| Mean Well XTR-960-48 Three Phase Din Rail Power Supply 960W 48V - Screw Terminal 20A | 960W | 48V | 20A | Indoor | View |
| Mean Well XTR-960-36PI Three Phase Din Rail Power Supply 960W 36V - Push In 26.66A | 960W | 36V | 26.66A | Indoor | View |
| Mean Well XTR-960-36LA Three Phase Din Rail Power Supply 960W 36V - Lever-Actuated 26.66A | 960W | 36V | 26.66A | Indoor | View |
| Mean Well XTR-960-36 Three Phase Din Rail Power Supply 960W 36V - Screw Terminal 26.66A | 960W | 36V | 26.66A | Indoor | View |
| Mean Well XTR-960-24PI Three Phase Din Rail Power Supply 960W 24V - Push In 40A | 960W | 24V | 40A | Indoor | View |
| Mean Well XTR-960-24LA Three Phase Din Rail Power Supply 960W 24V - Lever-Actuated 40A | 960W | 24V | 40A | Indoor | View |
