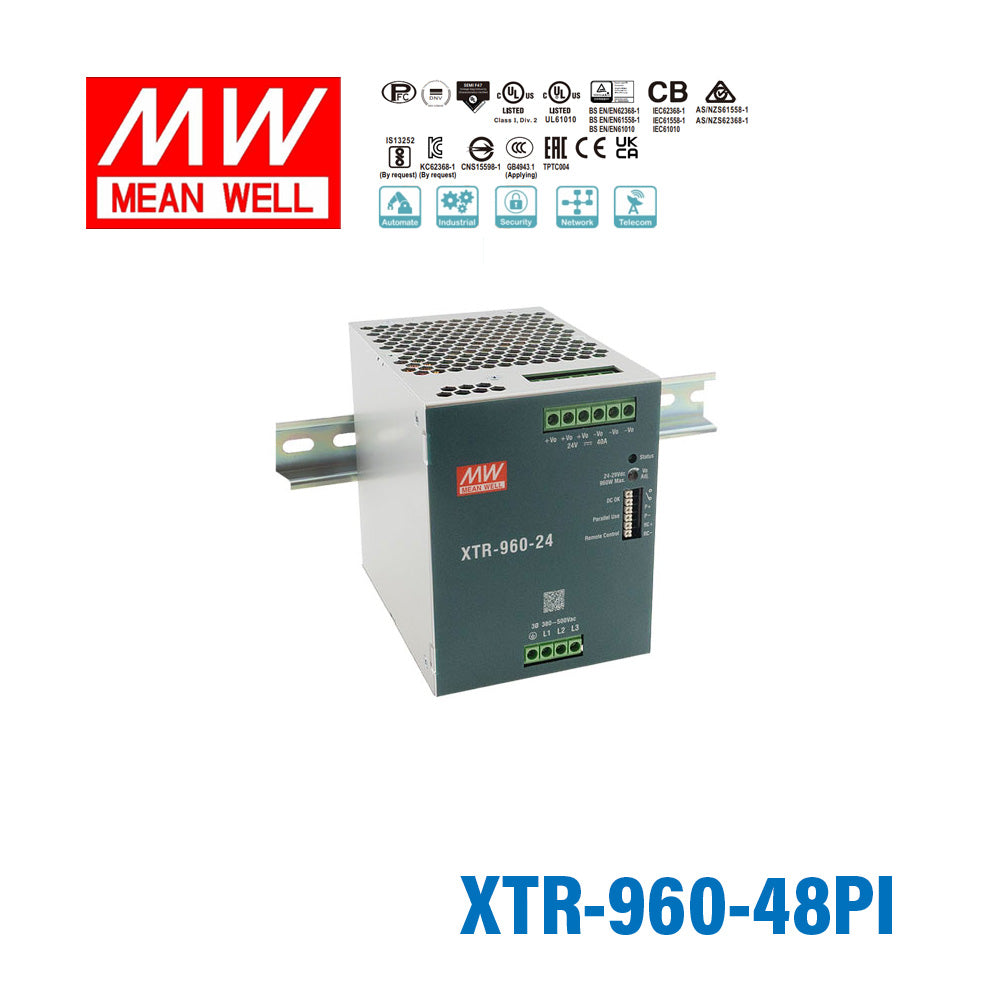

Mean Well XTR-960-48PI Three Phase Din Rail Power Supply 960W 48V - Push In 20A

The XTR-960-48PI is intended for high-capacity industrial power systems that need a stable 48V DC supply. With a 960W power rating and 20A rated output current, it fits larger DIN rail power applications where higher output capacity is required.

This model provides a 48V DC output with a rated current of 20A. Its total rated power is 960W, making it a high-output DIN rail AC-DC power supply.

The product description lists a three-phase 320 to 600Vac wide input range. It also notes that dual phase operation is possible, which may be relevant for industrial power environments where input availability varies.

The listed operating temperature range is -40°C to 85°C. That wide range makes it suitable for demanding industrial environments where ambient temperatures can vary significantly.

Yes. The description states that the XTR-960 series supports parallel operation, which is useful when a system needs scalable power capacity.

The XTR-960-48PI is a 960W model, so it is intended for higher-capacity loads than smaller DIN rail power supplies. Its 48V, 20A output makes it a better fit when the application requires substantial DC power from a DIN rail AC-DC supply.

The listed warranty period for this model is 5 years. That warranty length is consistent with its positioning as an industrial DIN rail power supply for demanding applications.

The listed weight for the XTR-960-48PI is 1.8 kg. This is useful to know when comparing it with other high-capacity DIN rail power supplies for panel planning or equipment documentation.
