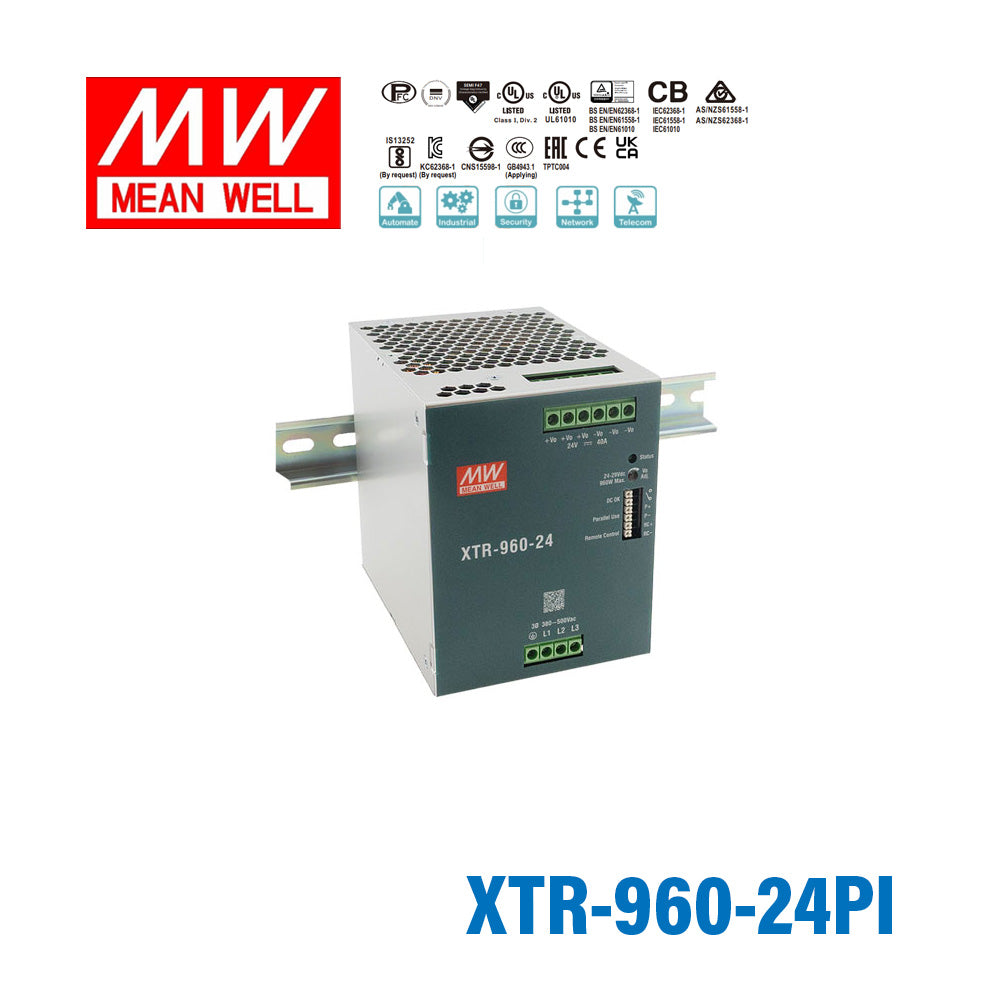

Mean Well XTR-960-24PI Three Phase Din Rail Power Supply 960W 24V - Push In 40A

96mm ultra slim width, high efficiency up to 96%, 200% peak power capacity, conformal coating, current sharing up to 3840W
SKU:
XTR-960-24PI
Please for Pricing
|

Description

TheXTR-960series is a high-capacity 960W power supply, designed to deliver reliable power in challenging industrial settings. Its efficiency and advanced features make it ideal for large-scale applications requiring stable power and enhanced performance. The series supports parallel operation, ensuring scalability and flexibility in power distribution.

Key Features:

Specifications
  • Brand
    Mean Well
  • Series
    Mean Well XTR Series
  • Power Rating
    960 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    40 Ampere
  • Input Voltage
    320V~600V
  • Standards Met
    CB,CCC,CE,EAC,EN,KC
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    13.2 cm
  • Width
    9.6 cm
  • Height
    12.52 cm
  • Weight
    1.8 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main output specifications of the Mean Well XTR-960-24PI?

The Mean Well XTR-960-24PI is a 960W AC-DC DIN rail power supply with a 24V output. It is rated for 40A output current, making it suitable for higher-power industrial DC loads.

What types of applications is the XTR-960-24PI designed for?

This model is designed for industrial applications that require stable 24V DC power at higher capacity. Its 960W rating makes it appropriate for larger control panels, automation systems, and distributed industrial power environments where a DIN rail format is preferred.

Does the XTR-960-24PI support three-phase input?

Yes. The XTR-960-24PI supports three-phase 320 to 600Vac wide range input. The product description also notes that dual phase operation is possible.

Can the XTR-960-24PI be used in parallel operation?

Yes. The XTR-960 series supports parallel operation, which can help scale power capacity in suitable industrial power systems. This makes the series useful where higher total power or added flexibility is required.

What operating temperature range does the XTR-960-24PI support?

The XTR-960-24PI is specified for operation from -40°C to 85°C. This wide temperature range supports use in demanding industrial environments where ambient conditions can vary significantly.

How is the XTR-960-24PI different from lower-wattage DIN rail power supplies?

The XTR-960-24PI provides 960W of output power at 24V and 40A, which is substantially higher than many compact DIN rail power supplies. It is intended for applications that need higher current capacity while keeping a DIN rail power supply format.

What warranty period applies to the Mean Well XTR-960-24PI?

The XTR-960-24PI has a 5-year warranty period. This aligns with its role as an industrial power supply intended for long-term operation in demanding environments.
