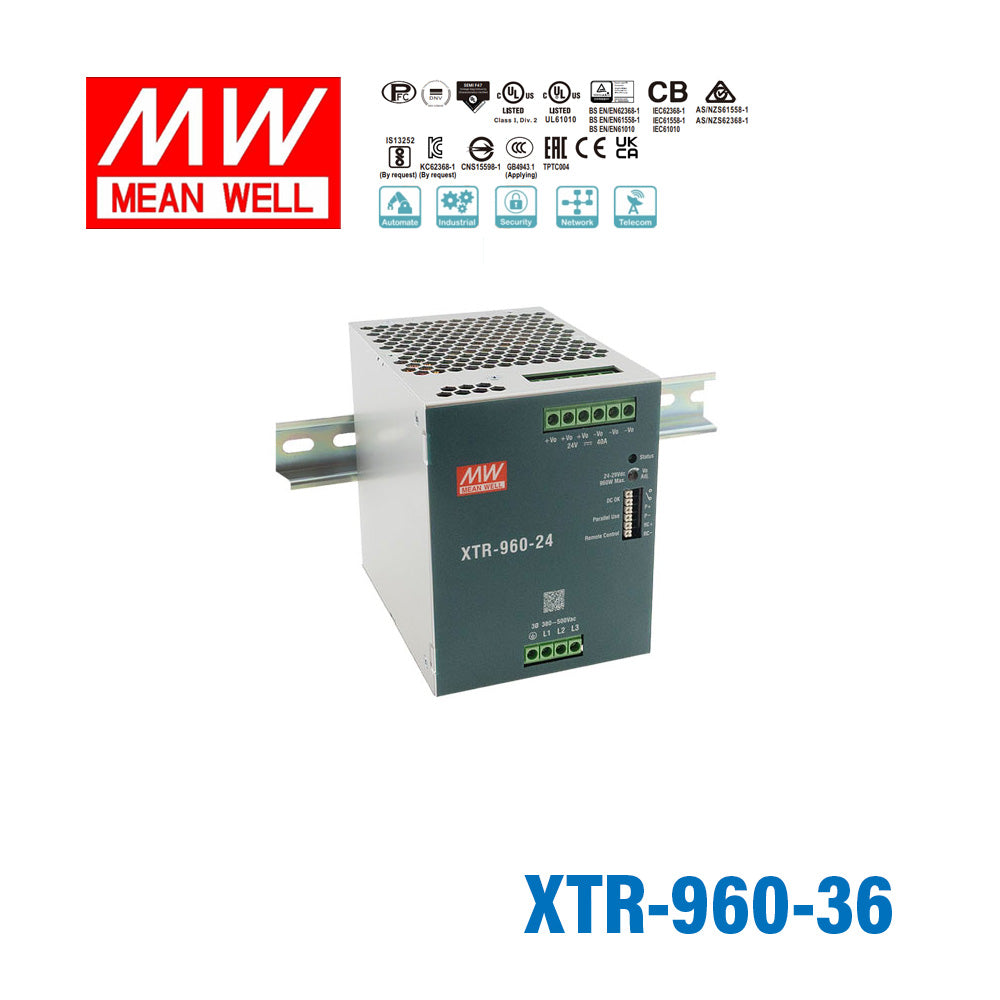

Mean Well XTR-960-36 Three Phase Din Rail Power Supply 960W 36V - S...
Please Login for Pricing
Description
Description
TheXTR-960series is a high-capacity 960W power supply, designed to deliver reliable power in challenging industrial settings. Its efficiency and advanced features make it ideal for large-scale applications requiring stable power and enhanced performance. The series supports parallel operation, ensuring scalability and flexibility in power distribution.
Key Features:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating960 Watt
-
Output Voltage36 Volt
-
Rated Current26.66 Ampere
-
Input Voltage320V~600V
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length13.2 cm
-
Width9.6 cm
-
Height12.52 cm
-
Weight1.8 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well XTR-960-36 designed for?
The XTR-960-36 is intended for high-capacity industrial power systems that need a stable 36V DC output. With a 960W rating and 26.66A rated current, it is suited to larger automation, control, and equipment power loads within its stated output range.
What output does the XTR-960-36 provide?
This model provides a 36V DC output with a rated current of 26.66A. Its total power rating is 960W.
What input range does this power supply support?
The XTR-960-36 supports a three-phase 320 to 600Vac wide input range. The provided product data also notes that dual phase operation is possible.
Can the XTR-960-36 be used in high-temperature or cold industrial environments?
Yes, the listed operating temperature range is -40°C to 85°C. That makes it appropriate for demanding environments where the power supply must tolerate both low and elevated ambient temperatures within the specified range.
Does the XTR-960-36 support scalable power systems?
Yes, the XTR-960 series supports parallel operation according to the product description. This makes the series relevant for larger systems where power distribution needs may grow over time.
How does the XTR-960-36 differ from lower-power DIN rail power supplies?
The key difference is capacity: this model is rated at 960W with a 36V, 26.66A output. It is a better fit for higher-load industrial applications than lower-wattage DIN rail supplies when the system requires this voltage and current range.
What warranty period is listed for the XTR-960-36?
The listed warranty period for the Mean Well XTR-960-36 is 5 years. This aligns with its positioning as a high-capacity industrial power supply.
Other XTR-960 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XTR-960-48PI Three Phase Din Rail Power Supply 960W 48V - Push In 20A | 960W | 48V | 20A | Indoor | View |
| Mean Well XTR-960-48LA Three Phase Din Rail Power Supply 960W 48V - Lever-Actuated 20A | 960W | 48V | 20A | Indoor | View |
| Mean Well XTR-960-48 Three Phase Din Rail Power Supply 960W 48V - Screw Terminal 20A | 960W | 48V | 20A | Indoor | View |
| Mean Well XTR-960-36PI Three Phase Din Rail Power Supply 960W 36V - Push In 26.66A | 960W | 36V | 26.66A | Indoor | View |
| Mean Well XTR-960-36LA Three Phase Din Rail Power Supply 960W 36V - Lever-Actuated 26.66A | 960W | 36V | 26.66A | Indoor | View |
| Mean Well XTR-960-24PI Three Phase Din Rail Power Supply 960W 24V - Push In 40A | 960W | 24V | 40A | Indoor | View |
| Mean Well XTR-960-24LA Three Phase Din Rail Power Supply 960W 24V - Lever-Actuated 40A | 960W | 24V | 40A | Indoor | View |
| Mean Well XTR-960-24 Three Phase Din Rail Power Supply 960W 24V - Screw Terminal 40A | 960W | 24V | 40A | Indoor | View |
