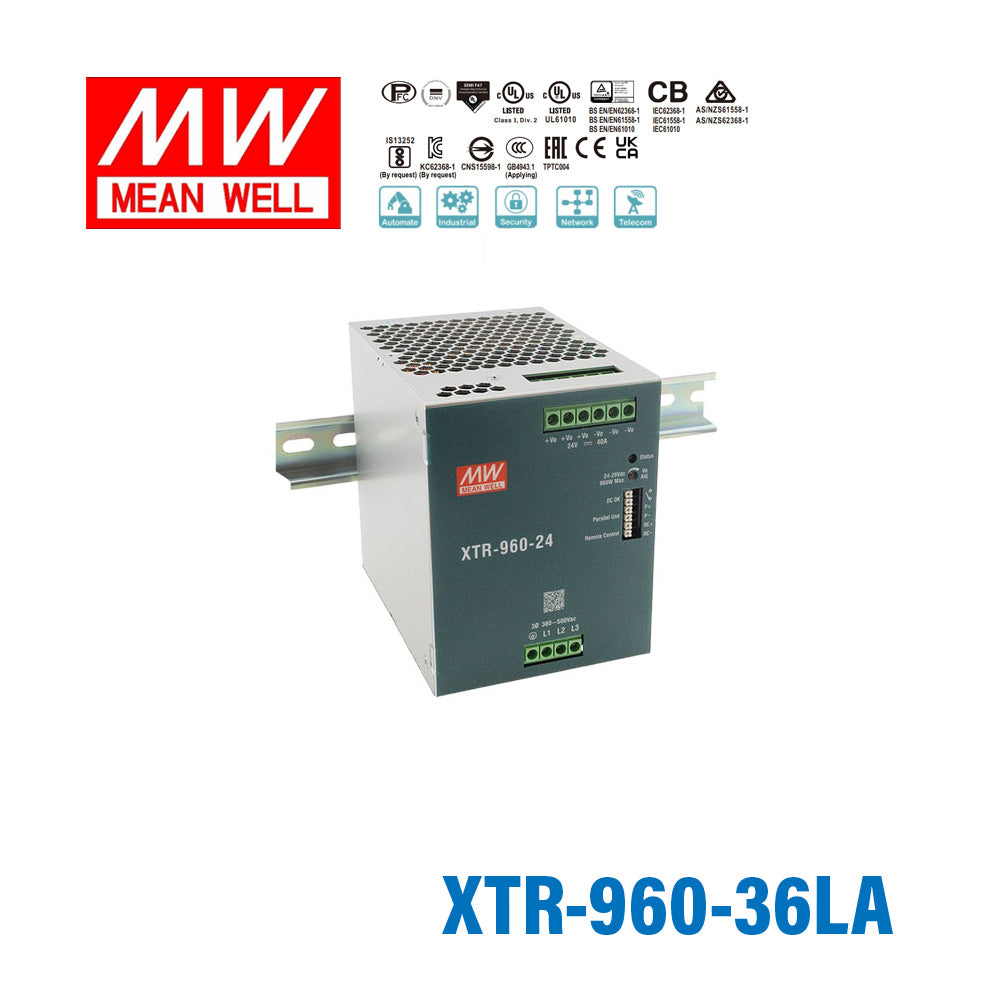

Mean Well XTR-960-36LA Three Phase Din Rail Power Supply 960W 36V - Lever-Actuated 26.66A

The XTR-960-36LA is a 960W DIN rail AC-DC power supply for industrial power systems that need a stable 36V DC output. It is suited to larger control panels, automation equipment, and other B2B industrial applications where high output power and reliability are important.

This model provides a 36V DC output with a rated current of 26.66A. Its total power rating is 960W, making it a high-capacity option within DIN rail power supply applications.

Yes. The XTR-960-36LA is specified for three-phase 320 to 600Vac wide range input, with dual phase operation also noted as possible in the product description.

The listed operating temperature range for this model is -40°C to 85°C. That wide range makes it relevant for demanding industrial environments where equipment may be exposed to low or elevated ambient temperatures.

The XTR-960 series supports parallel operation according to the product description. That can make it useful in scalable power distribution designs where capacity requirements may grow.

The main difference is capacity: this model is rated at 960W with a 36V, 26.66A output. It is better matched to larger industrial loads than lower-wattage DIN rail supplies, assuming the system requires the listed voltage and power range.

The listed warranty period for the XTR-960-36LA is 5 years. This is relevant for industrial buyers evaluating lifecycle cost and long-term support expectations.

The listed weight for this model is 1.8 kg. That weight is useful to consider when planning equipment layout, panel capacity, or shipping requirements.
