Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

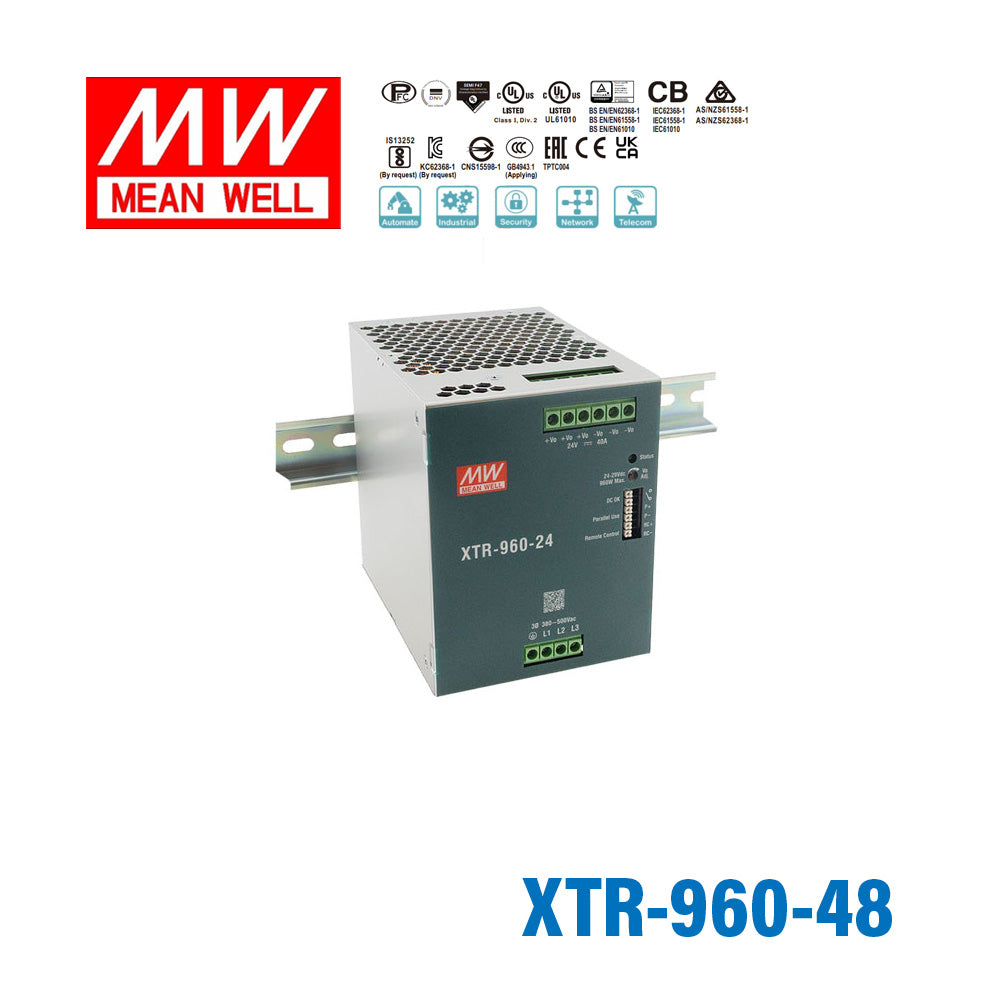

Mean Well XTR-960-48 Three Phase Din Rail Power Supply 960W 48V - Screw Terminal 20A

96mm ultra slim width, high efficiency up to 96%, 200% peak power capacity, conformal coating, current sharing up to 3840W
SKU:
XTR-960-48
Please for Pricing
|

Description

TheXTR-960series is a high-capacity 960W power supply, designed to deliver reliable power in challenging industrial settings. Its efficiency and advanced features make it ideal for large-scale applications requiring stable power and enhanced performance. The series supports parallel operation, ensuring scalability and flexibility in power distribution.

Key Features:

Specifications
  • Brand
    Mean Well
  • Series
    Mean Well XTR Series
  • Power Rating
    960 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    20 Ampere
  • Input Voltage
    320V~600V
  • Standards Met
    CB,CCC,CE,EAC,EN,KC
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    13.2 cm
  • Width
    9.6 cm
  • Height
    12.52 cm
  • Weight
    1.8 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main output specs of the Mean Well XTR-960-48?

The XTR-960-48 is a 960W AC-DC DIN rail power supply with a 48V output. It is rated for 20A output current, making it suitable for higher-power industrial DC loads.

What input power range does the XTR-960-48 support?

This model supports a three-phase 320 to 600Vac wide input range. The product description also notes that dual-phase operation is possible.

What types of applications is the XTR-960-48 intended for?

The XTR-960-48 is designed for challenging industrial settings that require stable, high-capacity DC power. Its 960W rating and 48V output make it a fit for larger control panels, automation systems, and other industrial power distribution uses.

What operating temperature range does this power supply support?

The XTR-960-48 is specified for operation from -40°C to 85°C. That wide temperature range supports use in demanding industrial environments where ambient conditions may vary significantly.

Can the XTR-960-48 support scalable power systems?

Yes. The XTR-960 series supports parallel operation, which can help scale power capacity in suitable system designs.

When should a buyer choose the XTR-960-48 instead of a lower-wattage DIN rail power supply?

This model is appropriate when the load requires up to 960W at 48V and a rated current of 20A. For applications with substantially lower power demand, a lower-wattage DIN rail supply may be more appropriate.

What is the warranty period for the XTR-960-48?

The XTR-960-48 has a 5-year warranty period. This is useful for B2B buyers comparing expected service life and support coverage across industrial power supplies.

How much does the XTR-960-48 weigh?

The listed weight for the XTR-960-48 is 1.8 kg. This may be relevant for panel planning, shipping estimates, and equipment documentation.
