Mean Well

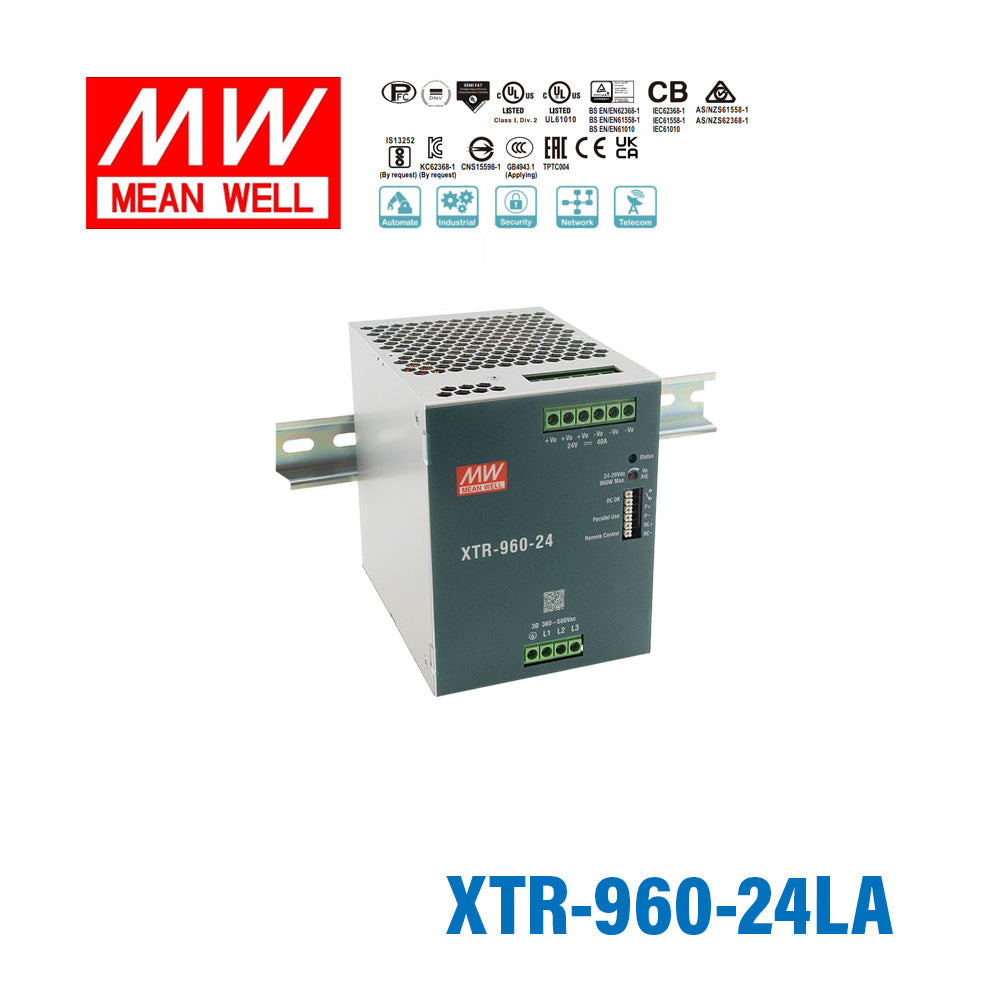

Mean Well XTR-960-24LA Three Phase Din Rail Power Supply 960W 24V - Lever-Actuated 40A

96mm ultra slim width, high efficiency up to 96%, 200% peak power capacity, conformal coating, current sharing up to 3840W
SKU:
XTR-960-24LA
Please for Pricing
|

Description

TheXTR-960series is a high-capacity 960W power supply, designed to deliver reliable power in challenging industrial settings. Its efficiency and advanced features make it ideal for large-scale applications requiring stable power and enhanced performance. The series supports parallel operation, ensuring scalability and flexibility in power distribution.

Key Features:

Specifications
  • Brand
    Mean Well
  • Series
    Mean Well XTR Series
  • Power Rating
    960 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    40 Ampere
  • Input Voltage
    320V~600V
  • Standards Met
    CB,CCC,CE,EAC,EN,KC
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    13.2 cm
  • Width
    9.6 cm
  • Height
    12.52 cm
  • Weight
    1.8 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Mean Well XTR-960-24LA used for?

The XTR-960-24LA is a 960W AC-DC DIN rail power supply for industrial power systems that need a stable 24V DC output. It is suited to higher-load automation, control, and equipment applications where three-phase input power is available.

What output does the XTR-960-24LA provide?

This model provides 24V DC output with a rated current of 40A. Its total rated power is 960W, making it a high-capacity option within DIN rail power supply applications.

What input power range does the XTR-960-24LA support?

The XTR-960-24LA supports a three-phase 320 to 600Vac wide input range. The product description also notes that dual phase operation is possible.

Can the XTR-960-24LA be used in harsh temperature environments?

Yes. This model is rated for operation from -40°C to 85°C, making it suitable for demanding industrial environments where temperature variation is a concern.

Does the XTR-960-24LA support scalable power systems?

Yes. The XTR-960 series supports parallel operation, which can help with scalability and flexibility in larger power distribution designs.

How does the XTR-960-24LA compare with lower-power DIN rail power supplies?

The XTR-960-24LA is rated at 960W and 40A at 24V, so it is intended for larger loads than lower-power DIN rail models. It also supports a wide three-phase 320 to 600Vac input range, which is useful in industrial systems with higher input power requirements.

What warranty is provided with the XTR-960-24LA?

The XTR-960-24LA has a 5-year warranty period. This supports its use in industrial applications where long service life and dependable operation are important purchasing factors.

How much does the XTR-960-24LA weigh?

This model weighs 1.8 kg. The weight is useful to consider when comparing high-capacity DIN rail power supplies for industrial equipment planning.
