What is the Wago 281-601 terminal block used for?

The Wago 281-601 is a 2-conductor through terminal block intended for organized conductor termination in DIN-rail mounted electrical assemblies. It is suited to applications where a compact 4 mm² terminal block is needed in control panels or other industrial electrical enclosures.

What conductor size is this terminal block designed for?

This model is specified for 4 mm² conductors. That makes it a fit for applications requiring a through terminal block in that conductor size class, rather than smaller signal-terminal formats.

Which DIN rail sizes is the Wago 281-601 compatible with?

The Wago 281-601 is designed for DIN-rail 35 x 15 and 35 x 7.5. Buyers matching replacement parts should confirm their assembly uses one of those standard DIN-rail profiles.

Does this terminal block include marker slots for identification?

Yes. The Wago 281-601 includes lateral marker slots, which helps support circuit or terminal identification in panel layouts where labeling is important for maintenance and documentation.

What clamp technology does the Wago 281-601 use?

This terminal block uses Wago's CAGE CLAMP® connection technology. For buyers comparing Wago terminal blocks, that is a key identifying feature of this specific model.

What is the rated current of the Wago 281-601?

The rated current for this model is 32 A. That specification is useful when comparing through terminal blocks for applications that require a 4 mm² terminal with a defined current rating.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Wago

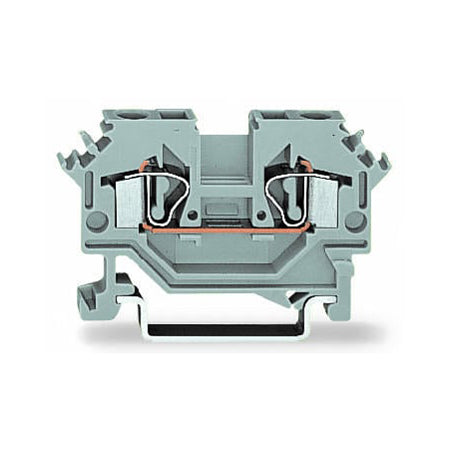

Wago 281-601 2-conductor Through Terminal Block 4mm² Lateral Marker Slots for DIN-rail CAGE CLAMP® Gray

2-conductorLateral marker slotsCAGE CLAMP®Gray

SKU:

281-601

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

2-conductor through terminal block; 4 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 4,00 mm²; gray
