Overview

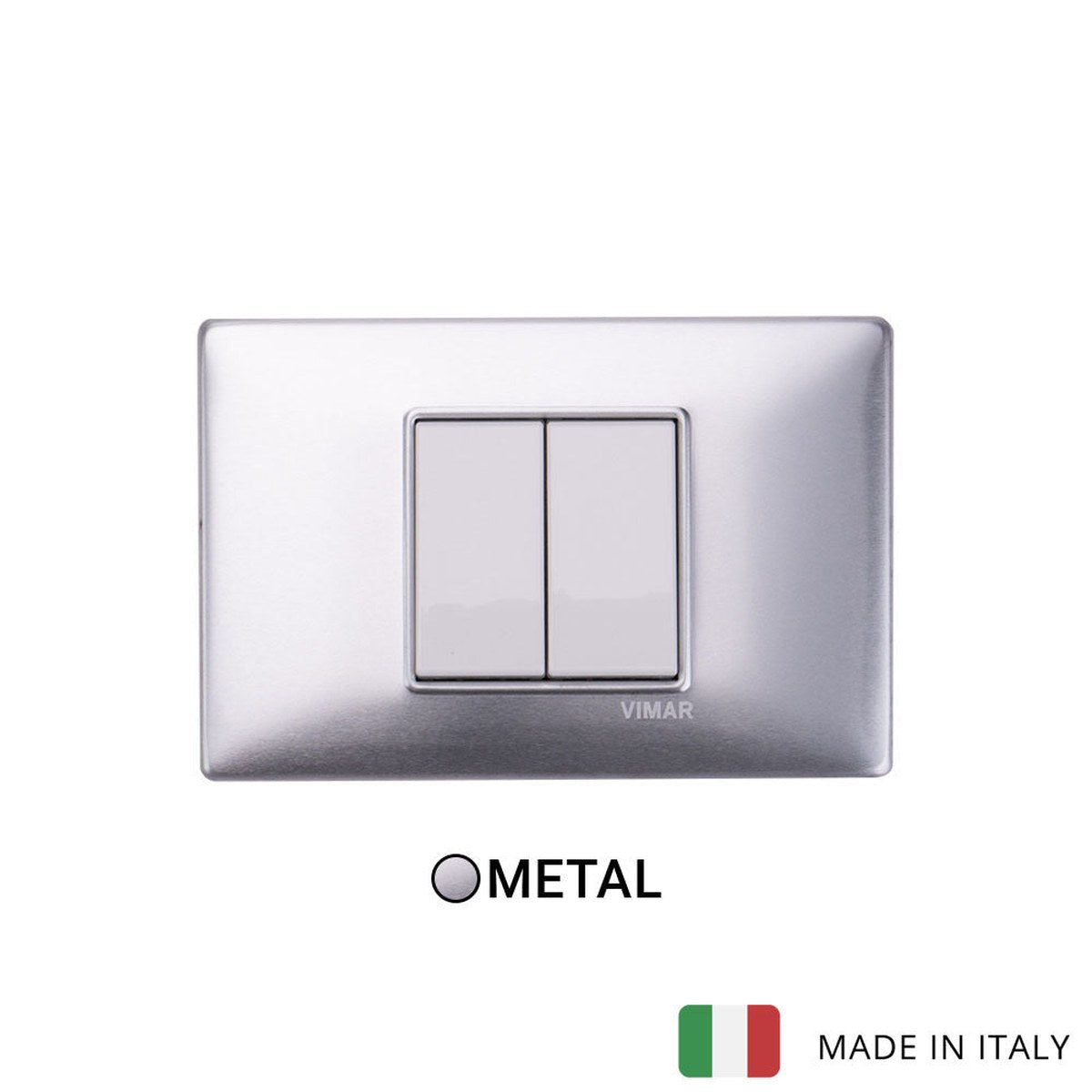

This kit is assembled from Vimar parts: 1 × plate 2centrM brushed aluminium (VM-14652.81); 1 × frame 2centralM +screws (VM-14612); 2 × 1P 16AX 1-way switch 2M (VM-14001.2). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-14652.81 · plate 2centrM brushed aluminium
- Frame × 1
- VM-14612 · frame 2centralM +screws
- Installation switch × 2
- VM-14001.2 · 1P 16AX 1-way switch 2M white
Cover plate (VM-14652.81)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 2
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 2
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Metal
- Material quality
- Aluminium
- Halogen free
- Yes
- Surface protection
- Anodised
- Surface finishing
- Matt
- Colour
- Aluminium
- RAL-number (similar)
- 9006
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 120 mm
- Height
- 80 mm
- Depth
- 9 mm
- Built-in width
- 120 mm
- Built-in height
- 80 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-14612)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy)
Installation switch (VM-14001.2)
- Product type
- Installation switch
- Wiring system
- Switch 1-pole
- Operating method
- Rocker/button
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 2
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9003
- Label space/information surface
- Yes
- Lighting
- Optional
- Function lighting
- Control and orientation
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Connection type
- Screwed terminal
- Device width
- 44.8 mm
- Device height
- 49 mm
- Device depth
- 38.4 mm
- Built-in depth
- 24 mm
- Certifications
- CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), TSE (Turkey), CCC (China), SASO (Saudi Arabia), WEEE Directive
Technical drawings
Downloads
FAQ
What type of product is the Vimar Plana Metal 2 Gang Switch?
This is a Vimar Plana series 2 gang switch with a brushed aluminum metal finish. It is intended for buyers selecting a matching switch style within the Plana range for commercial or project use.
What finish does this Vimar Plana 2 gang switch have?
The finish is brushed aluminum. This applies across the parent product family and the listed child variants.
What is the current rating of this switch?
The parent product name specifies a 16A rating. No other electrical performance specifications are provided in the supplied product data.
Are there differences between the child variants for this parent product?
The listed child variants share the same product name, brushed aluminum finish, and 3 year warranty period. The provided child data does not show differences in CCT, beam angle, CRI, power rating, brightness, driver, dimming control, lifetime, or cut-out dimensions.
What are the dimensions of the Vimar Plana Metal 2 Gang Switch?
The supplied parent dimensions are 120.0000 mm wide, 80.0000 mm long, and 9.0000 mm high. The listed weight is 1.0000 kg.
What warranty period applies to this product family?
The warranty period shown for the parent product is 3.0000 year. The listed child variants also show a 3.0000 year warranty period.
