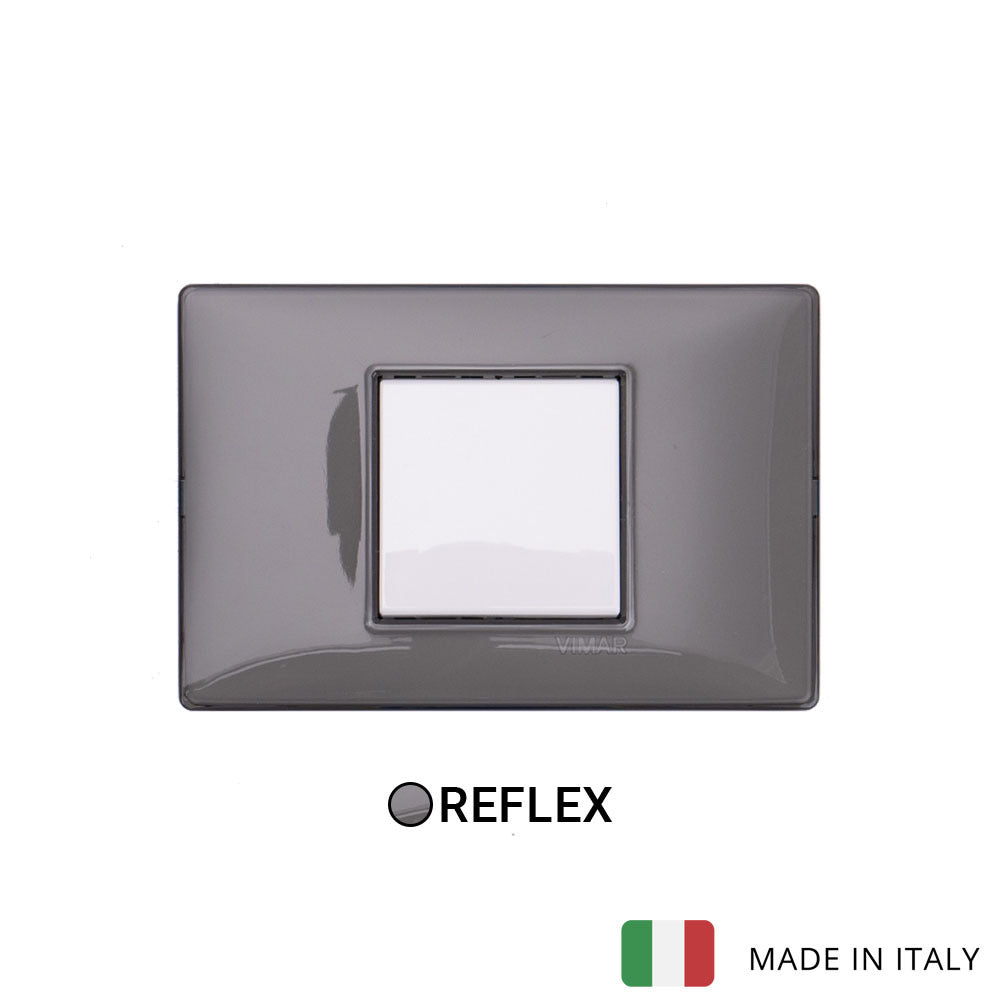

Vimar Plana Plastic 1 Gang Switch - Reflex Ash - 16A
Request a quote for one or many products — we'll reply with pricing and availability.
Notify me when it's back in stock
Overview
This kit is assembled from Vimar parts: 1 × plate 2centrM Reflex ash (VM-14652.40); 1 × frame 2centralM +screws (VM-14612); 1 × 1P 16AX 1-way switch 2M (VM-14001.2). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-14652.40 · plate 2centrM Reflex ash
- Frame × 1
- VM-14612 · frame 2centralM +screws
- Installation switch × 1
- VM-14001.2 · 1P 16AX 1-way switch 2M white
Cover plate (VM-14652.40)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 2
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 2
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Plastic
- Material quality
- Acrylic glass
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- Grey
- RAL-number (similar)
- 7023
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 120 mm
- Height
- 80 mm
- Depth
- 9 mm
- Built-in width
- 120 mm
- Built-in height
- 80 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-14612)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy)
Installation switch (VM-14001.2)
- Product type
- Installation switch
- Wiring system
- Switch 1-pole
- Operating method
- Rocker/button
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 2
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9003
- Label space/information surface
- Yes
- Lighting
- Optional
- Function lighting
- Control and orientation
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Connection type
- Screwed terminal
- Device width
- 44.8 mm
- Device height
- 49 mm
- Device depth
- 38.4 mm
- Built-in depth
- 24 mm
- Certifications
- CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), TSE (Turkey), CCC (China), SASO (Saudi Arabia), WEEE Directive
Technical drawings
Downloads
FAQ
What is the Vimar Plana Plastic 1 Gang Switch used for?
This parent product is a 1 gang switch in the Vimar Plana range, suited to projects specifying Plana-style light switches and sockets. It is listed for B2B switch categories including 1 gang switches, Plana switches, and light switch applications.
What is the current rating of this Vimar Plana 1 gang switch?
The product name identifies this model as a 16A switch. No additional electrical performance specifications are provided in the parent or child product data.
What finish and material does this switch have?
This model is described as a plastic switch with a Reflex Ash finish. The finish colour value for the parent product and both listed child variants is reflex_ash.
Are there meaningful specification differences between the child variants?
The listed child variants, Z-VM11GS-RASH and Z-VM11GW-RASH, share the same product name, Reflex Ash finish, and 3 year warranty period in the provided data. No differences are shown for power rating, CCT, beam angle, CRI, brightness, driver, dimming control, cut-out, or lifetime.
What are the listed dimensions and weight for the parent product?
The parent product is listed with dimensions of 120.0000 mm width, 80.0000 mm length, and 9.0000 mm height. The listed weight is 1.0000 kg.
Is this product part of the Vimar Plana switch range?
Yes. The product is branded Vimar and appears in Plana-related categories including archi_switch_plana, b2b_switch_plana, b2b_switch_1_gang_plana, light_plana_1gang, and light_vimar_plana.
What warranty period is listed for this parent product?
The parent product has a listed warranty period of 3.0000 years. Both provided child variants also show the same 3.0000 year warranty period.
