Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

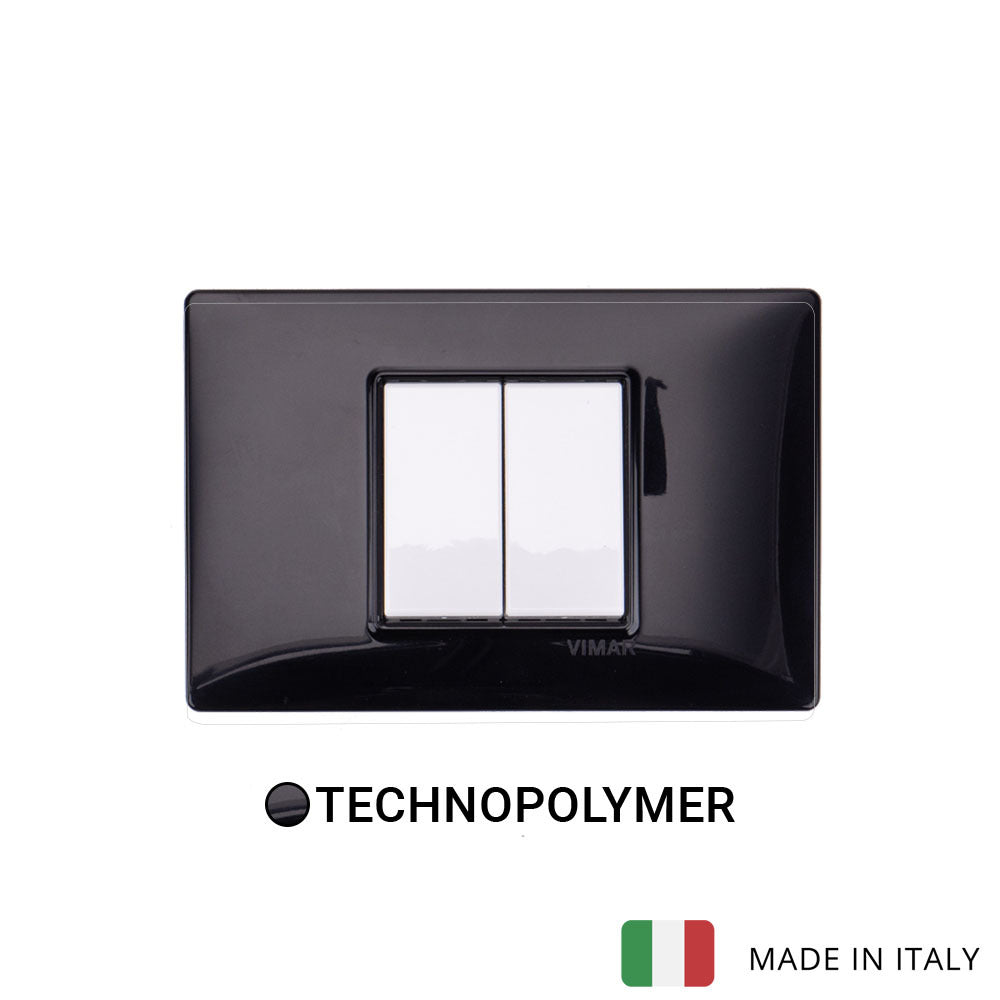

Vimar Plana Plastic 2 Gang Switch - Black - 16A

SKU Z-VM12GW-TPB

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

This kit is assembled from Vimar parts: 1 × plate 2centlM techn. (VM-14652.05); 1 × frame 2centralM +screws (VM-14612); 2 × 1P 16AX 1-way switch (VM-14001). Each part's specifications follow, with a link to its own page.

Specifications

Z-VM12G-TPBSpecifications from the official datasheet

Kit contents

Cover plate × 1: VM-14652.05 · plate 2centlM techn. black
Frame × 1: VM-14612 · frame 2centralM +screws
Installation switch × 2: VM-14001 · 1P 16AX 1-way switch white

Cover plate (VM-14652.05)

Product type: Cover frame for domestic switching devices
Number of units: 2
Mounting direction: Horizontal and vertical
Number of device inserts horizontal: 2
Number of device inserts vertical: 1
Number of modules horizontal (module system): 2
Number of modules vertical (module system): 1
With mounting grid: Yes
Suitable for subfloor installation duct box: Yes
Suitable for wall duct: Yes
Suitable for built-in installation: Yes
Label space/information surface: Yes
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Colour: Black
RAL-number (similar): 9005
Degree of protection (IP): IP00
Type of fastening: Clamp mounting
Width: 120 mm
Height: 80 mm
Depth: 9 mm
Built-in width: 120 mm
Built-in height: 80 mm
Certifications: CE marking (EU), IMQ (Italy)

Frame (VM-14612)

Product type: Holder for modular domestic switching devices
Model: Flush-mounted
Mounting method of the module inserts: Front side
Mounting direction: Horizontal and vertical
Number of modules horizontal (module system): 2
Number of modules vertical (module system): 1
With screws: Yes
Flush-mounted installation: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Certifications: CE marking (EU), IMQ (Italy)

Installation switch (VM-14001)

Product type: Installation switch
Wiring system: Switch 1-pole
Operating method: Rocker/button
Assembly arrangement: Modular device for domestic switching devices
Number of modules (module system): 1
Push button switch: Yes
Number of rockers: 1
Mounting method: Flush-mounted
Type of fastening: Engage (snap)
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Colour: White
RAL-number (similar): 9003
Label space/information surface: Yes
Lighting: Optional
Function lighting: Control and orientation
Type of lighting: LED exchangeable
Suitable for degree of protection (IP): IP40
Nominal voltage: 250 V
Rated current: 16 A
Connection type: Screwed terminal
Device width: 22.3 mm
Device height: 49 mm
Device depth: 38.4 mm
Built-in depth: 24 mm
Certifications: CE marking (EU), SASO (Saudi Arabia), IMQ (Italy), TISI (Thailand), INGCER (Chile), PSE (Japan), TSE (Turkey), RCM (Australia), CCC (China), NOM (Mexico), IQC (Argentina), WEEE Directive

Technical drawings

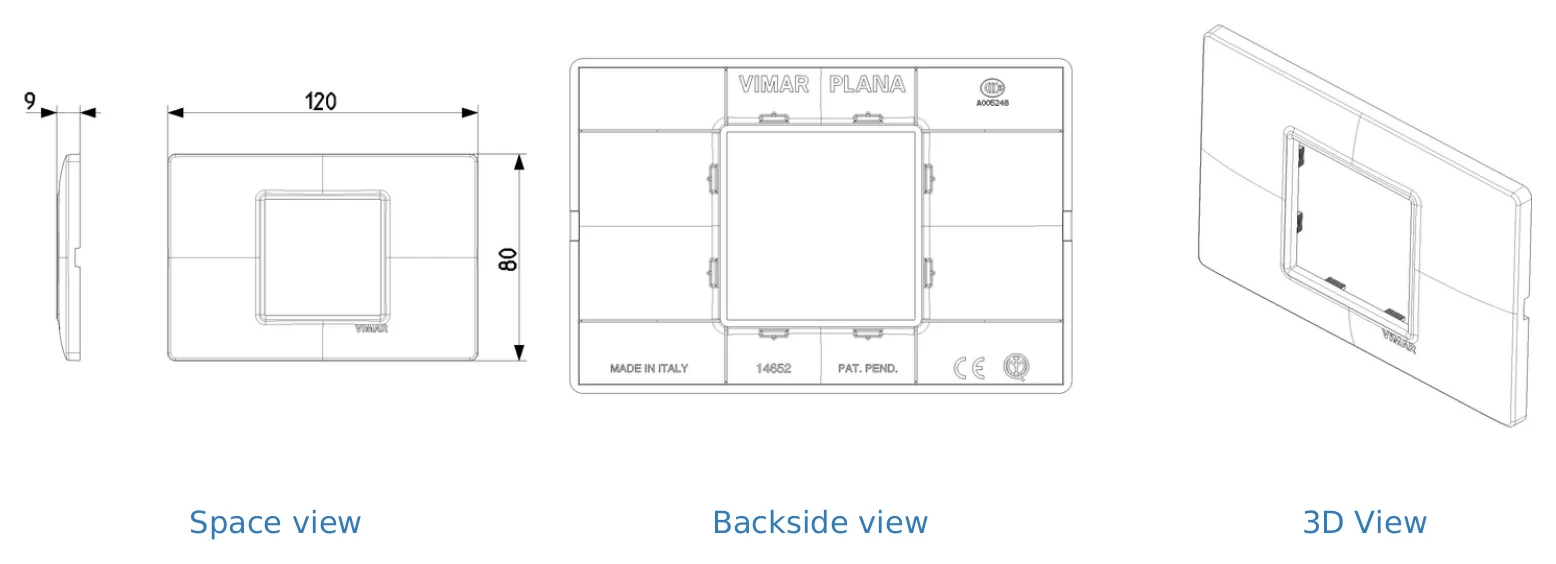

Z-VM12G-TPB Cover plate VM-14652.05: drawing — Cover plate VM-14652.05: drawing

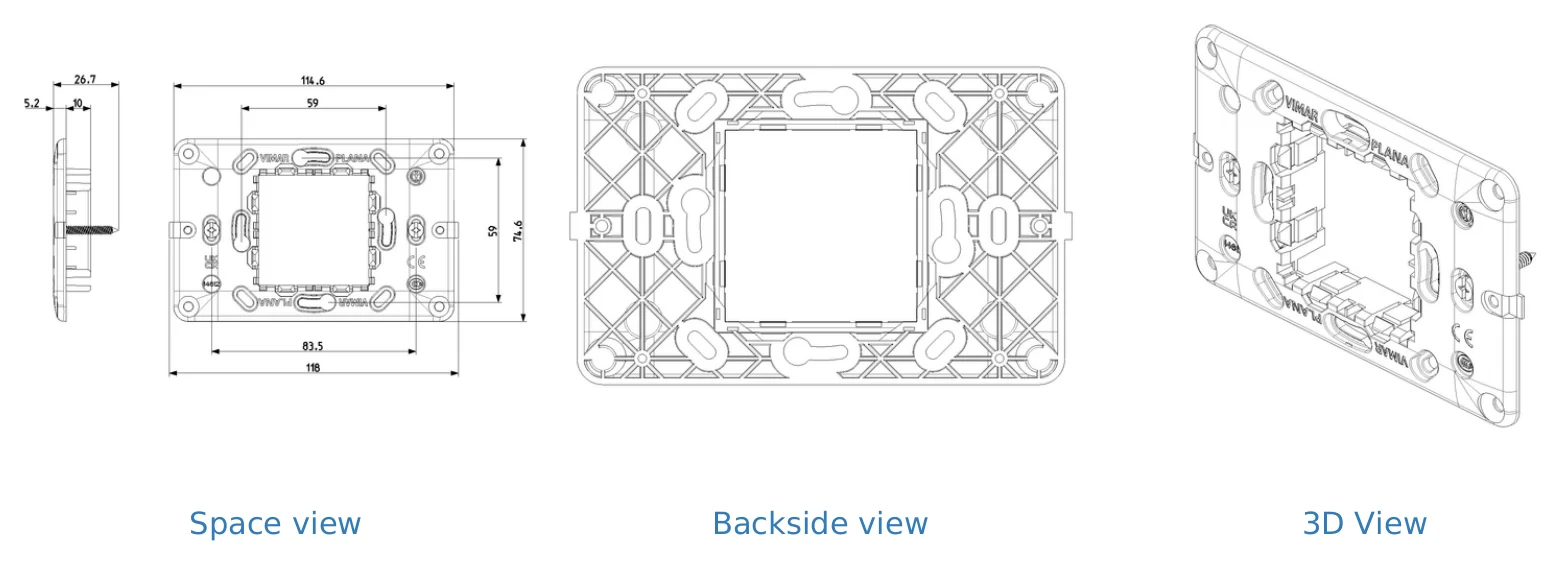

Z-VM12G-TPB Frame VM-14612: drawing — Frame VM-14612: drawing

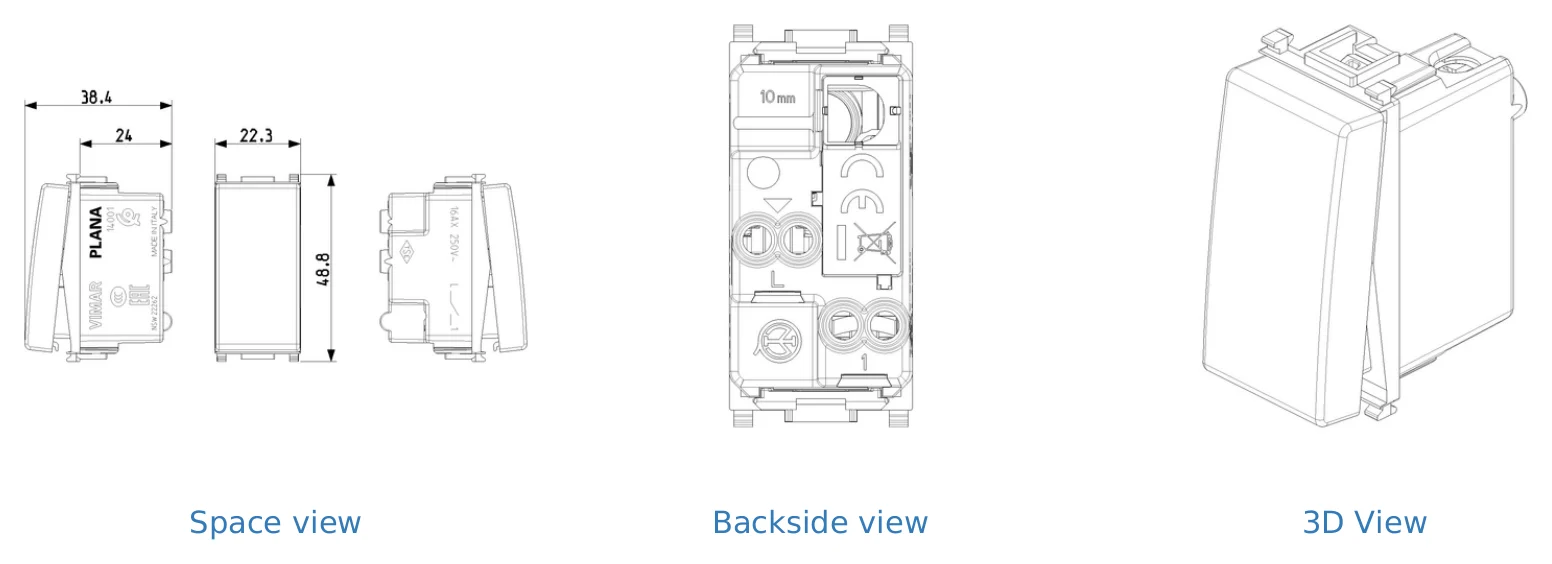

Z-VM12G-TPB Installation switch VM-14001: drawing — Installation switch VM-14001: drawing

FAQ

What is the Vimar Plana Plastic 2 Gang Switch used for?

The Vimar Plana Plastic 2 Gang Switch is a 2 gang switch from the Vimar Plana range. It is intended for projects that need a black switch finish and a 16A rated switch option.

What is the current rating of this Vimar Plana 2 gang switch?

This parent product model is rated at 16A. The rating applies to the family shown for this product page.

What are the dimensions of this switch?

The listed dimensions are 120.0000 mm wide, 80.0000 mm long, and 9.0000 mm high. The listed weight for the parent product model is 1.0000 kg.

Are there different finish options in this parent product family?

The child variants shown for this parent product are both listed with a black finish. No other finish colours are provided in the variant data for this product family.

Is this switch part of the Vimar Plana series?

Yes. The product name and categories identify this item as part of the Vimar Plana switch range.

What warranty is listed for this Vimar Plana switch?

The listed warranty period is 3.0000 year. Both child variants shown for this parent product carry the same listed warranty period.
