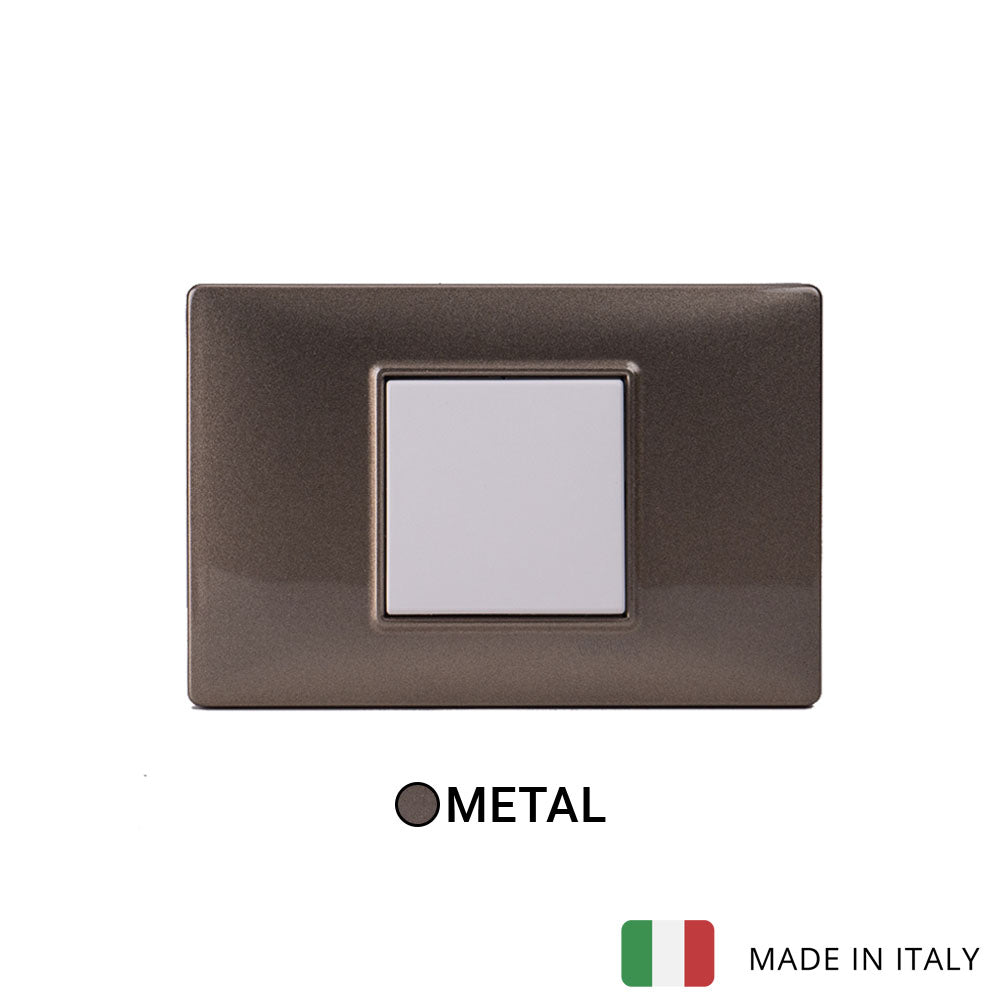

Vimar Plana Metal 1 Gang Switch - Metallic Bronze - 16A
Request a quote for one or many products — we'll reply with pricing and availability.
Notify me when it's back in stock
Overview
This kit is assembled from Vimar parts: 1 × plate 2centrM metal metallized bronze (VM-14652.70); 1 × frame 2centralM +screws (VM-14612); 1 × 1P 16AX 1-way switch 2M (VM-14001.2). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-14652.70 · plate 2centrM metal metallized bronze
- Frame × 1
- VM-14612 · frame 2centralM +screws
- Installation switch × 1
- VM-14001.2 · 1P 16AX 1-way switch 2M white
Cover plate (VM-14652.70)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 2
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 2
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Metal
- Halogen free
- Yes
- Surface protection
- Lacquered
- Surface finishing
- Glossy
- Colour
- Bronze
- RAL-number (similar)
- 1036
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 120 mm
- Height
- 80 mm
- Depth
- 9 mm
- Built-in width
- 120 mm
- Built-in height
- 80 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-14612)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy)
Installation switch (VM-14001.2)
- Product type
- Installation switch
- Wiring system
- Switch 1-pole
- Operating method
- Rocker/button
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 2
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9003
- Label space/information surface
- Yes
- Lighting
- Optional
- Function lighting
- Control and orientation
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Connection type
- Screwed terminal
- Device width
- 44.8 mm
- Device height
- 49 mm
- Device depth
- 38.4 mm
- Built-in depth
- 24 mm
- Certifications
- CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), TSE (Turkey), CCC (China), SASO (Saudi Arabia), WEEE Directive
Technical drawings
Downloads
FAQ
What is the Vimar Plana Metal 1 Gang Switch used for?
The Vimar Plana Metal 1 Gang Switch is a 1 gang switch from the Vimar Plana range. It is suited to buyers looking for a metallic bronze switch finish within the Plana series.
What is the rating of this Vimar Plana 1 gang switch?
This parent product is listed as a 16A switch. The available product data does not include additional electrical performance specifications beyond the 16A rating.
What are the dimensions of this switch?
The listed dimensions are 120.0000 mm wide, 80.0000 mm long, and 9.0000 mm high. The listed product weight is 1.0000 kg.
Do the child variants have different finishes or specifications?
The child variants shown for this parent product both use the metallic bronze finish. Based on the provided child data, they share the same listed product name and 3.0000 year warranty period.
Is this switch part of the Vimar Plana series?
Yes, this product is categorized under Vimar Plana switch and 1 gang Plana switch categories. It should be considered within the Plana series family when comparing compatible styles and finishes.
What warranty period is listed for this product?
The listed warranty period for the parent product is 3.0000 year. The child variants provided also show the same 3.0000 year warranty period.
