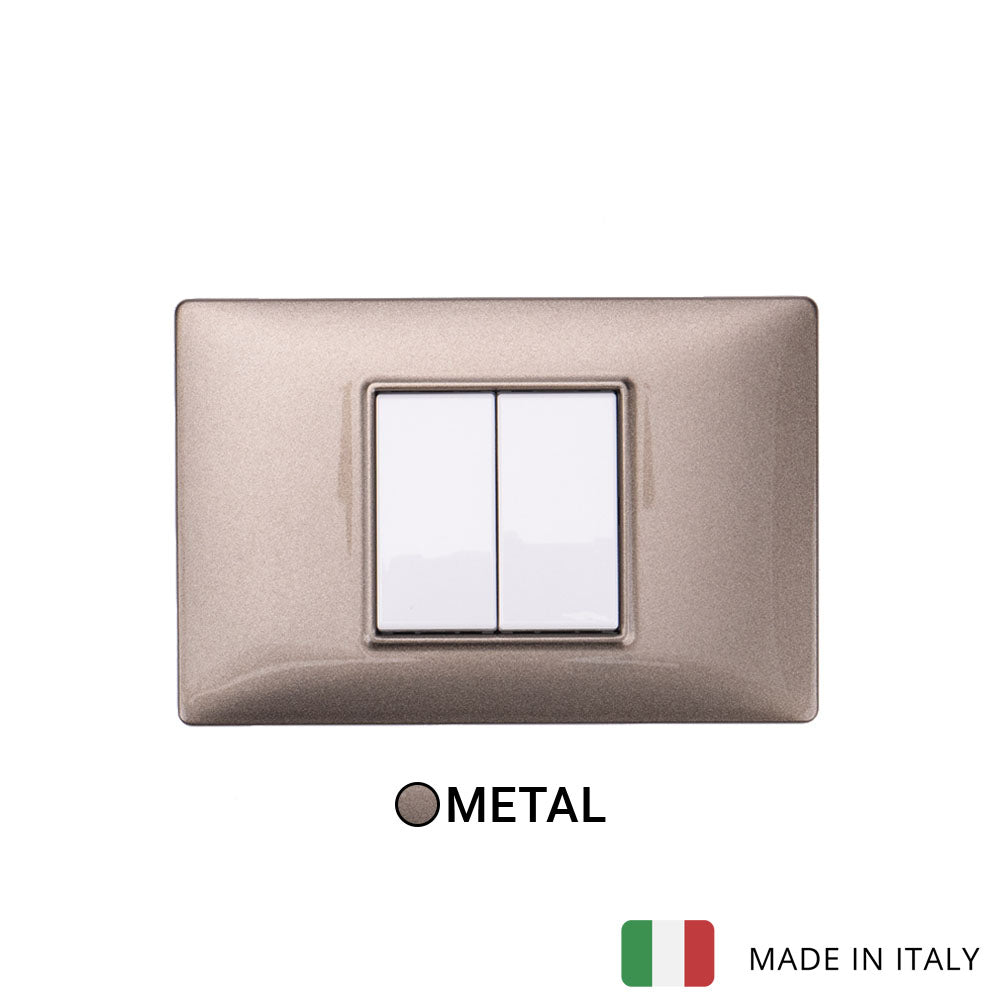

Vimar Plana Metal 2 Gang Switch - Metallic Bronze - 16A
Request a quote for one or many products — we'll reply with pricing and availability.
Notify me when it's back in stock
Overview
This kit is assembled from Vimar parts: 1 × plate 2centrM metal metallized bronze (VM-14652.70); 1 × frame 2centralM +screws (VM-14612); 2 × 1P 16AX 1-way switch 2M (VM-14001.2). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-14652.70 · plate 2centrM metal metallized bronze
- Frame × 1
- VM-14612 · frame 2centralM +screws
- Installation switch × 2
- VM-14001.2 · 1P 16AX 1-way switch 2M white
Cover plate (VM-14652.70)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 2
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 2
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Metal
- Halogen free
- Yes
- Surface protection
- Lacquered
- Surface finishing
- Glossy
- Colour
- Bronze
- RAL-number (similar)
- 1036
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 120 mm
- Height
- 80 mm
- Depth
- 9 mm
- Built-in width
- 120 mm
- Built-in height
- 80 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-14612)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy)
Installation switch (VM-14001.2)
- Product type
- Installation switch
- Wiring system
- Switch 1-pole
- Operating method
- Rocker/button
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 2
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9003
- Label space/information surface
- Yes
- Lighting
- Optional
- Function lighting
- Control and orientation
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Connection type
- Screwed terminal
- Device width
- 44.8 mm
- Device height
- 49 mm
- Device depth
- 38.4 mm
- Built-in depth
- 24 mm
- Certifications
- CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), TSE (Turkey), CCC (China), SASO (Saudi Arabia), WEEE Directive
Technical drawings
Downloads
FAQ
What is the Vimar Plana Metal 2 Gang Switch designed for?
This parent product is a Vimar Plana 2 gang switch in a metallic bronze finish. It is intended for buyers selecting a Plana series switch where a two-gang layout and 16A rating are required.
What finish does this Vimar Plana 2 gang switch have?
The listed finish colour is metallic bronze. This applies across the parent model and the child variants shown for this product family.
What are the dimensions of this switch?
The listed dimensions are 120.0000 mm wide, 80.0000 mm long, and 9.0000 mm high. The product weight is listed as 1.0000 kg.
How do the child variants compare within this parent product?
The child variants shown are Z-VM12GS-MBR and Z-VM12GW-MBR. Based on the provided data, both share the same product name, metallic bronze finish, and 3-year warranty period, with no listed difference in CCT, beam angle, power rating, driver, dimming control, or lifetime.
What warranty period is listed for this Vimar switch?
The parent product lists a 3.0000 year warranty period. The same warranty period is also shown for both child variants in this family.
