Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

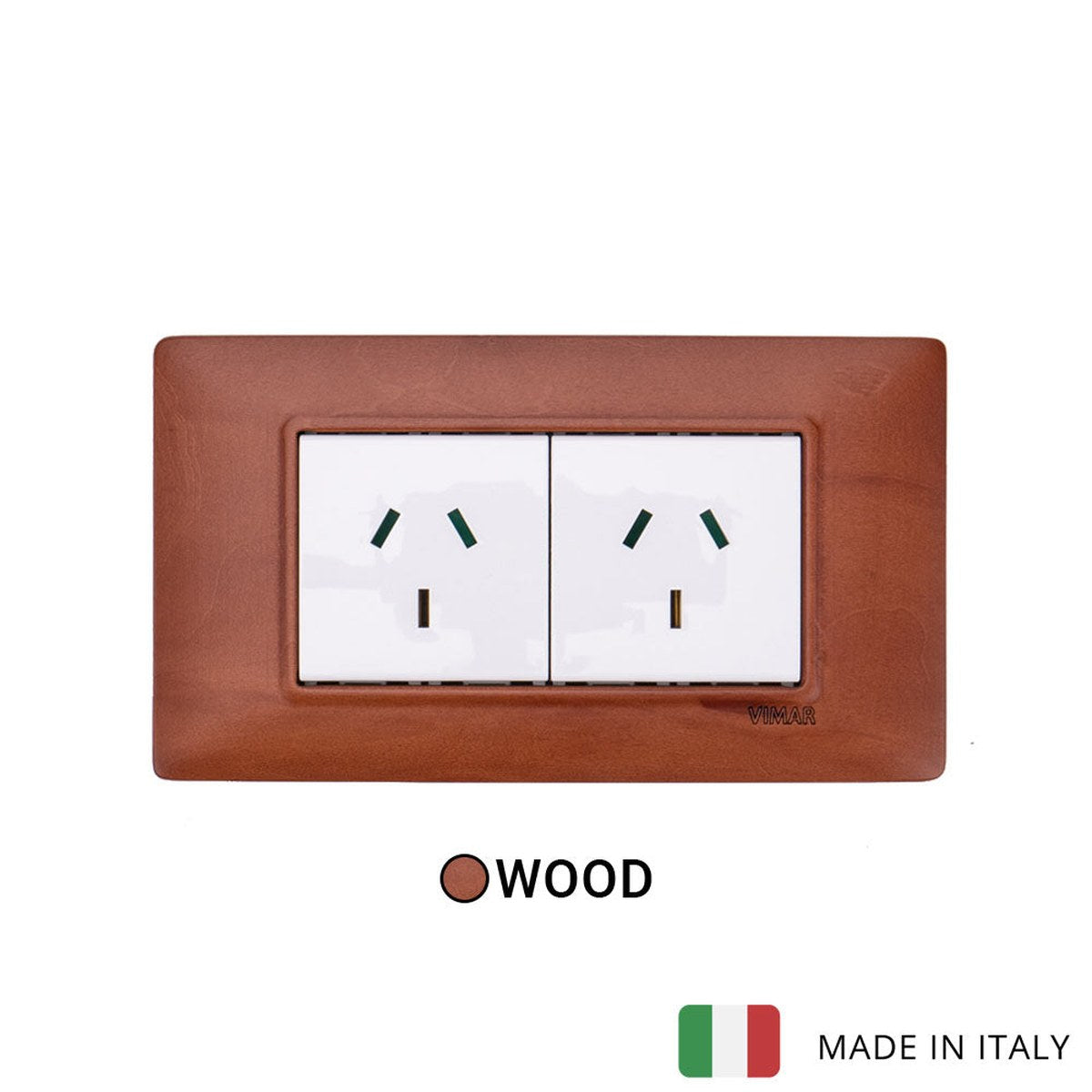

Vimar Plana Wood 2 Socket - Wood Pear Tree - 10A

SKU Z-VM12SOCW-WPT

Log in to see price Trade pricing & online ordering for account holders

Currently unavailable

Notify me when it's back in stock

Overview

This kit is assembled from Vimar parts: 1 × plate 4M wood pear-tree (VM-14654.62); 1 × frame 4M +screws (VM-14614); 2 × 2P+E 10A Australian SICURY outlet (VM-14261). Each part's specifications follow, with a link to its own page.

Specifications

Z-VM12SOC-WPTSpecifications from the official datasheet

Kit contents

Cover plate × 1: VM-14654.62 · plate 4M wood pear-tree
Frame × 1: VM-14614 · frame 4M +screws
Socket outlet × 2: VM-14261 · 2P+E 10A Australian SICURY outlet white

Cover plate (VM-14654.62)

Product type: Cover frame for domestic switching devices
Number of units: 4
Mounting direction: Horizontal and vertical
Number of device inserts horizontal: 4
Number of device inserts vertical: 1
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With mounting grid: Yes
Suitable for subfloor installation duct box: Yes
Suitable for wall duct: Yes
Suitable for built-in installation: Yes
Label space/information surface: Yes
Material: Wood
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Matt
Colour: Wood
RAL-number (similar): 8004
Degree of protection (IP): IP00
Type of fastening: Clamp mounting
Width: 142.5 mm
Height: 80 mm
Depth: 9 mm
Built-in width: 142.5 mm
Built-in height: 80 mm
Certifications: CE marking (EU), IMQ (Italy)

Frame (VM-14614)

Product type: Holder for modular domestic switching devices
Model: Flush-mounted
Mounting method of the module inserts: Front side
Mounting direction: Horizontal and vertical
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With screws: Yes
Flush-mounted installation: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Certifications: CE marking (EU), IMQ (Italy)

Socket outlet (VM-14261)

Product type: Socket outlet
Model: Australian standard AS/NZS 3112 (type I)
Number of socket outlets: 1
Number of modules (module system): 2
Connection type: Screwed terminal
With enhanced contact protection: Yes
Label space/information surface: Yes
Colour: White
RAL-number (similar): 9003
Mounting method: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Nominal current: 10 A
Nominal voltage: 250 V
Frequency: 50 - 60 HZ
Suitable for degree of protection (IP): IP20
Device width: 44.8 mm
Device height: 49 mm
Device depth: 38.7 mm
Certifications: CE marking (EU), RCM (Australia), WEEE Directive

Technical drawings

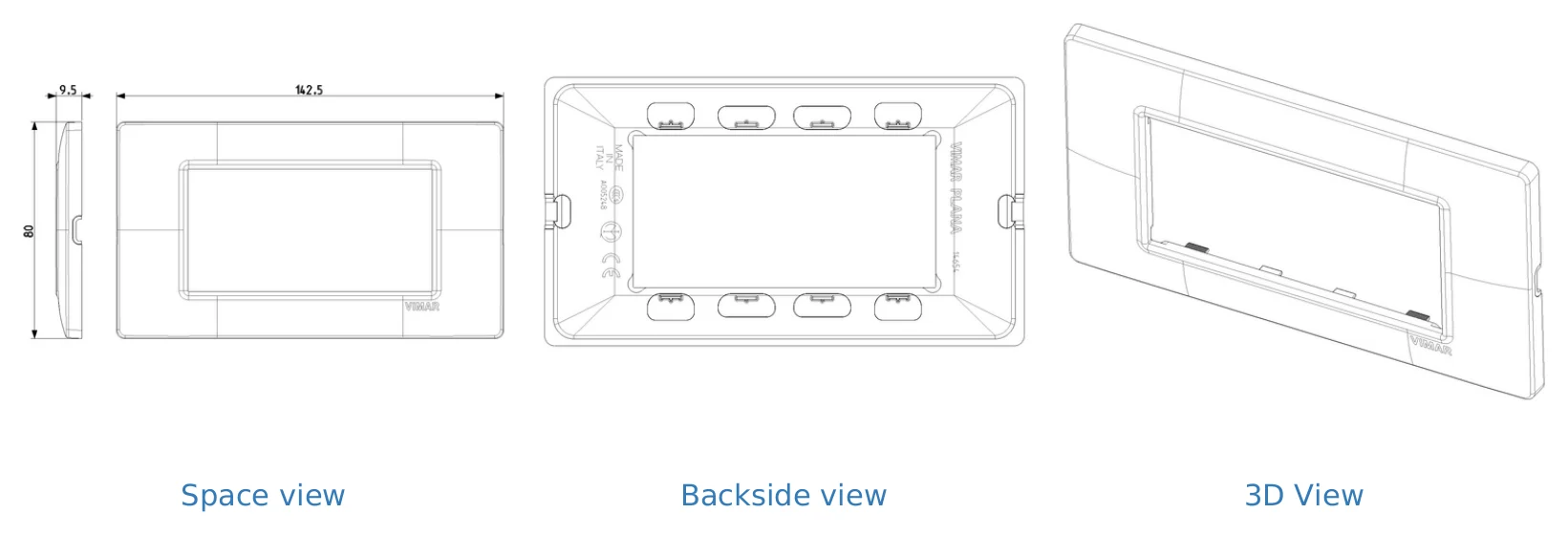

Z-VM12SOC-WPT Cover plate VM-14654.62: drawing — Cover plate VM-14654.62: drawing

Z-VM12SOC-WPT Frame VM-14614: drawing — Frame VM-14614: drawing

Z-VM12SOC-WPT Socket outlet VM-14261: drawing — Socket outlet VM-14261: drawing

FAQ

What is the Vimar Plana Wood 2 Socket - Wood Pear Tree - 10A used for?

This product is a Vimar Plana double socket in a Wood Pear Tree finish. It is suited to B2B switch and socket projects where a Plana series double socket style is required.

What finish colour does this Vimar Plana double socket have?

The parent model is supplied in the Wood Pear Tree finish colour. The listed child variants also show the same Wood Pear Tree finish, so no finish difference is indicated in the provided variant data.

Are there any specification differences between the listed child variants?

The provided child variants share the same product name, finish colour, and 3 year warranty period. No differences are provided for power rating, driver, dimming control, brightness, CCT, beam angle, CRI, cut-out size, or lifetime.

What are the dimensions of this parent product?

The listed dimensions are 139.5 mm wide, 80 mm long, and 9 mm high. The product weight is listed as 1 kg.

What warranty period is listed for this Vimar Plana product?

The warranty period shown for the parent product is 3 years. The listed child variants also show a 3 year warranty period.

Is this product part of the Vimar Plana range?

Yes, the product is categorized under Vimar Plana and Plana double socket categories. It is also grouped with light switches and sockets, B2B switch by series, and B2B switch by type categories.
