Overview

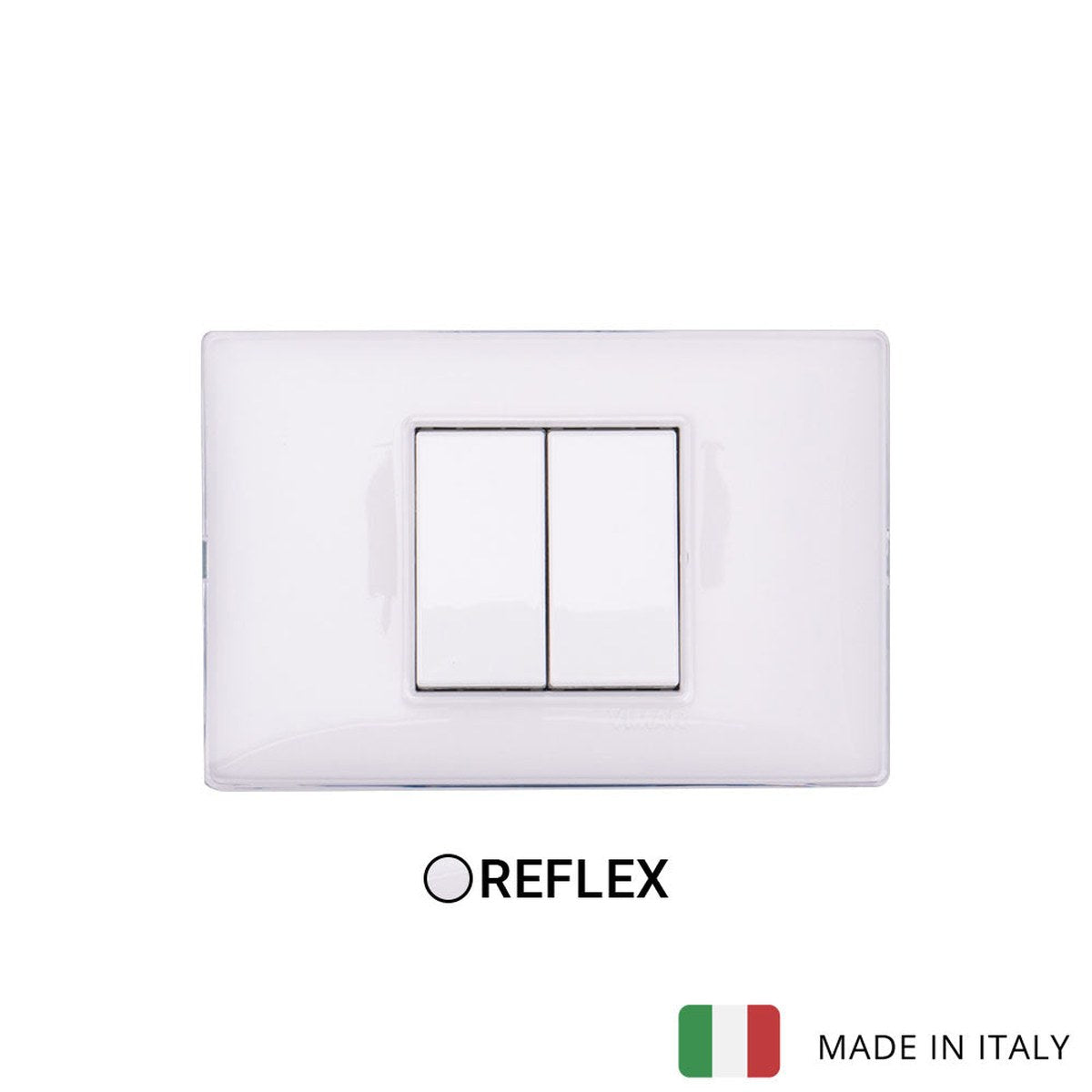

This kit is assembled from Vimar parts: 1 × plate 2centrM Reflex snow (VM-14652.41); 1 × frame 2centralM +screws (VM-14612); 2 × 1P 16AX 1-way switch 2M (VM-14001.2). Each part's specifications follow, with a link to its own page.
Specifications
Kit contents
- Cover plate × 1
- VM-14652.41 · plate 2centrM Reflex snow
- Frame × 1
- VM-14612 · frame 2centralM +screws
- Installation switch × 2
- VM-14001.2 · 1P 16AX 1-way switch 2M white
Cover plate (VM-14652.41)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 2
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 2
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Plastic
- Material quality
- Acrylic glass
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9016
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 120 mm
- Height
- 80 mm
- Depth
- 9 mm
- Built-in width
- 120 mm
- Built-in height
- 80 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-14612)
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy)
Installation switch (VM-14001.2)
- Product type
- Installation switch
- Wiring system
- Switch 1-pole
- Operating method
- Rocker/button
- Assembly arrangement
- Modular device for domestic switching devices
- Number of modules (module system)
- 2
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Flush-mounted
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9003
- Label space/information surface
- Yes
- Lighting
- Optional
- Function lighting
- Control and orientation
- Type of lighting
- LED exchangeable
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Connection type
- Screwed terminal
- Device width
- 44.8 mm
- Device height
- 49 mm
- Device depth
- 38.4 mm
- Built-in depth
- 24 mm
- Certifications
- CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), TSE (Turkey), CCC (China), SASO (Saudi Arabia), WEEE Directive
Technical drawings
Downloads
FAQ
What is the Vimar Plana Plastic 2 Gang Switch used for?
This parent product is a Vimar Plana plastic 2 gang switch intended for light switch and socket projects in the Plana series. It is suited to B2B product selection where a Reflex Snow finish and 2 gang switch format are required.
What is the current rating of this Vimar Plana 2 gang switch?
The product name specifies a 16A rating for this Vimar Plana Plastic 2 Gang Switch. No additional electrical performance specifications are provided in the parent or child product data.
What finish colour does this parent product use?
This parent product uses the Reflex Snow finish colour. Both listed child variants also show the same reflex_snow finish, so the finish is consistent across the family data provided.
Do the child variants have different specifications?
The listed child variants share the same product name, Reflex Snow finish, and 3 year warranty period. The provided child data does not show differences in CCT, beam angle, CRI, power rating, brightness, driver, dimming control, cut-out size, or lifetime.
What are the dimensions of the Vimar Plana Plastic 2 Gang Switch?
The parent product data lists the dimensions as 120.0000 mm wide, 80.0000 mm long, and 9.0000 mm high. The listed weight is 1.0000 kg.
What warranty period applies to this product family?
The parent product has a warranty period of 3.0000 years. Both listed child variants also show a 3.0000 year warranty period.
