Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar Plana Metal 2 Socket - Brushed Aluminum - 10A

SKU Z-VM12SOCW-MBA

Log in to see price Trade pricing & online ordering for account holders

Currently unavailable

Notify me when it's back in stock

Overview

This kit is assembled from Vimar parts: 1 × plate 4M brushed aluminium (VM-14654.81); 1 × frame 4M +screws (VM-14614); 2 × 2P+E 10A Australian SICURY outlet (VM-14261). Each part's specifications follow, with a link to its own page.

Specifications

Z-VM12SOC-MBASpecifications from the official datasheet

Kit contents

Cover plate × 1: VM-14654.81 · plate 4M brushed aluminium
Frame × 1: VM-14614 · frame 4M +screws
Socket outlet × 2: VM-14261 · 2P+E 10A Australian SICURY outlet white

Cover plate (VM-14654.81)

Product type: Cover frame for domestic switching devices
Number of units: 4
Mounting direction: Horizontal and vertical
Number of device inserts horizontal: 4
Number of device inserts vertical: 1
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With mounting grid: Yes
Suitable for subfloor installation duct box: Yes
Suitable for wall duct: Yes
Suitable for built-in installation: Yes
Label space/information surface: Yes
Material: Metal
Material quality: Aluminium
Halogen free: Yes
Surface protection: Anodised
Surface finishing: Matt
Colour: Aluminium
RAL-number (similar): 9006
Degree of protection (IP): IP00
Type of fastening: Clamp mounting
Width: 142.5 mm
Height: 80 mm
Depth: 9 mm
Built-in width: 142.5 mm
Built-in height: 80 mm
Certifications: CE marking (EU), IMQ (Italy)

Frame (VM-14614)

Product type: Holder for modular domestic switching devices
Model: Flush-mounted
Mounting method of the module inserts: Front side
Mounting direction: Horizontal and vertical
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With screws: Yes
Flush-mounted installation: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Certifications: CE marking (EU), IMQ (Italy)

Socket outlet (VM-14261)

Product type: Socket outlet
Model: Australian standard AS/NZS 3112 (type I)
Number of socket outlets: 1
Number of modules (module system): 2
Connection type: Screwed terminal
With enhanced contact protection: Yes
Label space/information surface: Yes
Colour: White
RAL-number (similar): 9003
Mounting method: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Nominal current: 10 A
Nominal voltage: 250 V
Frequency: 50 - 60 HZ
Suitable for degree of protection (IP): IP20
Device width: 44.8 mm
Device height: 49 mm
Device depth: 38.7 mm
Certifications: CE marking (EU), RCM (Australia), WEEE Directive

Technical drawings

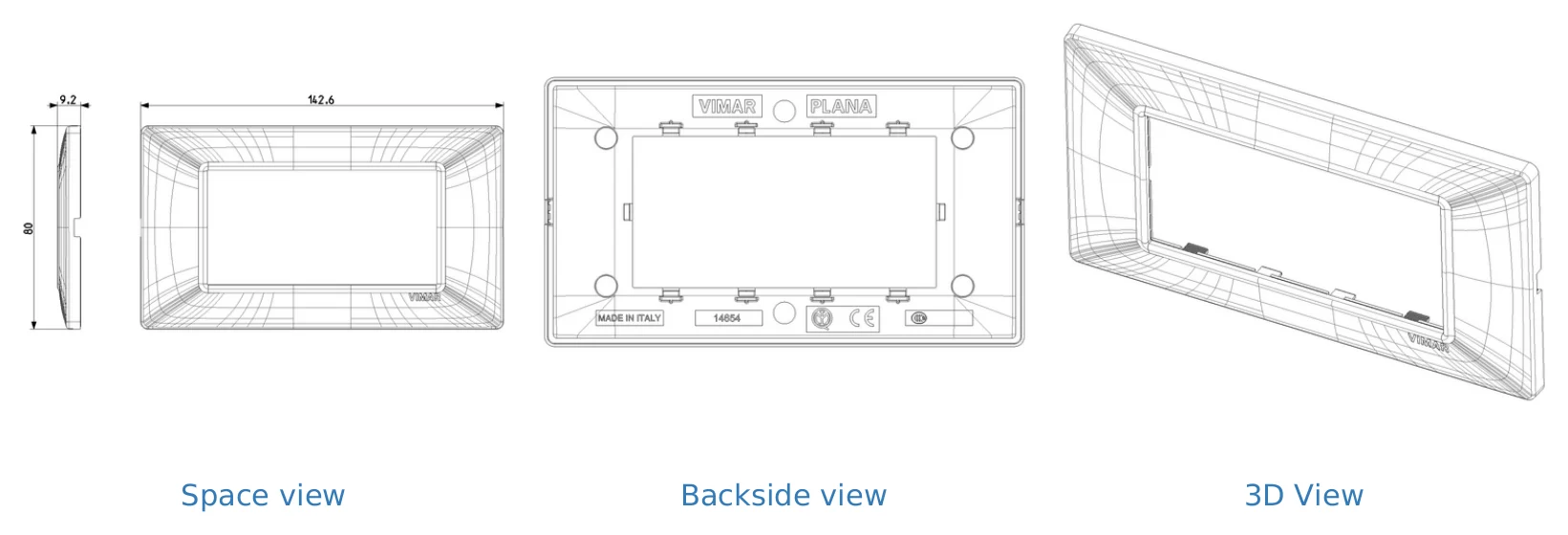

Z-VM12SOC-MBA Cover plate VM-14654.81: drawing — Cover plate VM-14654.81: drawing

Z-VM12SOC-MBA Frame VM-14614: drawing — Frame VM-14614: drawing

Z-VM12SOC-MBA Socket outlet VM-14261: drawing — Socket outlet VM-14261: drawing

FAQ

What product does Z-VM12SOC-MBA refer to?

Z-VM12SOC-MBA is the parent product code for the Vimar Plana Metal 2 Socket in brushed aluminum. It is listed as a 10A double socket model within the Vimar Plana switch and socket range.

What finish is this Vimar Plana double socket available in?

This parent product is specified with a brushed aluminum finish. The supplied child variant data also shows brushed aluminum as the finish across the listed variants.

What are the dimensions of the Vimar Plana Metal 2 Socket?

The listed dimensions are 139.5 mm wide, 80 mm long, and 9 mm high. The product weight is specified as 1 kg.

How long is the warranty for this Vimar Plana socket?

The warranty period listed for this parent product is 3 years. The supplied child variants also show the same 3-year warranty period.

Are the listed child variants different in finish or warranty?

Based on the supplied child variant data, both listed variants have the same product name, brushed aluminum finish, and 3-year warranty. No technical distinction such as power rating, CCT, beam angle, or dimming control is provided for these variants.

Is this product part of the Vimar Plana range?

Yes, the parent product is categorized under Vimar Plana switch and double socket categories. It is intended to be presented as part of the Plana series selection rather than as a standalone unrelated socket.
