Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar Plana Plastic 2 Socket - Black - 10A

SKU Z-VM12SOCW-TPB

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

This kit is assembled from Vimar parts: 1 × plate 4M techn. (VM-14654.05); 1 × frame 4M +screws (VM-14614); 2 × 2P+E 10A Australian SICURY outlet (VM-14261). Each part's specifications follow, with a link to its own page.

Specifications

Z-VM12SOC-TPBSpecifications from the official datasheet

Kit contents

Cover plate × 1: VM-14654.05 · plate 4M techn. black
Frame × 1: VM-14614 · frame 4M +screws
Socket outlet × 2: VM-14261 · 2P+E 10A Australian SICURY outlet white

Cover plate (VM-14654.05)

Product type: Cover frame for domestic switching devices
Number of units: 4
Mounting direction: Horizontal and vertical
Number of device inserts horizontal: 4
Number of device inserts vertical: 1
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With mounting grid: Yes
Suitable for subfloor installation duct box: Yes
Suitable for wall duct: Yes
Suitable for built-in installation: Yes
Label space/information surface: Yes
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Colour: Black
RAL-number (similar): 9005
Degree of protection (IP): IP00
Type of fastening: Clamp mounting
Width: 142.5 mm
Height: 80 mm
Depth: 9 mm
Built-in width: 142.5 mm
Built-in height: 80 mm
Certifications: CE marking (EU), IMQ (Italy)

Frame (VM-14614)

Product type: Holder for modular domestic switching devices
Model: Flush-mounted
Mounting method of the module inserts: Front side
Mounting direction: Horizontal and vertical
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With screws: Yes
Flush-mounted installation: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Certifications: CE marking (EU), IMQ (Italy)

Socket outlet (VM-14261)

Product type: Socket outlet
Model: Australian standard AS/NZS 3112 (type I)
Number of socket outlets: 1
Number of modules (module system): 2
Connection type: Screwed terminal
With enhanced contact protection: Yes
Label space/information surface: Yes
Colour: White
RAL-number (similar): 9003
Mounting method: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Nominal current: 10 A
Nominal voltage: 250 V
Frequency: 50 - 60 HZ
Suitable for degree of protection (IP): IP20
Device width: 44.8 mm
Device height: 49 mm
Device depth: 38.7 mm
Certifications: CE marking (EU), RCM (Australia), WEEE Directive

Technical drawings

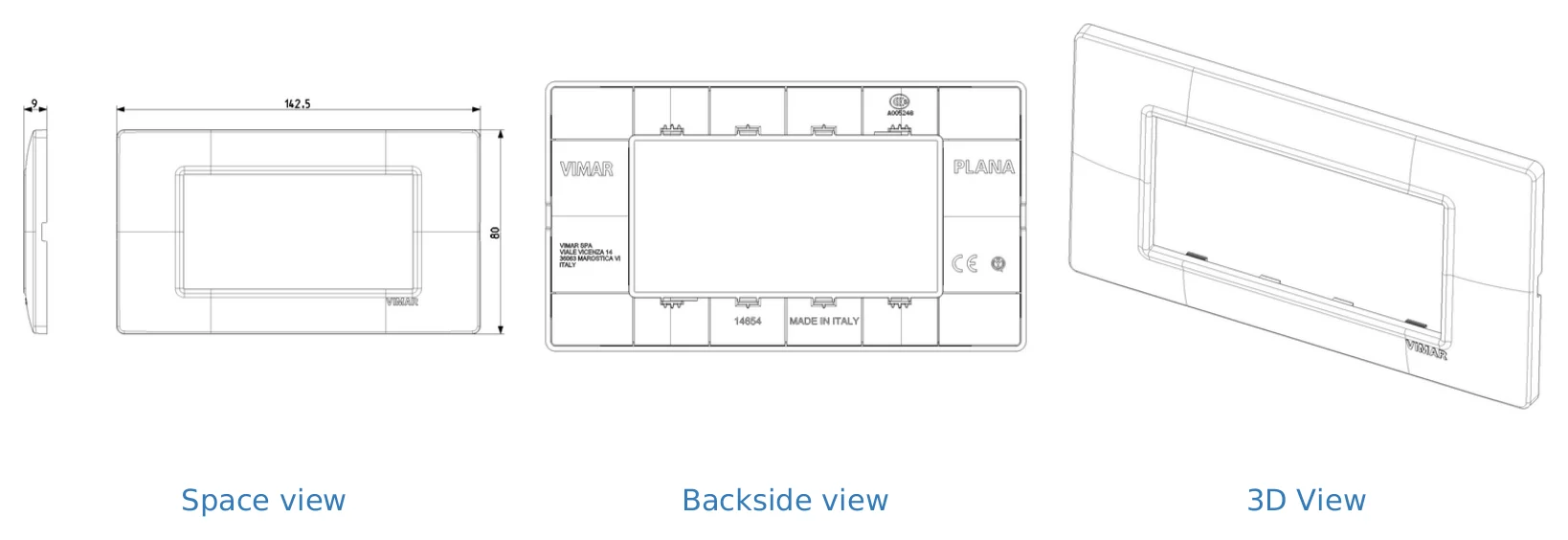

Z-VM12SOC-TPB Cover plate VM-14654.05: drawing — Cover plate VM-14654.05: drawing

Z-VM12SOC-TPB Frame VM-14614: drawing — Frame VM-14614: drawing

Z-VM12SOC-TPB Socket outlet VM-14261: drawing — Socket outlet VM-14261: drawing

FAQ

What is the Vimar Plana Plastic 2 Socket used for?

The Vimar Plana Plastic 2 Socket is a black double socket product in the Vimar Plana range. It is suited to B2B projects where a matching Plana black 2-socket unit with a 10A rating is required.

Is this socket part of the Vimar Plana series?

Yes. The parent model is identified as a Vimar Plana product and is listed under Plana socket and switch categories. It is intended for projects specifying the Vimar Plana range.

What are the dimensions of this Vimar Plana 2 socket?

The listed dimensions are 139.5 mm wide, 80 mm long, and 9 mm high. The listed product weight is 1 kg.

Are the child variants different in colour or warranty?

The available child variants shown for this parent model both list the same black finish and the same 3-year warranty period. No other performance differences are provided in the variant data.

What warranty period does this Vimar Plana socket include?

This parent product is listed with a 3-year warranty period. The same 3-year warranty is also shown across the child variants provided.
