Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar Plana Plastic 2 Socket - Reflex Ash - 10A

SKU Z-VM12SOCW-RASH

Log in to see price Trade pricing & online ordering for account holders

Currently unavailable

Notify me when it's back in stock

Overview

This kit is assembled from Vimar parts: 1 × plate 4M Reflex ash (VM-14654.40); 1 × frame 4M +screws (VM-14614); 2 × 2P+E 10A Australian SICURY outlet (VM-14261). Each part's specifications follow, with a link to its own page.

Specifications

Z-VM12SOC-RASHSpecifications from the official datasheet

Kit contents

Cover plate × 1: VM-14654.40 · plate 4M Reflex ash
Frame × 1: VM-14614 · frame 4M +screws
Socket outlet × 2: VM-14261 · 2P+E 10A Australian SICURY outlet white

Cover plate (VM-14654.40)

Product type: Cover frame for domestic switching devices
Number of units: 4
Mounting direction: Horizontal and vertical
Number of device inserts horizontal: 4
Number of device inserts vertical: 1
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With mounting grid: Yes
Suitable for subfloor installation duct box: Yes
Suitable for wall duct: Yes
Suitable for built-in installation: Yes
Label space/information surface: Yes
Material: Plastic
Material quality: Acrylic glass
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Colour: Grey
RAL-number (similar): 7023
Degree of protection (IP): IP00
Type of fastening: Clamp mounting
Width: 142.5 mm
Height: 80 mm
Depth: 9 mm
Built-in width: 142.5 mm
Built-in height: 80 mm
Certifications: CE marking (EU), IMQ (Italy)

Frame (VM-14614)

Product type: Holder for modular domestic switching devices
Model: Flush-mounted
Mounting method of the module inserts: Front side
Mounting direction: Horizontal and vertical
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With screws: Yes
Flush-mounted installation: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Certifications: CE marking (EU), IMQ (Italy)

Socket outlet (VM-14261)

Product type: Socket outlet
Model: Australian standard AS/NZS 3112 (type I)
Number of socket outlets: 1
Number of modules (module system): 2
Connection type: Screwed terminal
With enhanced contact protection: Yes
Label space/information surface: Yes
Colour: White
RAL-number (similar): 9003
Mounting method: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Nominal current: 10 A
Nominal voltage: 250 V
Frequency: 50 - 60 HZ
Suitable for degree of protection (IP): IP20
Device width: 44.8 mm
Device height: 49 mm
Device depth: 38.7 mm
Certifications: CE marking (EU), RCM (Australia), WEEE Directive

Technical drawings

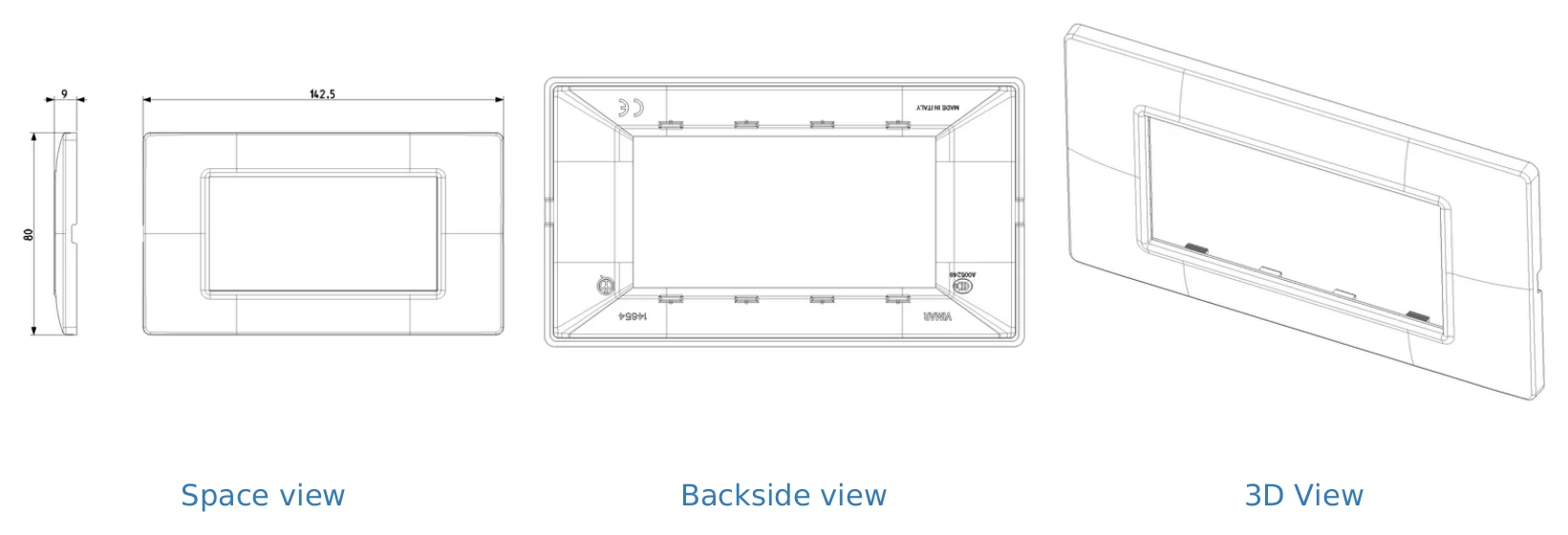

Z-VM12SOC-RASH Cover plate VM-14654.40: drawing — Cover plate VM-14654.40: drawing

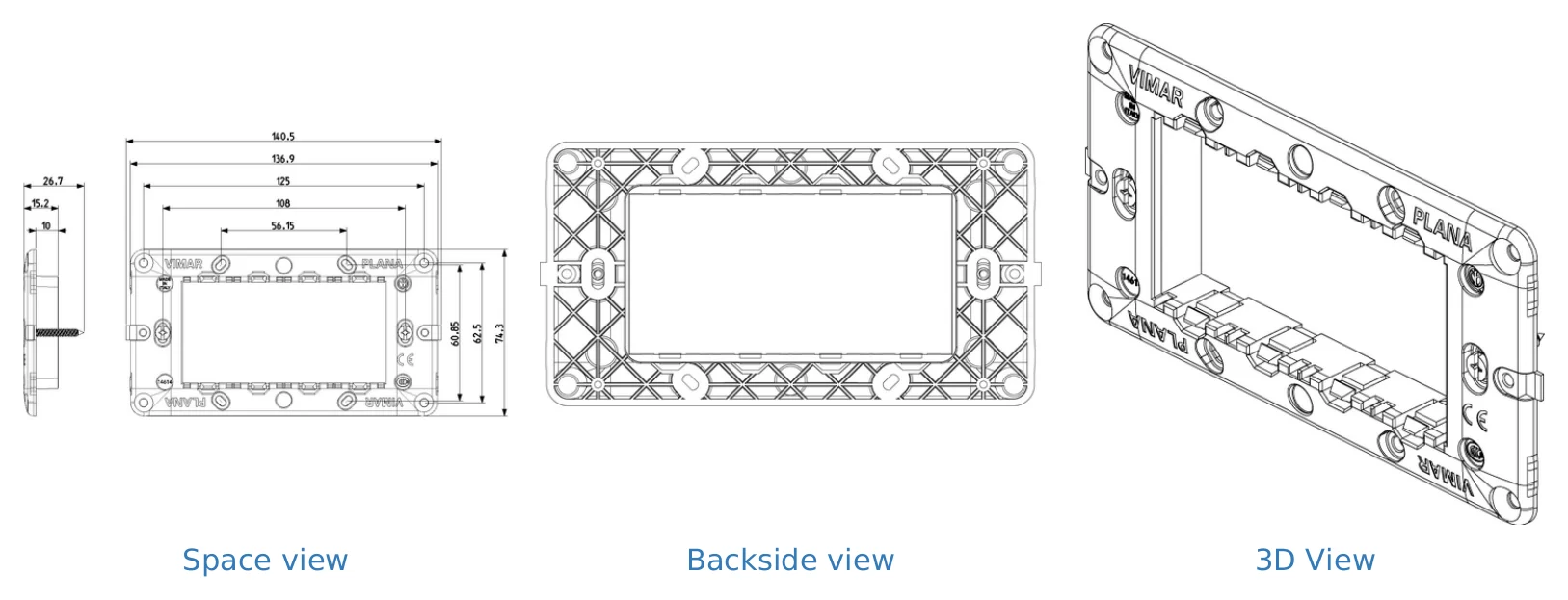

Z-VM12SOC-RASH Frame VM-14614: drawing — Frame VM-14614: drawing

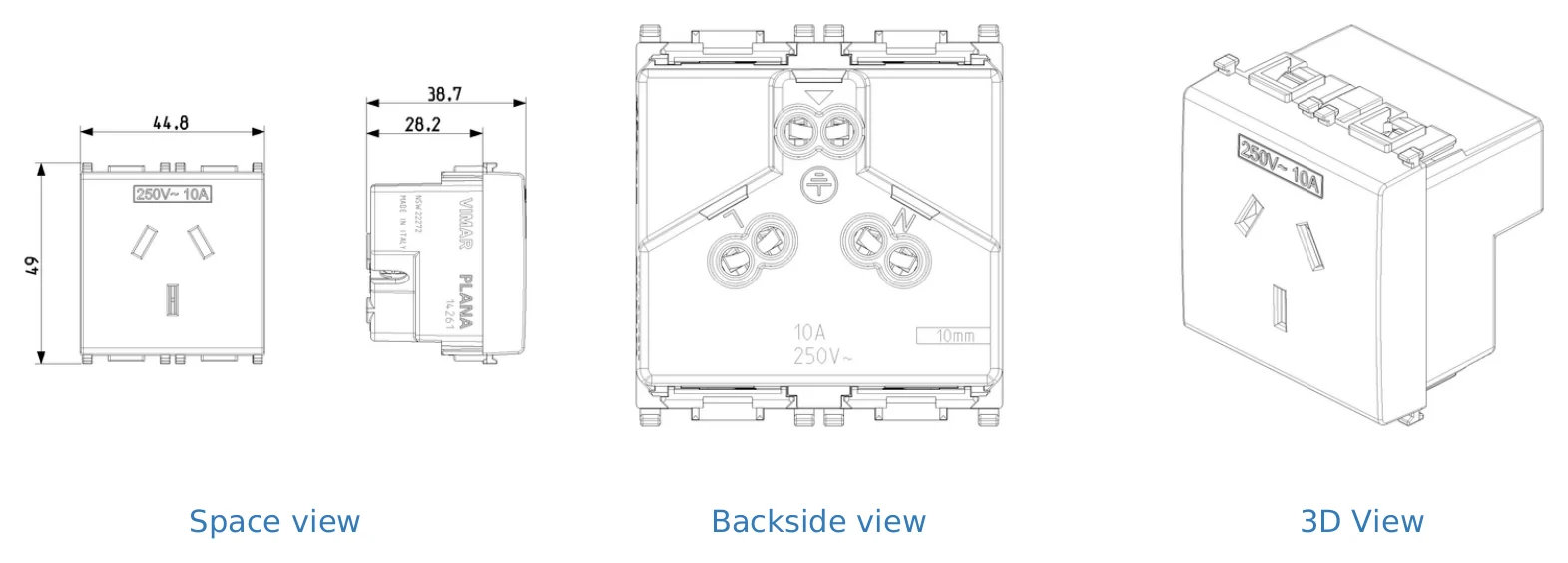

Z-VM12SOC-RASH Socket outlet VM-14261: drawing — Socket outlet VM-14261: drawing

FAQ

What is the Vimar Plana Plastic 2 Socket in Reflex Ash used for?

This parent product is a Vimar Plana double socket in a Reflex Ash finish. It is suited to product pages and B2B selection where buyers are looking for a Plana-series two-socket option with a 10A rating.

What finish colour does this Vimar Plana double socket have?

The listed finish colour is Reflex Ash. The child variants supplied for this parent product both show the same Reflex Ash finish, so the parent FAQ should treat the finish as consistent across the family data provided.

What are the dimensions of the Vimar Plana Plastic 2 Socket?

The listed dimensions are 139.5 mm wide, 80 mm long, and 9 mm high. The listed weight for the parent product is 1 kg.

How does this parent model compare across its listed child variants?

The supplied child variants use SKUs Z-VM12SOCS-RASH and Z-VM12SOCW-RASH. In the provided data, both variants share the same product name, Reflex Ash finish, and 3-year warranty period, and no additional performance differences are shown.

What warranty period is listed for this Vimar Plana double socket?

The listed warranty period is 3 years. The same 3-year warranty is shown for both child variants in the supplied data.

Is this product part of the Vimar Plana range?

Yes. The parent product name and categories identify it as part of the Vimar Plana range, including Plana double socket and Plana switch/socket categories.
