Vimar Plana Plastic 2 Socket - White - 10A

SKU Z-VM12SOCW-TPW

Log in to see price Trade pricing & online ordering for account holders

Currently unavailable

Notify me when it's back in stock

Overview

This kit is assembled from Vimar parts: 1 × plate 4M techn. (VM-14654.01); 1 × frame 4M +screws (VM-14614); 2 × 2P+E 10A Australian SICURY outlet (VM-14261). Each part's specifications follow, with a link to its own page.

Specifications

Z-VM12SOC-TPWSpecifications from the official datasheet

Kit contents

Cover plate × 1: VM-14654.01 · plate 4M techn. white
Frame × 1: VM-14614 · frame 4M +screws
Socket outlet × 2: VM-14261 · 2P+E 10A Australian SICURY outlet white

Cover plate (VM-14654.01)

Product type: Cover frame for domestic switching devices
Number of units: 4
Mounting direction: Horizontal and vertical
Number of device inserts horizontal: 4
Number of device inserts vertical: 1
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With mounting grid: Yes
Suitable for subfloor installation duct box: Yes
Suitable for wall duct: Yes
Suitable for built-in installation: Yes
Label space/information surface: Yes
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Colour: White
RAL-number (similar): 9016
Degree of protection (IP): IP00
Type of fastening: Clamp mounting
Width: 142.5 mm
Height: 80 mm
Depth: 9 mm
Built-in width: 142.5 mm
Built-in height: 80 mm
Certifications: CE marking (EU), IMQ (Italy)

Frame (VM-14614)

Product type: Holder for modular domestic switching devices
Model: Flush-mounted
Mounting method of the module inserts: Front side
Mounting direction: Horizontal and vertical
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With screws: Yes
Flush-mounted installation: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Certifications: CE marking (EU), IMQ (Italy)

Socket outlet (VM-14261)

Product type: Socket outlet
Model: Australian standard AS/NZS 3112 (type I)
Number of socket outlets: 1
Number of modules (module system): 2
Connection type: Screwed terminal
With enhanced contact protection: Yes
Label space/information surface: Yes
Colour: White
RAL-number (similar): 9003
Mounting method: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Nominal current: 10 A
Nominal voltage: 250 V
Frequency: 50 - 60 HZ
Suitable for degree of protection (IP): IP20
Device width: 44.8 mm
Device height: 49 mm
Device depth: 38.7 mm
Certifications: CE marking (EU), RCM (Australia), WEEE Directive

Technical drawings

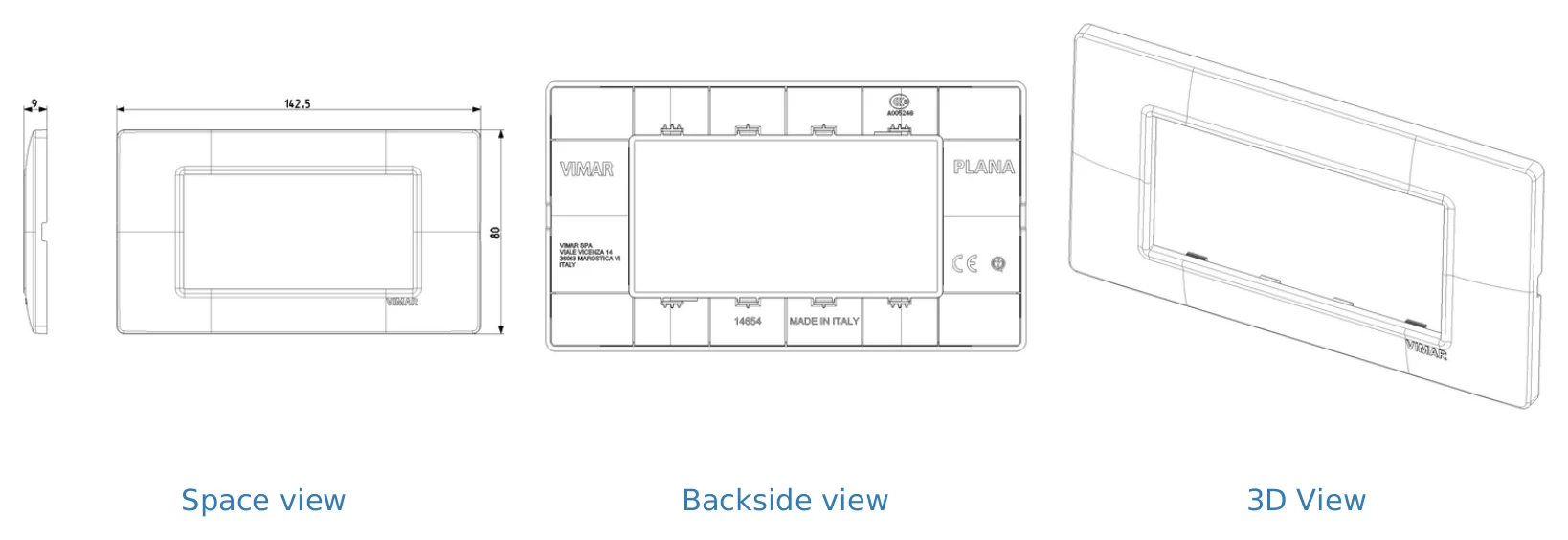

Z-VM12SOC-TPW Cover plate VM-14654.01: drawing — Cover plate VM-14654.01: drawing

Z-VM12SOC-TPW Frame VM-14614: drawing — Frame VM-14614: drawing

Z-VM12SOC-TPW Socket outlet VM-14261: drawing — Socket outlet VM-14261: drawing

FAQ

What is the Vimar Plana Plastic 2 Socket used for?

The Vimar Plana Plastic 2 Socket is a white double socket from the Vimar Plana range. It is suited to B2B product selections where a Plana-series double socket is required and the listed 10A rating matches the project specification.

What colour and finish is this Vimar Plana double socket?

This parent product is supplied in white. The listed child variants also show the same white finish, so the family data does not indicate a colour choice within this parent model.

Are there different variants of this parent product?

Yes, the parent product includes two child SKUs: Z-VM12SOCS-TPW and Z-VM12SOCW-TPW. The provided variant data does not show differences in finish colour, warranty, or other technical attributes, so they should only be compared by confirmed purchasing or catalog requirements.

What are the dimensions of this Vimar Plana 2 Socket?

The listed dimensions are 139.5 mm wide, 80 mm long, and 9 mm high. The product weight is listed as 1 kg.

What warranty is listed for this product family?

The parent product has a listed warranty period of 3 years. Both provided child variants also show a 3-year warranty period.
