Vimar

Vimar Plana 1P 16AX 1-Way Switch 2M White

1P 16A 2M White
SKU VM-14001.2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14001.2 is Vimar PLANA 14001.2, 1P 16AX 1-way switch 2M white.

1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, white - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669- 1:2017)

Specifications

VM-14001.2Specifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Switch 1-pole
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
44.8 mm
Device height
49 mm
Device depth
38.4 mm
Built-in depth
24 mm

Packaging

EAN
8007352119857
Packed size (cm)
5.1 × 4.3 × 5.3
Packed weight
37 g
Pieces per box
20

Certifications

Certifications
CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), TSE (Turkey), CCC (China), SASO (Saudi Arabia), WEEE Directive

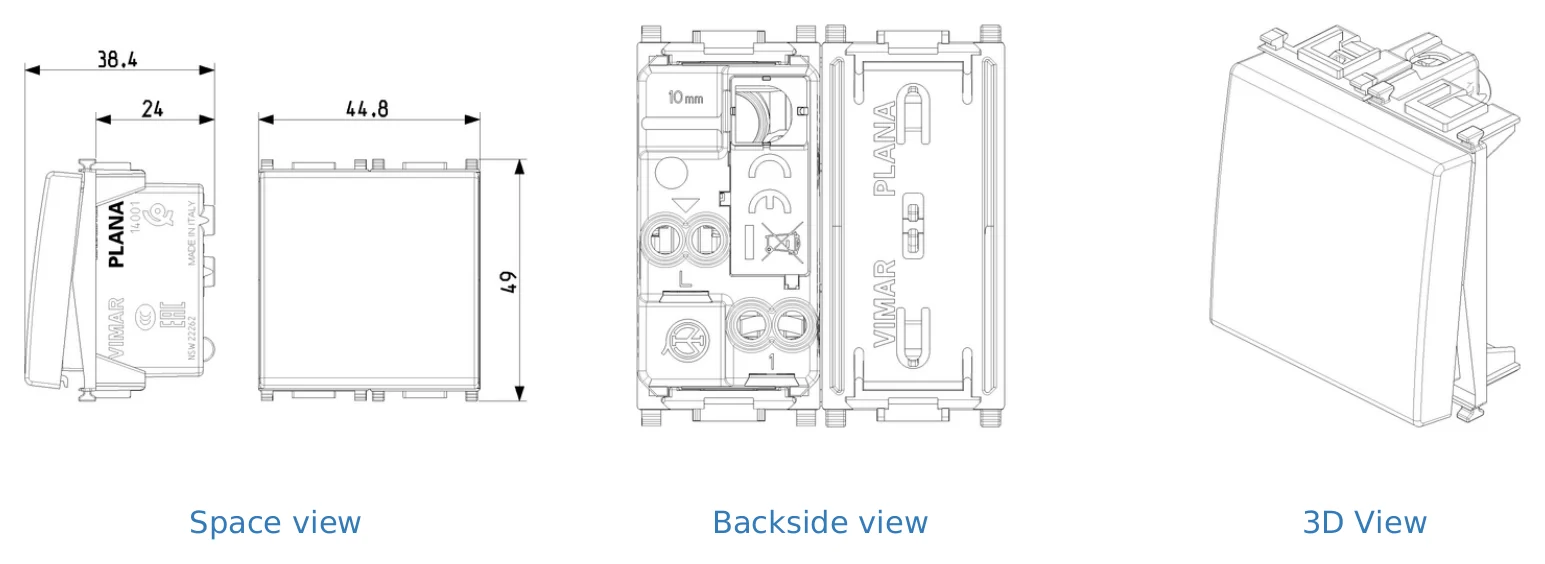

Technical drawings

VM-14001.2 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana 1P 16AX 1-Way Switch 2M White used for?

This model is a 1-way switch module designed for switching a single circuit on and off in Plana-based electrical installations. It is suited to projects that need a clean white finish and a matching module format within the Vimar Plana range.

What are the key electrical specifications of this switch?

The Vimar Plana 1P switch is rated at 16AX. In the provided product data, the rated current is listed as 16.0000 A, making it appropriate for applications that require that current rating.

Is this switch compatible with the Vimar Plana series?

Yes. This product is identified as a Plana switch module and is intended for use within the Vimar Plana range. Buyers matching existing Plana white devices or planning a consistent Plana specification should consider this model.

What finish and appearance does this model have?

This version comes in a white finish. It is part of the Vimar Plana line, which emphasizes a modern, linear design intended to suit a wide range of interior environments.

What environmental conditions is this switch rated for?

The specified operating temperature range is from -20.0000 °C to 50.0000 °C. That makes it suitable for use in environments that stay within that temperature window.

How heavy is the Vimar Plana 1P 16AX 1-Way Switch 2M White?

The listed product weight is 0.0370 kg. This compact weight can be useful for project documentation, material schedules, and shipping estimates.

What warranty period is provided for this switch?

The product data lists a warranty period of 3.0000 years. For procurement and project planning, this gives buyers a clear reference for the stated coverage period on this model.
