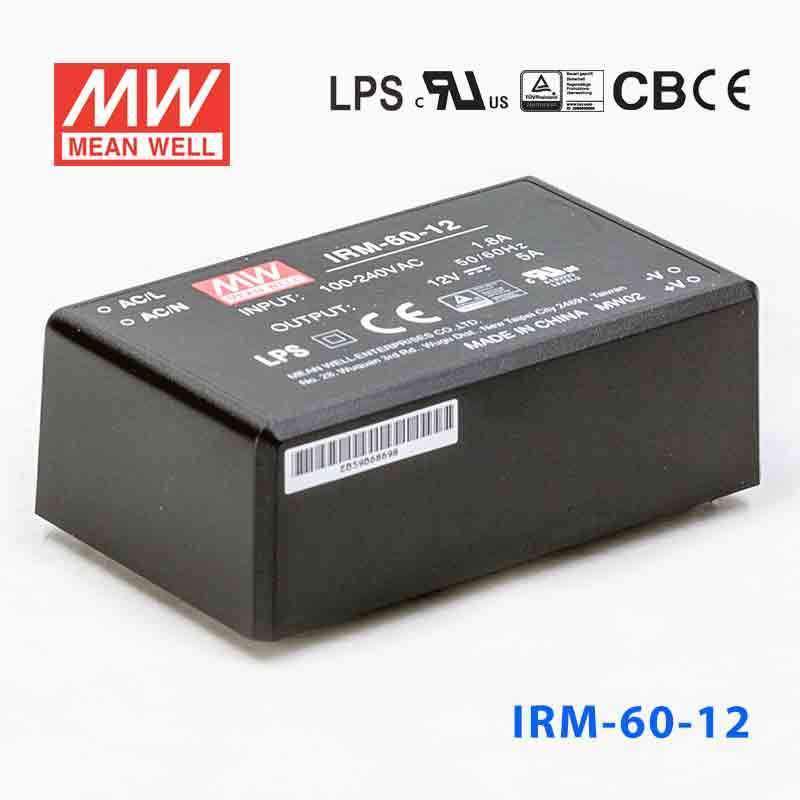

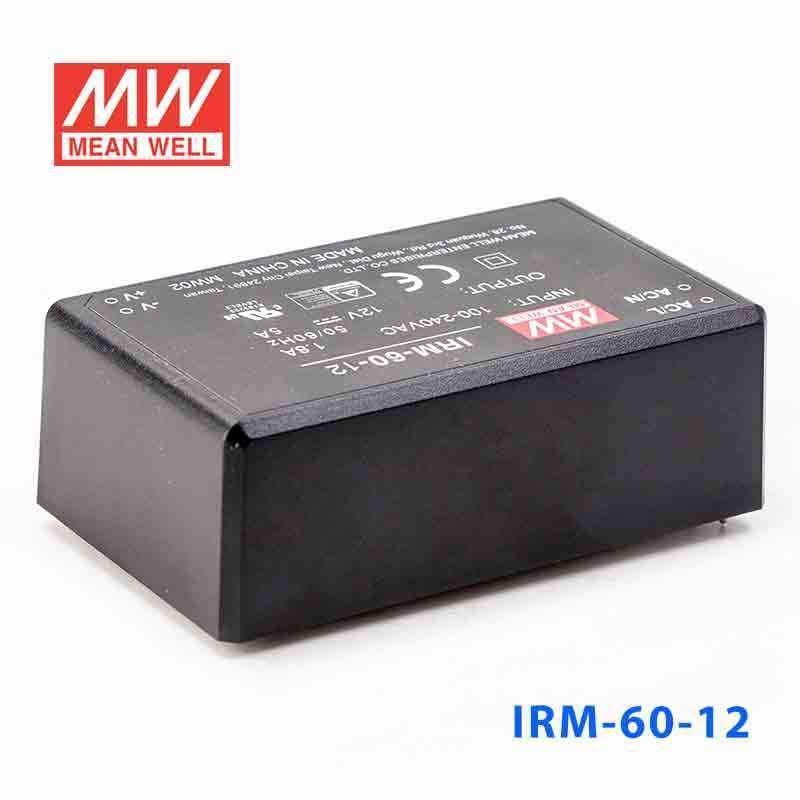

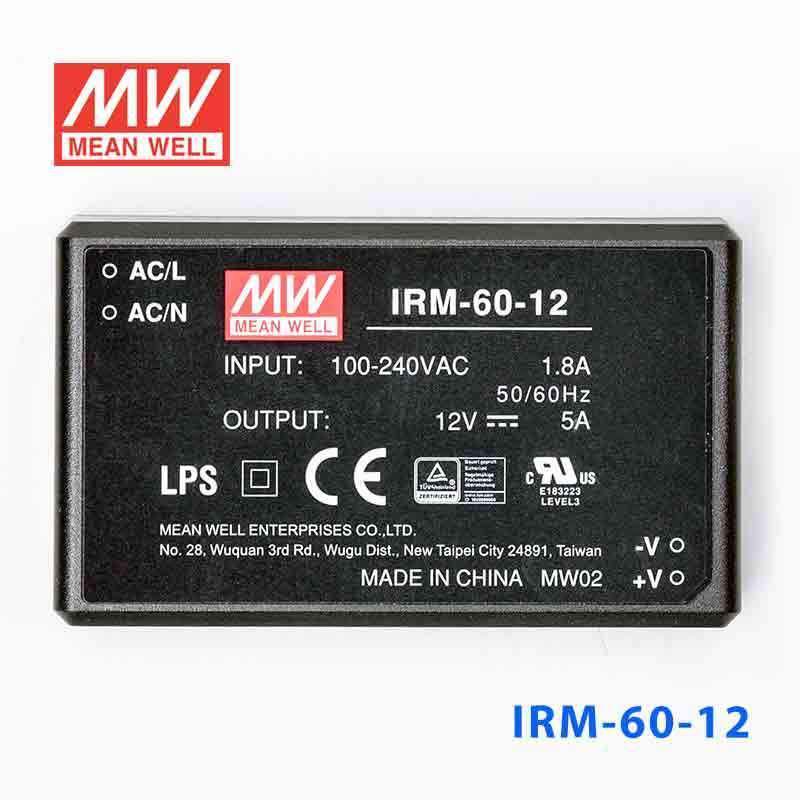

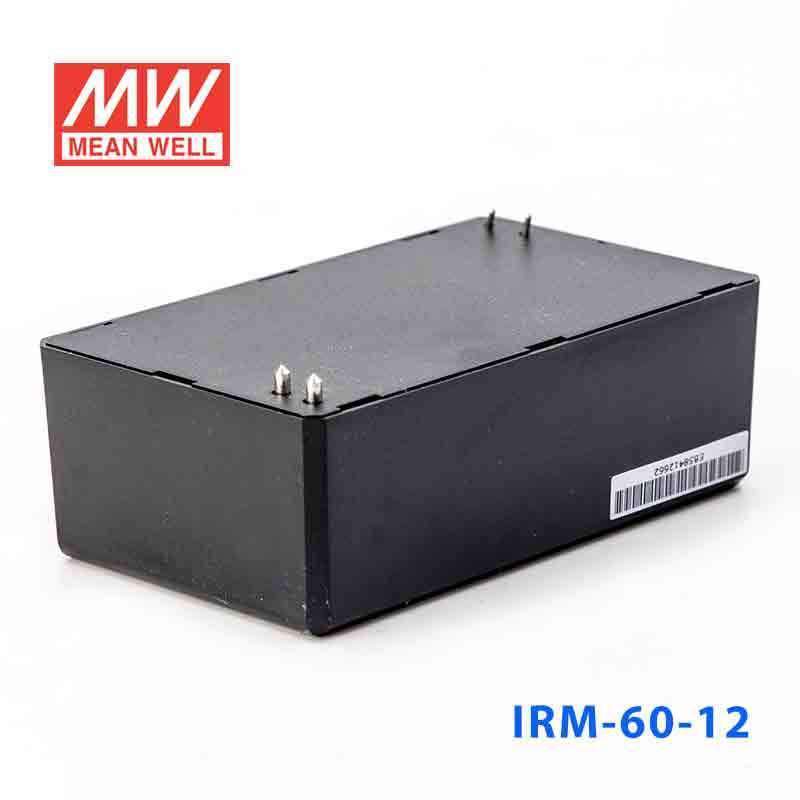

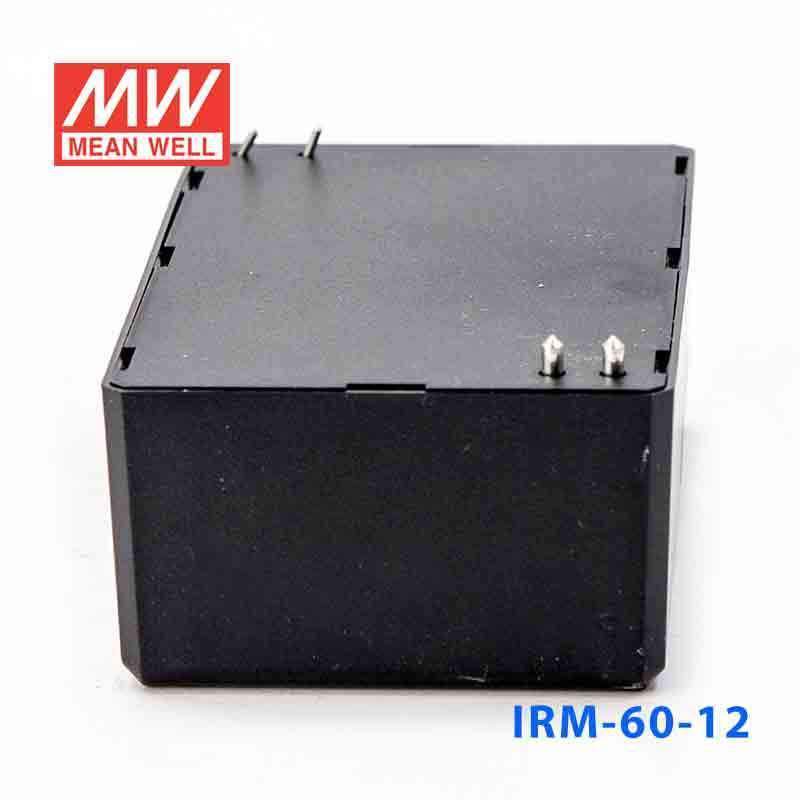

Mean Well IRM-60-12 Switching Power Supply 60W 12V 5A - Encapsulated
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.1W |
| Protections: Short circuit / Overload / Over voltage |
| Compact size |
| Cooling by free air convection |
| Isolation class II |
| High reliability |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC |
| AC inrush current (max.) | Cold start, 30A at 115VAC, 60A at 230VAC |
| Setup, rise, hold up time | 1000ms, 30ms, 50ms |
| Overload protection | 115%~160% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Less than 0.25mA at 240VAC |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN55024 |
| Dimension (LxWxH) | PCB mounting style : 87x 52x 29.5mm Screw terminal style : 109x 52x 33.5mm |
| Vibration | 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes |
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.7 cm
-
Width5.2 cm
-
Height2.95 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-60-12 for a 12V industrial control or monitoring system?
Yes, it provides constant 12V output up to 5A and 60W, which fits many industrial control, monitoring, and auxiliary electronics loads. It is a good fit when the total 12V demand stays within that 5A limit.
Is the IRM-60-12 suitable for 12V embedded devices and automation accessories?
Yes, this model suits embedded devices, automation accessories, and low-voltage control electronics that require a regulated 12V rail and up to 60W. Compared with the IRM-45-12 at 45.6W and 3.8A, it provides more 12V output headroom.
Can the IRM-60-12 power a 12V security or communications subsystem inside equipment?
It can, provided the subsystem operates on constant 12V and does not exceed 5A or 60W. The wide 85-305VAC input also makes it useful for equipment that may be deployed in regions with different mains voltages.
Will the IRM-60-12 work in cold or warm enclosed equipment areas?
The specified operating range is -30C to +70C, so it is designed for a wide range of enclosed equipment temperatures. No IP rating is listed, so it should be used as an internal encapsulated supply in protected indoor hardware rather than exposed outdoor service.
How does the IRM-60-12 compare with other IRM-60 series models?
The IRM-60 series includes IRM-60-5 at 50W, 5V, 10A; IRM-60-12 at 60W, 12V, 5A; IRM-60-15 at 60W, 15V, 4A; IRM-60-24 at 60W, 24V, 2.5A; and IRM-60-48 at 60W, 48V, 1.25A. Each also has an ST version, and this IRM-60-12 is the PCB mounting style 12V model at 87.0 x 52.0 x 29.5 mm.
