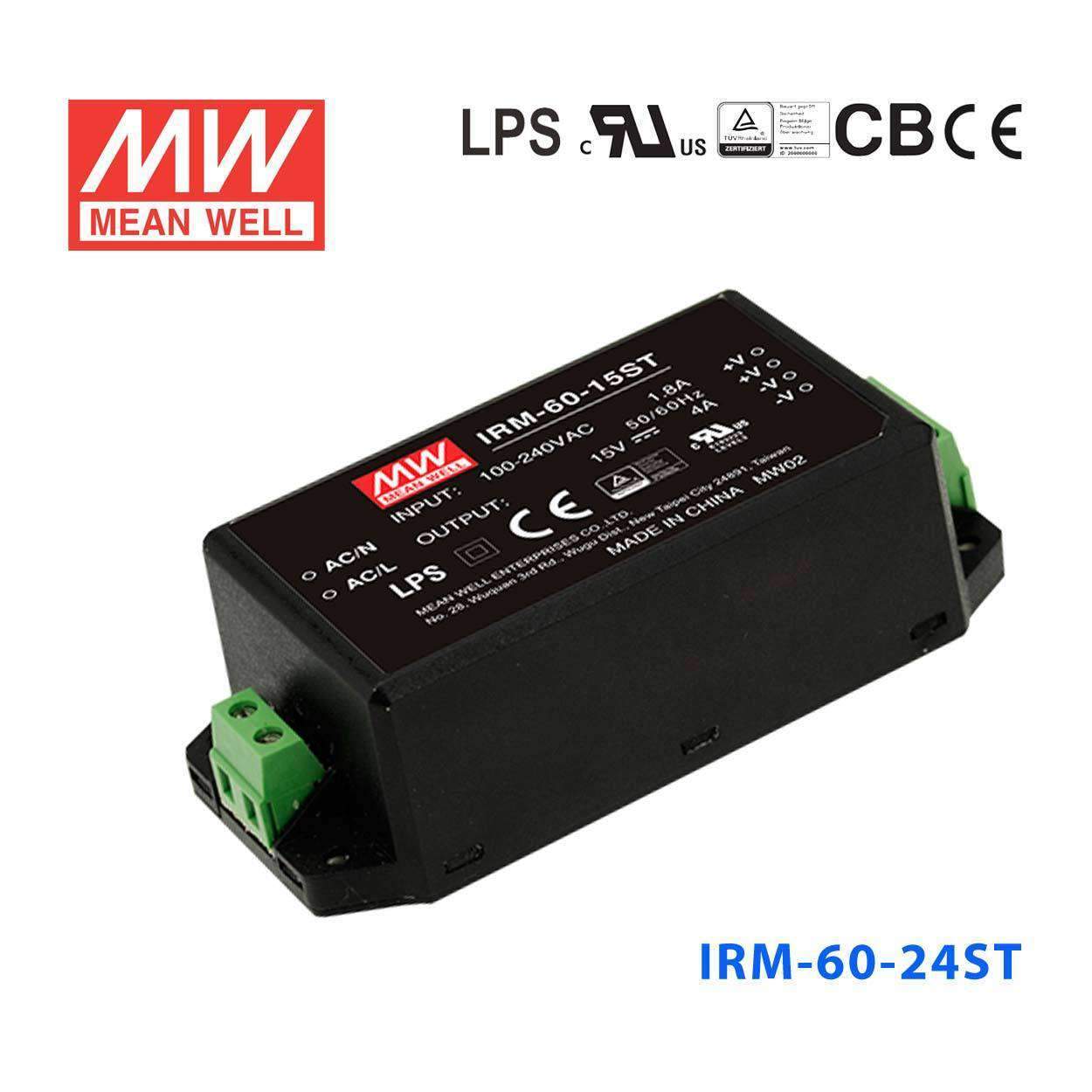

Mean Well IRM-60-24ST Switching Power Supply 60W 24V 2.5A - Encapsu...
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.1W |
| Protections: Short circuit / Overload / Over voltage |
| Compact size |
| Cooling by free air convection |
| Isolation class II |
| High reliability |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC |
| AC inrush current (max.) | Cold start, 30A at 115VAC, 60A at 230VAC |
| Setup, rise, hold up time | 1000ms, 30ms, 50ms |
| Overload protection | 115%~160% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Less than 0.25mA at 240VAC |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN55024 |
| Dimension (LxWxH) | PCB mounting style : 87x 52x 29.5mm Screw terminal style : 109x 52x 33.5mm |
| Vibration | 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes |
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length10.9 cm
-
Width5.2 cm
-
Height3.35 cm
-
Weight0.23 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the IRM-60-24ST be used for 24V machine control or factory automation loads?
Yes, if the equipment needs a constant 24V output and the total demand stays within 2.5A and 60W. That makes it suitable for many 24V control and automation loads used inside machinery or control cabinets.
Is this a good fit for 24V industrial I/O, relays, and interface boards?
It can be, as long as the 24V I/O or interface hardware does not exceed 2.5A combined. Because it is a constant voltage model, it is intended for equipment that expects a stable 24V DC rail.
Can I use the IRM-60-24ST for 24V embedded devices or communications modules?
Yes, for 24V embedded or communications equipment that remains within the 60W output rating. The 85-305VAC input range is also helpful for equipment that may see different AC supply conditions.
Would the IRM-60-24ST work for 24V signage or control accessories inside equipment?
It is appropriate for 24V accessories when the total load is no more than 2.5A. This model is matched to 24V systems, so it should be selected only when the downstream equipment is specified for 24V DC.
Can this power supply be used in unprotected outdoor conditions?
The operating temperature range is -30°C to +70°C, which supports a wide range of equipment temperatures. However, no IP rating is provided, so it is better suited to protected enclosures and indoor use than to direct outdoor exposure.
What are the output differences across the IRM 60 family?
IRM-60-12 and IRM-60-12ST are 60W, 12V, 5A; IRM-60-15 and IRM-60-15ST are 60W, 15V, 4A; IRM-60-24 and IRM-60-24ST are 60W, 24V, 2.5A; IRM-60-48 and IRM-60-48ST are 60W, 48V, 1.25A. IRM-60-5 and IRM-60-5ST are 50W, 5V, 10A, so the family choice comes down to required voltage, corresponding current, and whether you want the ST screw terminal version.
