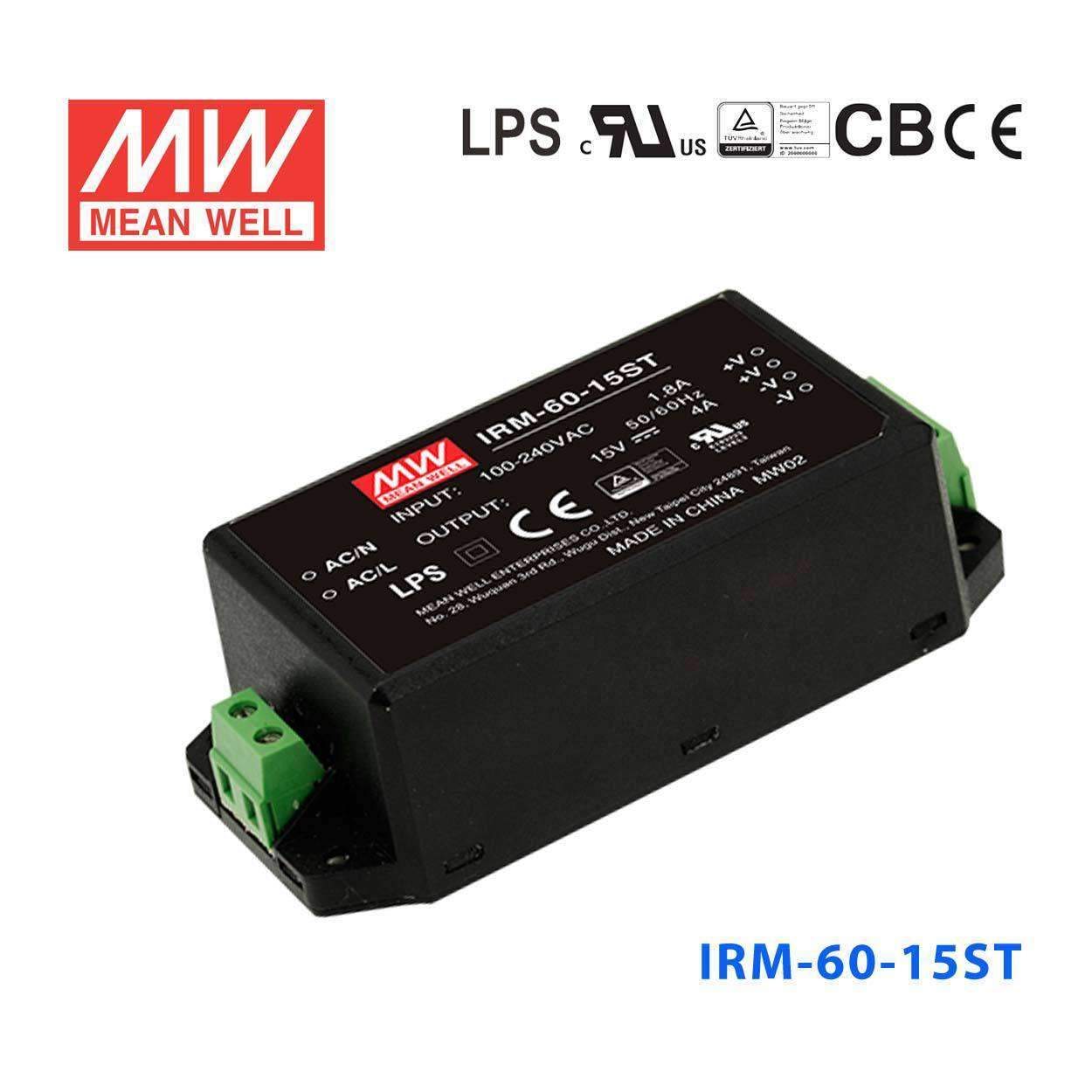

Mean Well IRM-60-15ST Switching Power Supply 60W 15V 4A - Encapsulated
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.1W |
| Protections: Short circuit / Overload / Over voltage |
| Compact size |
| Cooling by free air convection |
| Isolation class II |
| High reliability |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC |
| AC inrush current (max.) | Cold start, 30A at 115VAC, 60A at 230VAC |
| Setup, rise, hold up time | 1000ms, 30ms, 50ms |
| Overload protection | 115%~160% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Less than 0.25mA at 240VAC |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN55024 |
| Dimension (LxWxH) | PCB mounting style : 87x 52x 29.5mm Screw terminal style : 109x 52x 33.5mm |
| Vibration | 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes |
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length10.9 cm
-
Width5.2 cm
-
Height3.35 cm
-
Weight0.23 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the IRM-60-15ST power a 15V automation subsystem in a machine cabinet?
Yes, if the subsystem needs constant 15V and the total draw stays within 4A and 60W. That makes it a practical fit for 15V automation electronics, control boards, and similar cabinet-mounted loads.
Is this model suitable for 15V monitoring, sensing, or data-acquisition equipment?
It can be, as long as the equipment is designed for a 15V constant-voltage input and does not exceed 4A. The 85-305VAC input range also supports use in equipment intended for different AC input environments.
Can I use the IRM-60-15ST for 15V embedded control hardware in industrial devices?
Yes, for industrial or embedded devices that require 15V DC and stay within the 60W output limit. It is a better fit for systems built around a 15V rail than for products that expect 12V, 24V, or 48V.
Would the IRM-60-15ST work for 15V signaling or interface modules?
It is suitable for 15V interface and signaling modules when the combined load remains at or below 4A. Since it is a constant voltage supply, it is intended for electronics that need a stable 15V source.
Is the IRM-60-15ST meant for exposed outdoor service?
The operating temperature range is -30°C to +70°C, which covers a wide range of equipment temperatures. However, no IP rating is listed, so it is better used in protected enclosures or indoor equipment rather than exposed outdoor conditions.
How does the IRM-60-15ST compare to the other IRM 60 models?
IRM-60-12 and IRM-60-12ST are 60W, 12V, 5A; IRM-60-15 and IRM-60-15ST are 60W, 15V, 4A; IRM-60-24 and IRM-60-24ST are 60W, 24V, 2.5A; IRM-60-48 and IRM-60-48ST are 60W, 48V, 1.25A. IRM-60-5 and IRM-60-5ST are 50W, 5V, 10A, so the family splits by voltage and current while the ST versions are the screw terminal style.
