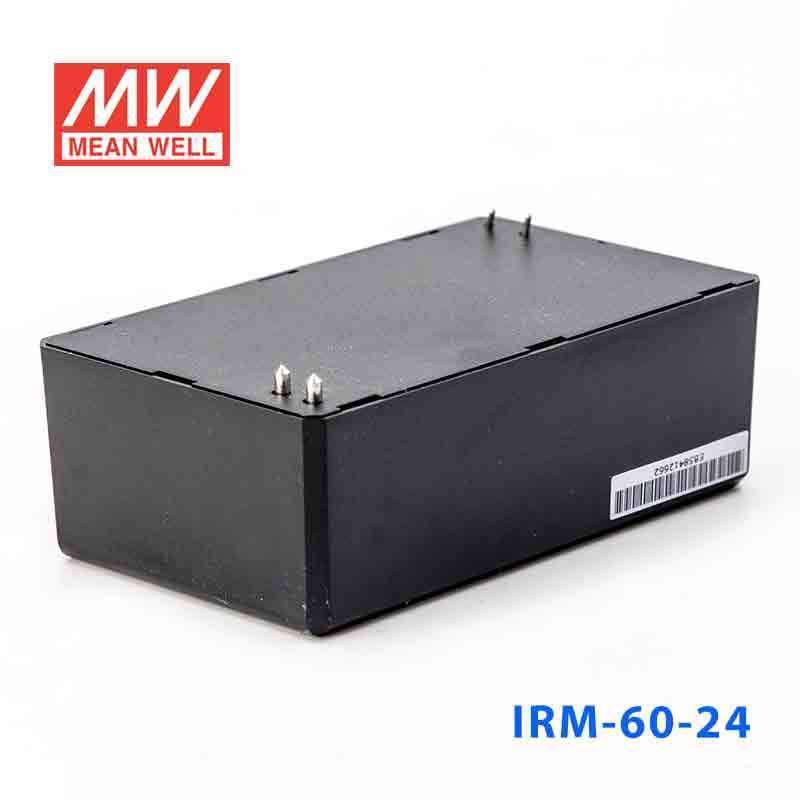

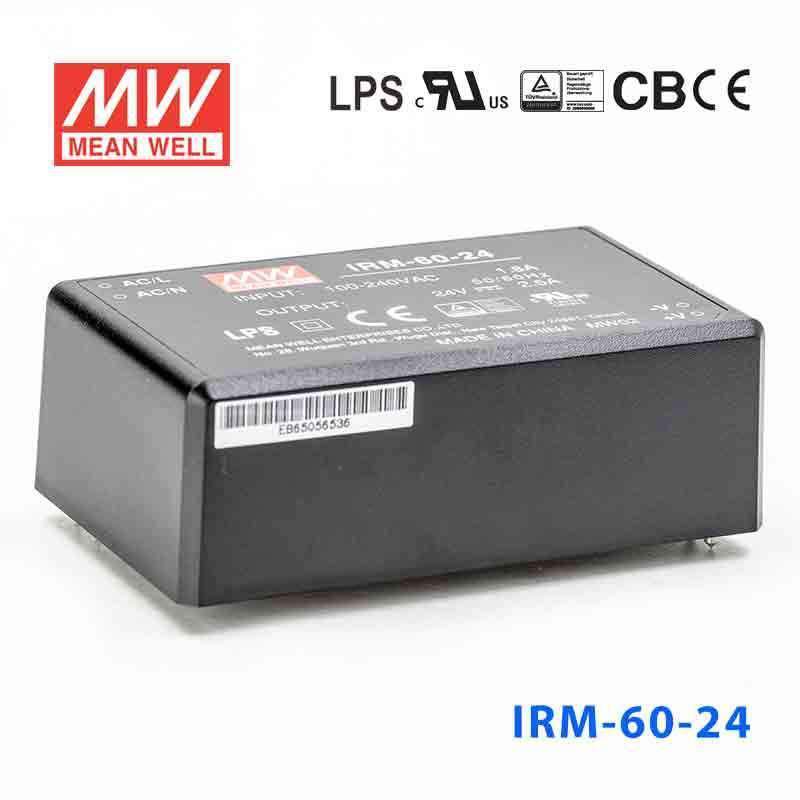

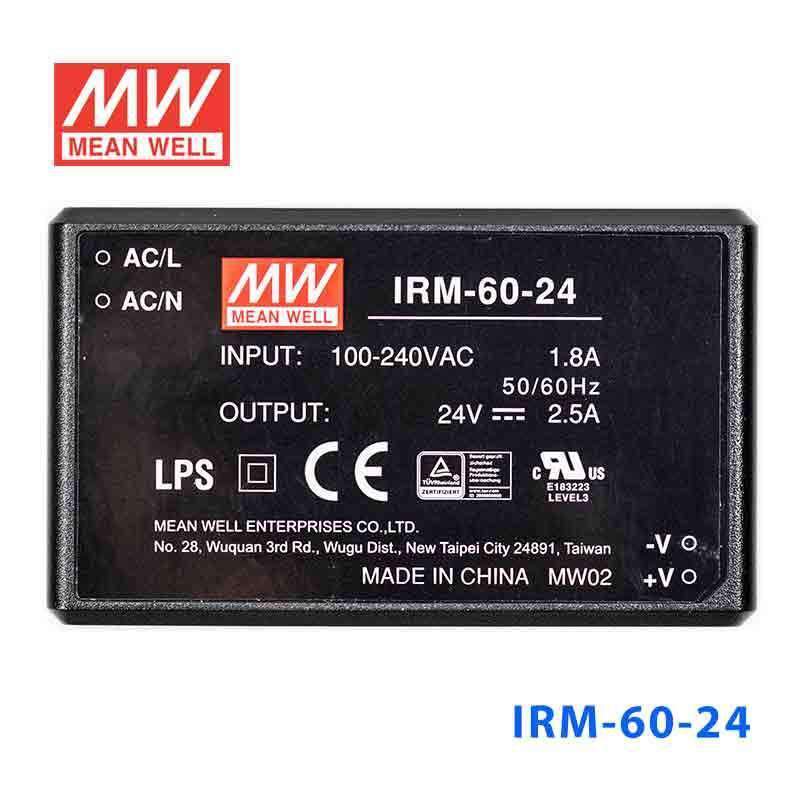

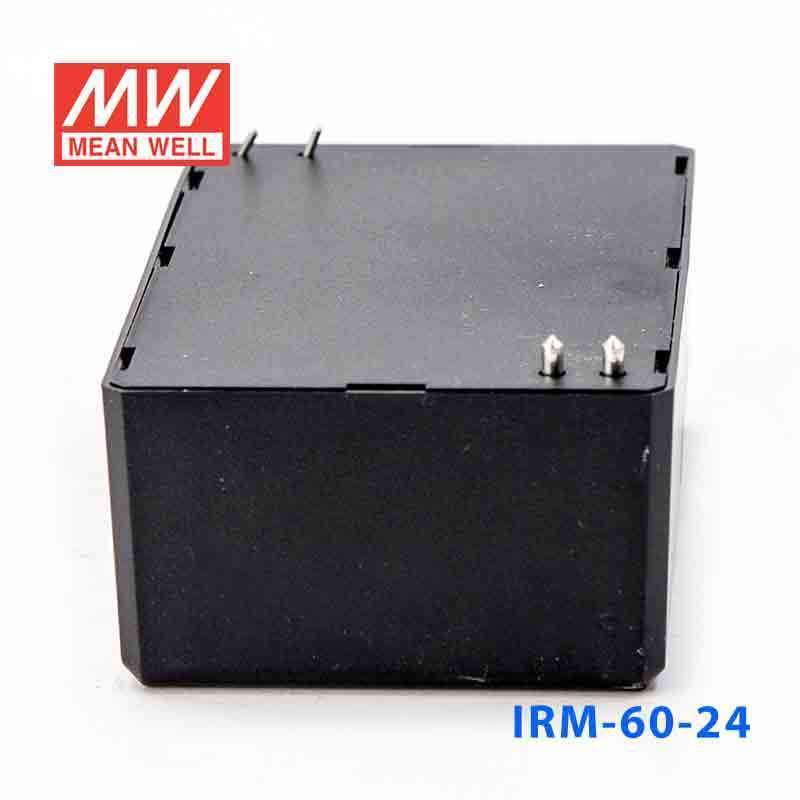

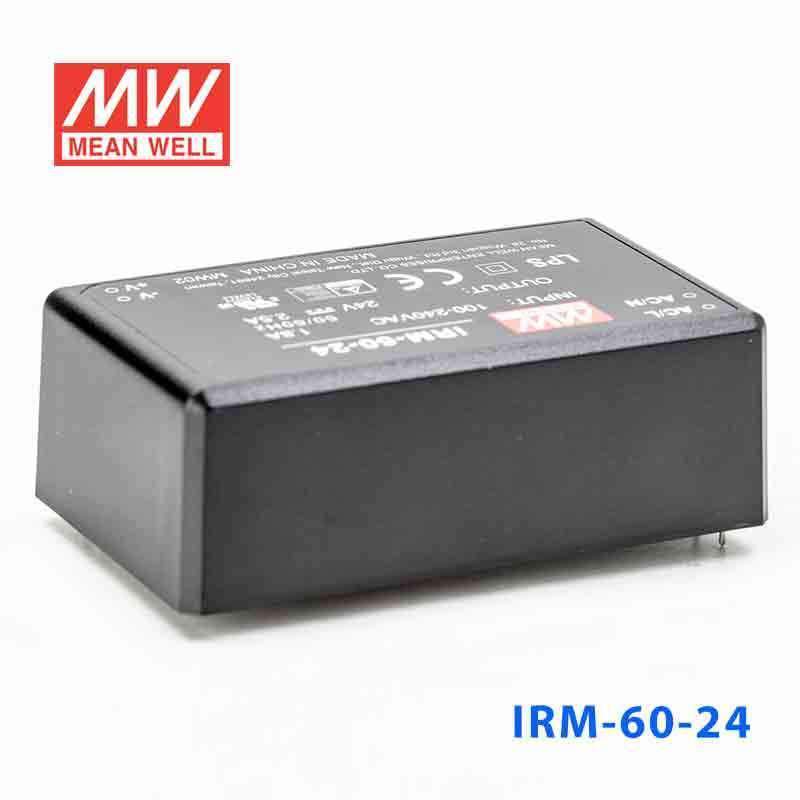

Mean Well IRM-60-24 Switching Power Supply 60W 24V 2.5A - Encapsulated
Please Login for Pricing
Description
Description
The IRM-60 is a 60W Mean Well power converter (input range: 85~305VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: IEC62368-1, UL6 2368 -1, TUV EN6
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.7 cm
-
Width5.2 cm
-
Height2.95 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-60-24 for 24V industrial sensors and control devices?
Yes, if the connected 24V devices need constant voltage and the total load stays within 2.5A and 60W. That makes it suitable for many industrial sensors, control modules, and other 24V DC electronics inside equipment.
Is the IRM-60-24 appropriate for 24V automation or building-control panels?
It can be, provided the panel is designed for a 24V DC supply and the combined draw does not exceed 2.5A. The wide 85-305VAC input is also useful for products that may be deployed across varied AC mains conditions.
Would this power supply work for 24V embedded or communications equipment?
Yes, for embedded or communications hardware that specifies a constant 24V input and stays within the 60W output limit. It is intended for 24V systems, so it is not a substitute for loads designed around 12V, 15V, or 48V.
Can the IRM-60-24 run 24V relays, valves, or interface modules in a compact assembly?
It can support those types of 24V loads when their combined demand remains at or below 2.5A. Its 87.0 x 52.0 x 29.5 mm size also makes it easier to fit into compact PCB-based assemblies.
Is the IRM-60-24 suitable for indoor and outdoor environments?
It is rated for operation from -30°C to +70°C, so the temperature range is broad for equipment use. Since no IP rating is stated, it is best suited to protected indoor enclosures or sheltered housings rather than exposed outdoor locations.
How does the IRM-60-24 differ from other IRM 60 series outputs?
IRM-60-12 and IRM-60-12ST are 60W, 12V, 5A; IRM-60-15 and IRM-60-15ST are 60W, 15V, 4A; IRM-60-24 and IRM-60-24ST are 60W, 24V, 2.5A; IRM-60-48 and IRM-60-48ST are 60W, 48V, 1.25A. IRM-60-5 and IRM-60-5ST are 50W, 5V, 10A, so the key difference across the series is the DC output level and matching current capacity.
