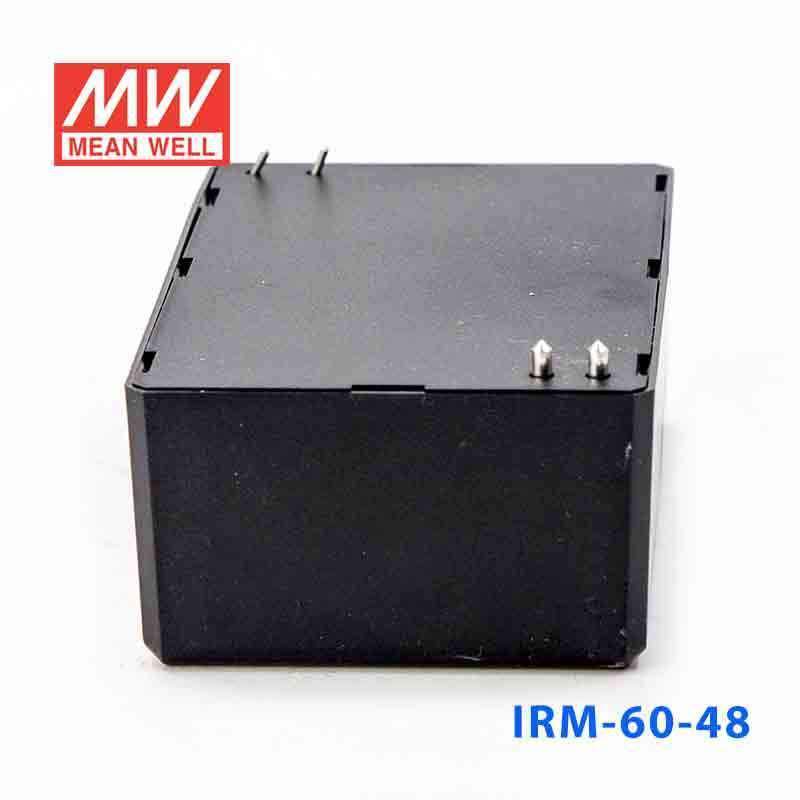

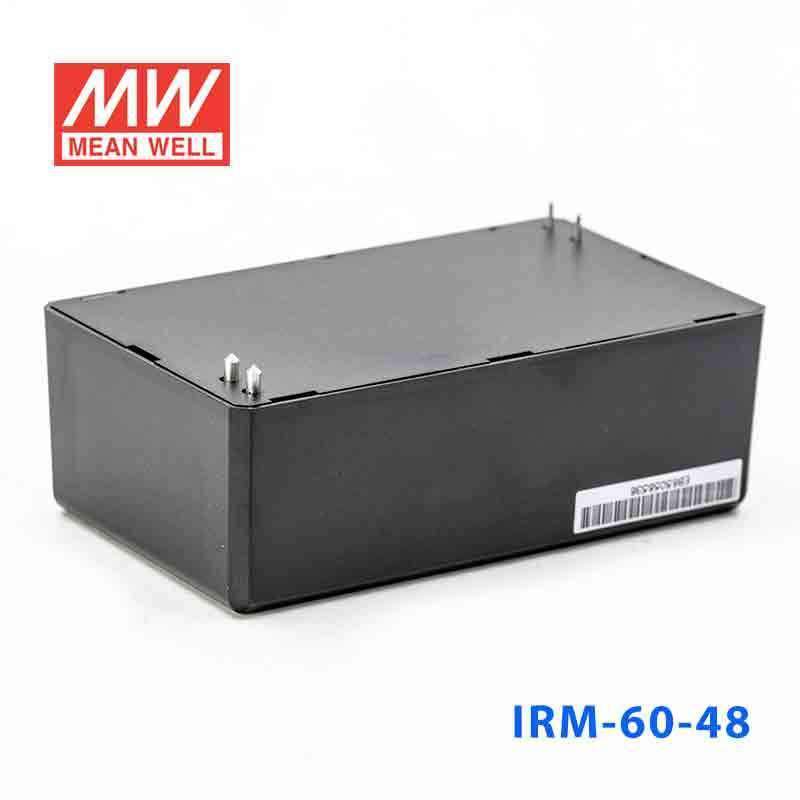

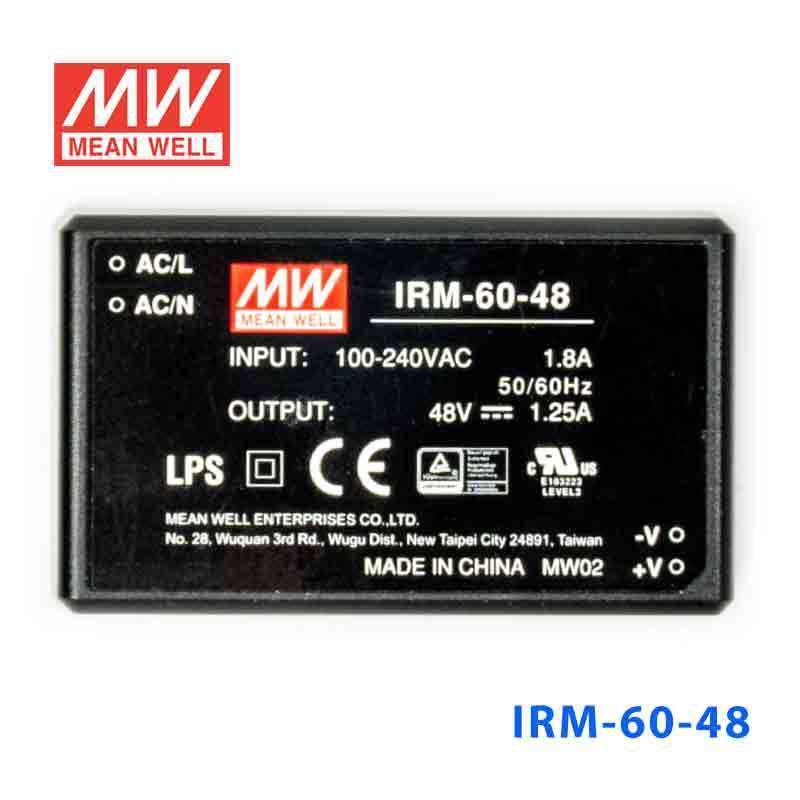

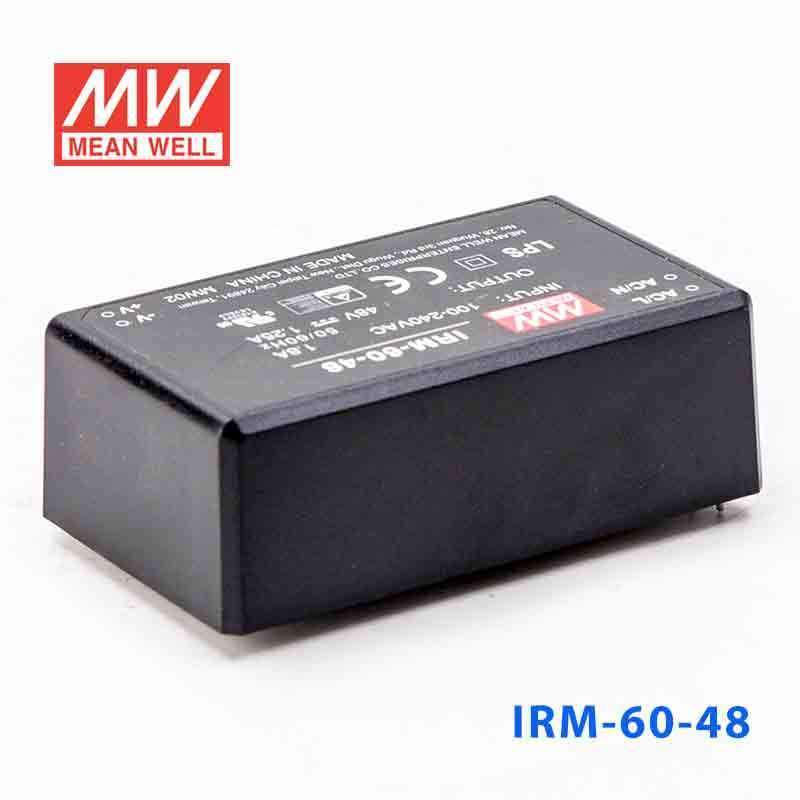

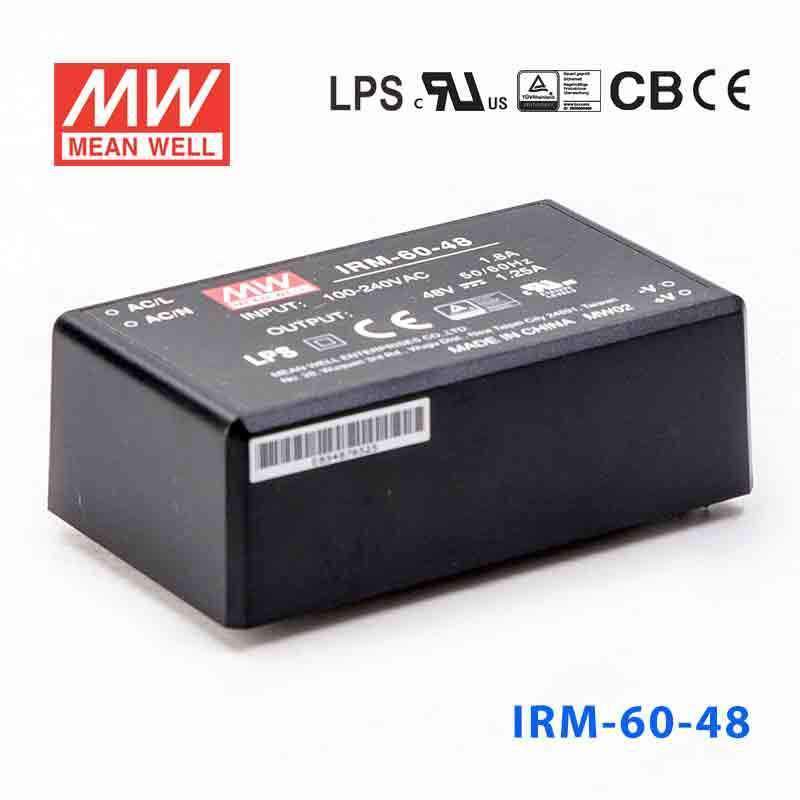

Mean Well IRM-60-48 Switching Power Supply 60W 48V 1.25A - Encapsul...
Please Login for Pricing
Description
Description
The IRM-60 is a 60W Mean Well power converter (input range: 85~305VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: IEC62368-1, UL6 2368 -1, TUV EN6
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.7 cm
-
Width5.2 cm
-
Height2.95 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-60-48 in a 48V industrial control or automation panel?
Yes, this is a constant voltage 48V power supply rated for 60W and 1.25A. Its miniature encapsulated PCB mounting style and 87.0 x 52.0 x 29.5 mm size make it better suited to compact internal industrial or automation equipment than open-frame supplies.
Is the IRM-60-48 suitable for embedded 48V electronics inside OEM equipment?
It can fit embedded 48V designs that need up to 1.25A from a constant voltage source. The encapsulated construction, 0.195 kg weight, and PCB mounting style support use inside space-constrained OEM assemblies.
Can this 48V power supply run low-current telecom or networking hardware that uses 48V DC?
It is appropriate for 48V DC loads that stay within 60W and 1.25A. For telecom, networking, or control hardware, the key match is a regulated 48V constant voltage input within that power budget.
Would the IRM-60-48 work for a compact 48V monitoring or instrumentation system?
Yes, if the monitoring or instrumentation load requires 48V DC and does not exceed 1.25A. The wide 85-305VAC input also helps when the same design may be used across different AC mains ranges.
How does the IRM-60-48 compare with other IRM 48V models?
Within the IRM 48V range, the lower-power options are IRM-30-48 and IRM-30-48ST at 30.2W, 48V, 0.63A, followed by IRM-45-48 and IRM-45-48ST at 45.12W, 48V, 0.94A. This IRM-60-48 and the IRM-60-48ST are 60W, 48V, 1.25A, while the higher-power IRM-90-48 and IRM-90-48ST are 90.2W, 48V, 1.88A.
Is the IRM-60-48 suitable for outdoor or harsh-environment use?
The provided specs list an operating temperature range of -30C to +70C, but no IP rating is provided. That means the temperature range is broad, but outdoor or washdown suitability is not established by the listed specs alone.
