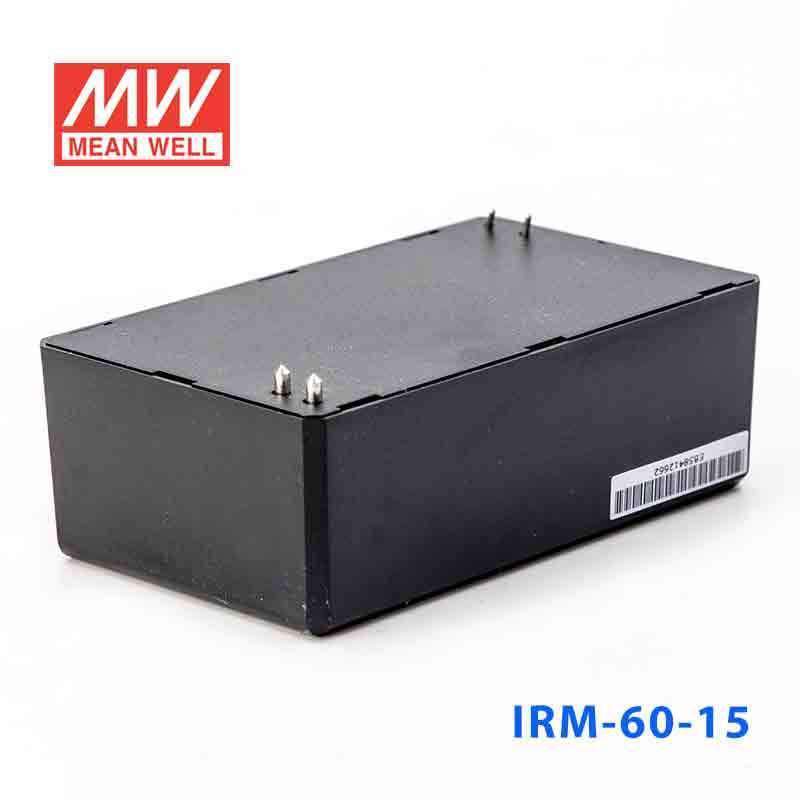

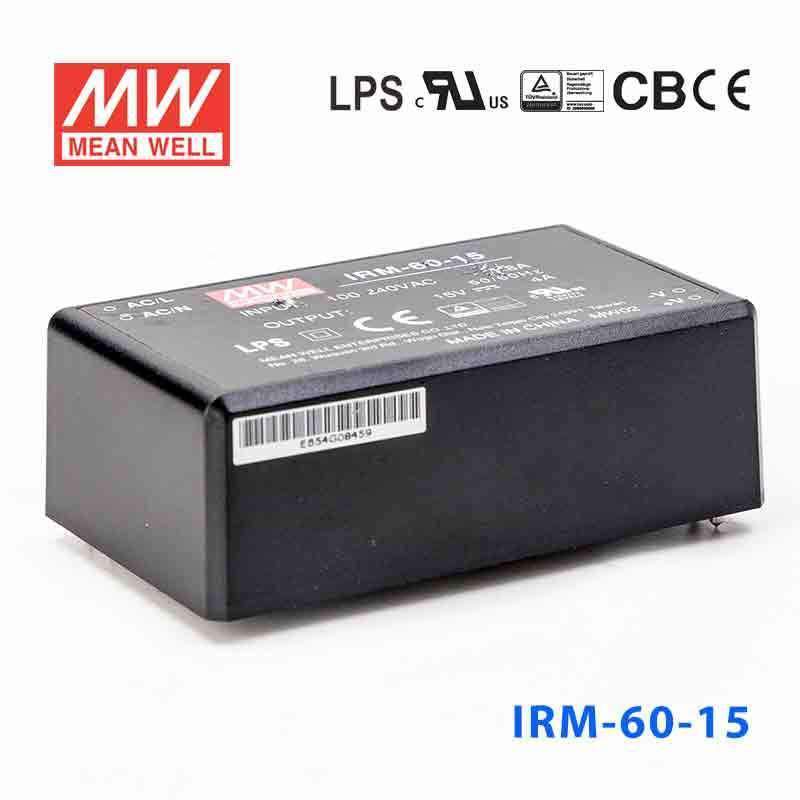

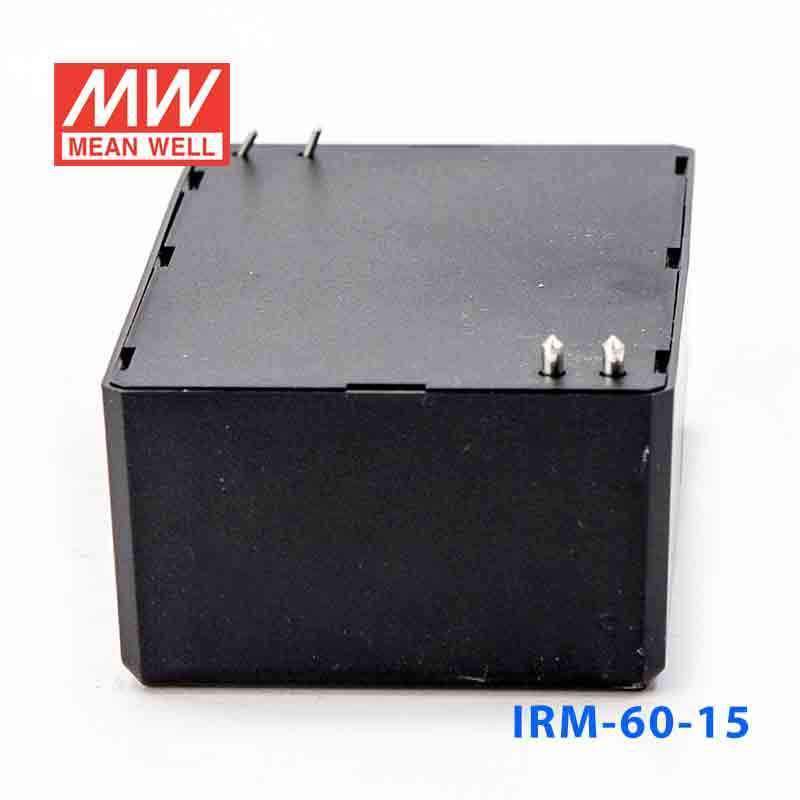

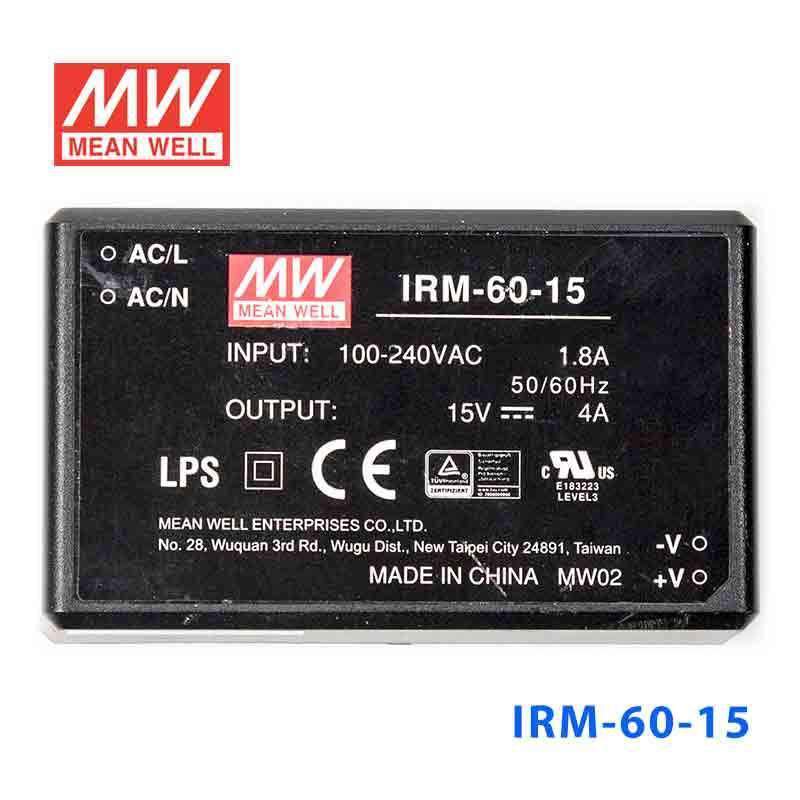

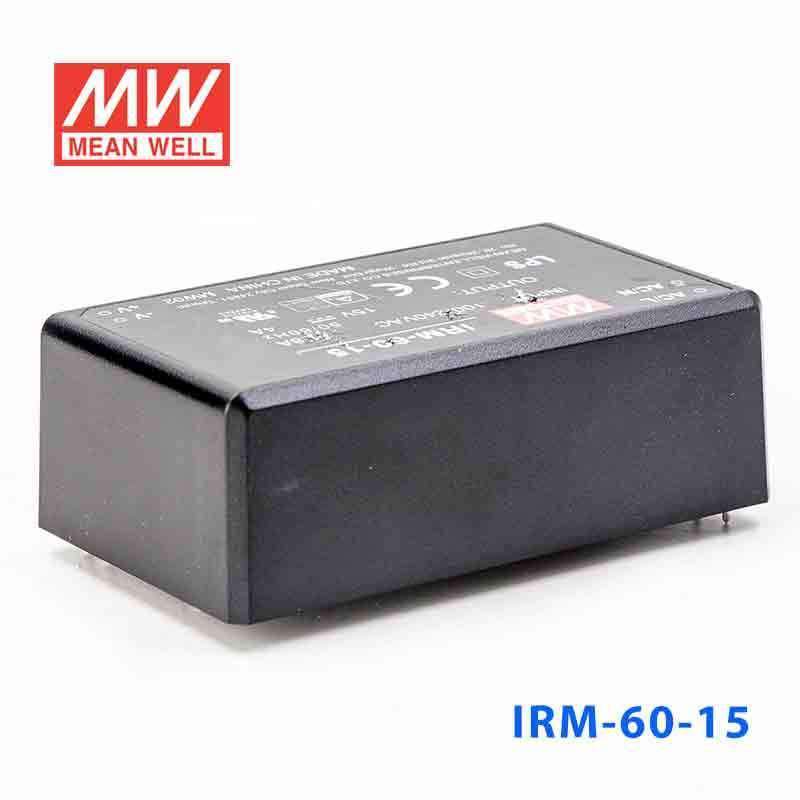

Mean Well IRM-60-15 Switching Power Supply 60W 15V 4A - Encapsulated
Please Login for Pricing
Description
Description
The IRM-60 is a 60W Mean Well power converter (input range: 85~305VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: IEC62368-1, UL6 2368 -1, TUV EN6
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.7 cm
-
Width5.2 cm
-
Height2.95 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-60-15 for a 15V industrial controller or PLC accessory board?
Yes, if the equipment requires constant 15V and the total load stays within 4A and 60W. That makes it suitable for 15V industrial electronics and control subsystems designed around a fixed 15V rail.
Is the IRM-60-15 a good fit for 15V instrumentation or test equipment inside a compact assembly?
It can be a fit when the instrumentation needs 15V constant voltage and draws no more than 4A. Its compact 87.0 x 52.0 x 29.5 mm body also helps where PCB-mounted power conversion needs to stay small.
Can this model power embedded systems that use a regulated 15V DC rail?
Yes, for embedded or automation assemblies that are specified for 15V input and remain within 60W total. It is not interchangeable with 12V or 24V loads, so the downstream electronics need to be designed for 15V operation.
Would the IRM-60-15 work for 15V actuator control or panel accessories?
It can support 15V control accessories when their combined draw does not exceed 4A. The constant voltage output is intended for equipment that expects a steady 15V supply rather than a different DC bus level.
Can I use the IRM-60-15 in cold or hot indoor equipment environments?
Yes, the specified operating temperature range is -30°C to +70°C. Because no IP rating is listed, it is best used in protected indoor equipment or enclosed assemblies rather than directly exposed outdoor locations.
What is the difference between the IRM-60-15 and the other IRM 60 series outputs?
In the 60 series, IRM-60-12 and IRM-60-12ST are 60W, 12V, 5A; IRM-60-15 and IRM-60-15ST are 60W, 15V, 4A; IRM-60-24 and IRM-60-24ST are 60W, 24V, 2.5A; IRM-60-48 and IRM-60-48ST are 60W, 48V, 1.25A. IRM-60-5 and IRM-60-5ST are 50W, 5V, 10A, so the family differences are primarily voltage and current output.
