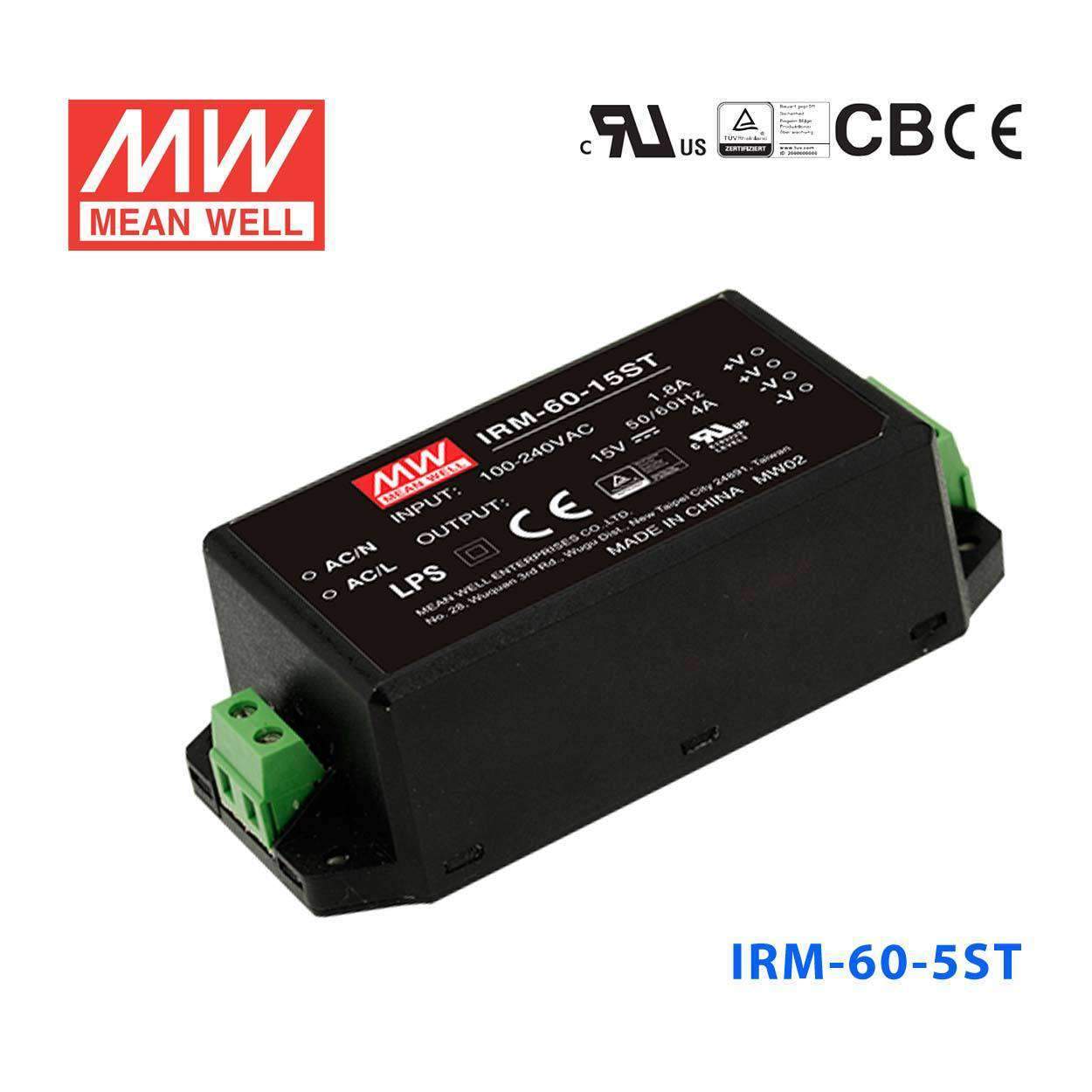

Mean Well IRM-60-5ST Switching Power Supply 50W 5V 10A - Encapsulated
Please Login for Pricing
Description
Description
The IRM-60 is a 60W Mean Well power converter (input range: 85~305VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: IEC62368-1, UL6 2368 -1, TUV EN6
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length10.9 cm
-
Width5.2 cm
-
Height3.35 cm
-
Weight0.23 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-60-5ST for 5V automation or control electronics with higher current draw?
Yes, if the system needs a constant 5V output and the total demand stays within 50W and 10A. That rating suits higher-current 5V control electronics better than lower-power IRM 5V models.
Is the IRM-60-5ST a good fit for 5V computing, interface, or gateway hardware inside a cabinet?
It can be, provided the hardware is designed for 5V DC and stays below 10A. The 85-305VAC input range is also useful for equipment deployed across different mains regions.
Would this model work for 5V displays, data loggers, or instrument electronics in OEM equipment?
Yes, for 5V loads up to 50W. The encapsulated construction and 109.0 x 52.0 x 33.5 mm body make it suitable for enclosed OEM or industrial assemblies using a self-contained AC-DC module.
Can the IRM-60-5ST power multiple 5V subsystems from one supply?
It can support multiple 5V subsystems as long as the combined load does not exceed 10A and 50W. Buyers should total the full 5V demand of all connected electronics against those two limits.
How does the IRM-60-5ST compare with other IRM 5V models?
The listed IRM 5V options run from IRM-01-5 and IRM-01-5S at 1W, 5V, 200A up through IRM-02-5 and IRM-02-5S at 2W, 5V, 400A, IRM-03-5 and IRM-03-5S at 3W, 5V, 600A, IRM-05-5 at 5W, 5V, 1A, IRM-10-5 at 10W, 5V, 2A, IRM-15-5 at 15W, 5V, 3A, IRM-20-5 at 20W, 5V, 4A, IRM-30-5 and IRM-30-5ST at 30W, 5V, 6A, and IRM-45-5 and IRM-45-5ST at 40W, 5V, 8A. This IRM-60-5ST and IRM-60-5 are the listed 5V models at 50W and 10A.
Can the IRM-60-5ST be used outdoors or in wider indoor temperature swings?
The specified operating range is -30C to +70C, so it supports broad indoor temperature conditions. No IP rating is given in the supplied specs, so outdoor or moisture-exposed use is not confirmed here.
