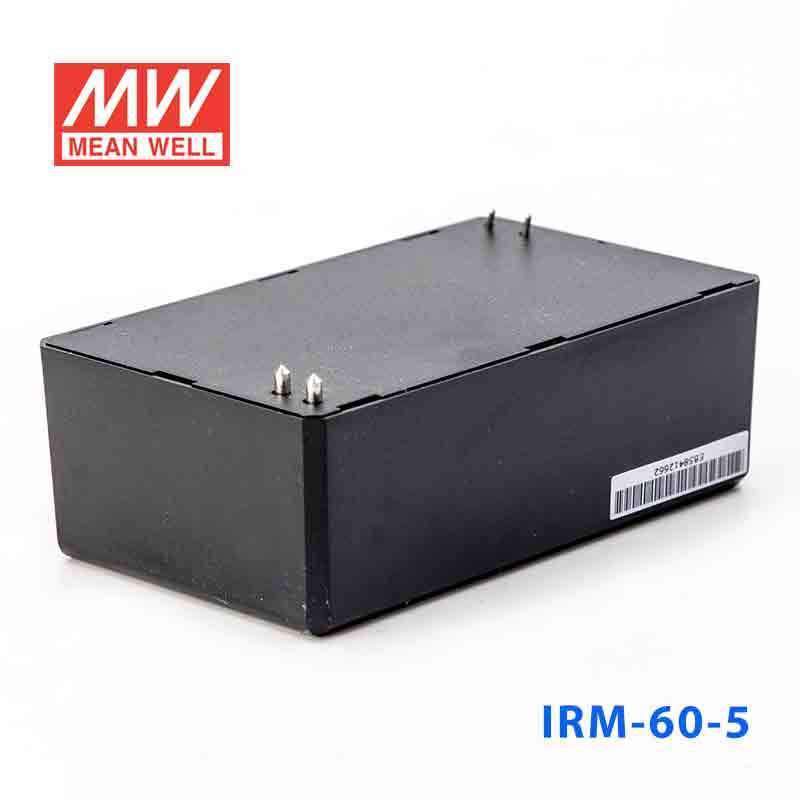

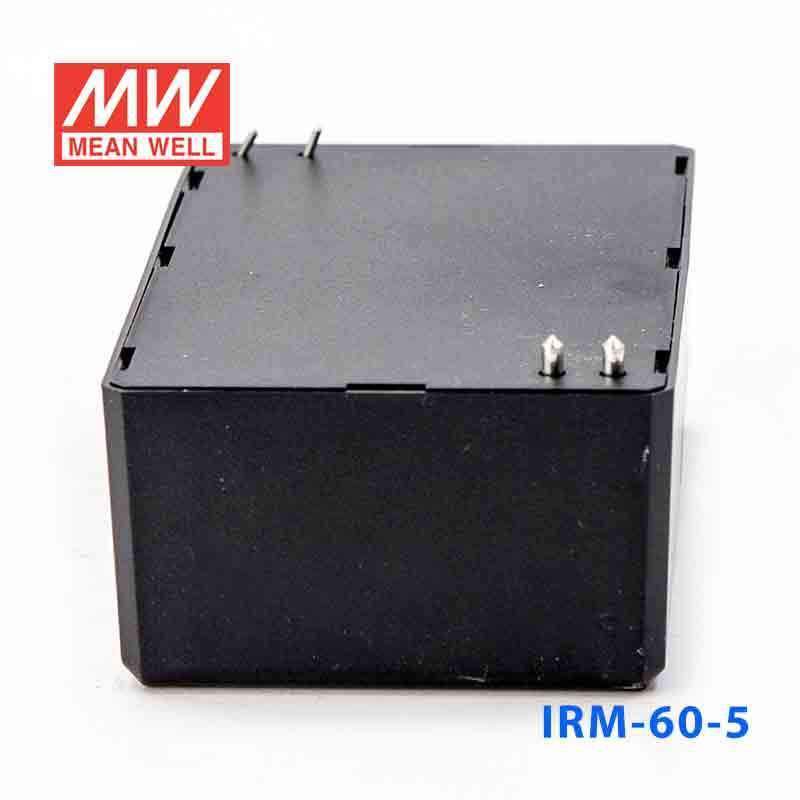

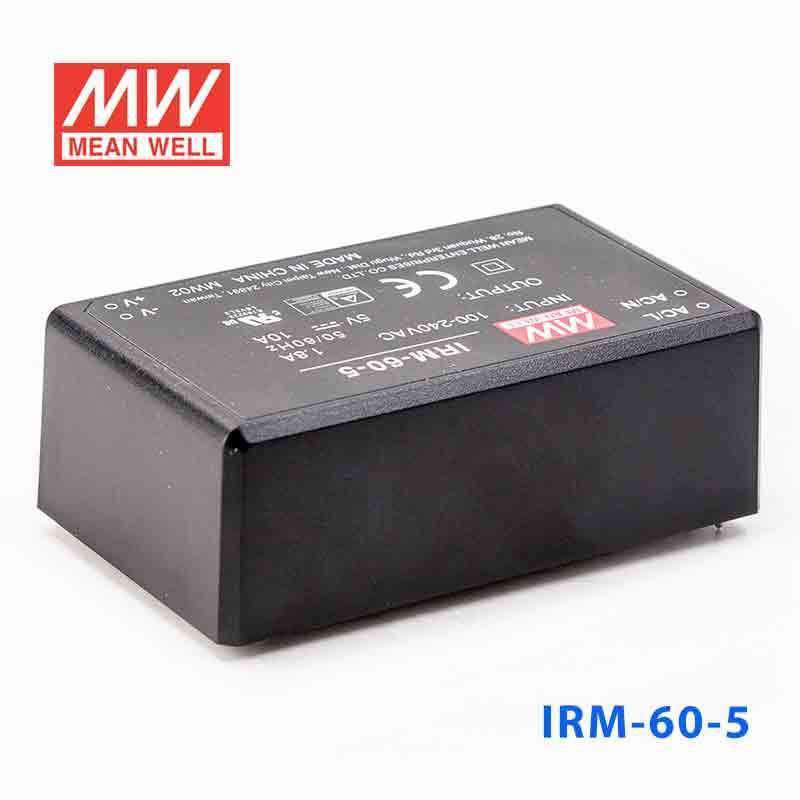

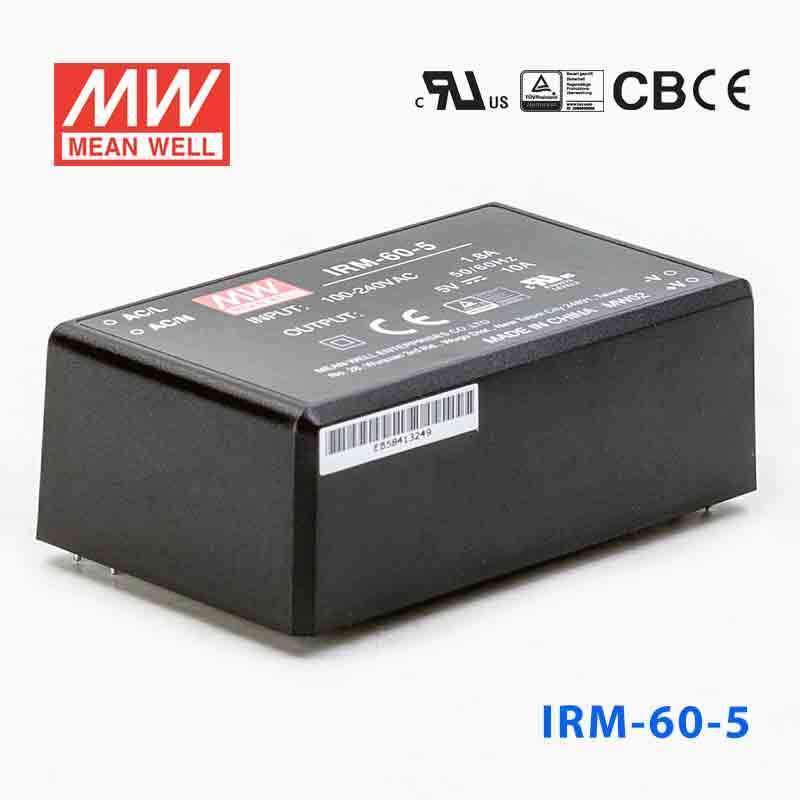

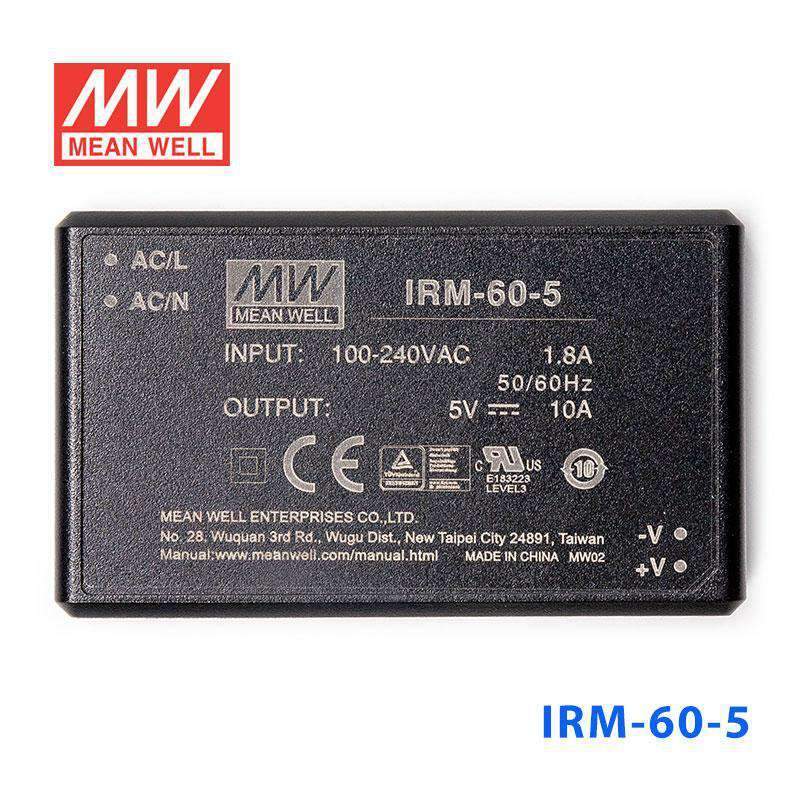

Mean Well IRM-60-5 Switching Power Supply 50W 5V 10A - Encapsulated
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.1W |
| Protections: Short circuit / Overload / Over voltage |
| Compact size |
| Cooling by free air convection |
| Isolation class II |
| High reliability |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC |
| AC inrush current (max.) | Cold start, 30A at 115VAC, 60A at 230VAC |
| Setup, rise, hold up time | 1000ms, 30ms, 50ms |
| Overload protection | 115%~160% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Less than 0.25mA at 240VAC |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN55024 |
| Dimension (LxWxH) | PCB mounting style : 87x 52x 29.5mm Screw terminal style : 109x 52x 33.5mm |
| Vibration | 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes |
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.7 cm
-
Width5.2 cm
-
Height2.95 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-60-5 for 5V industrial controllers or logic electronics?
Yes, if the load needs constant 5V DC and stays within 50W and 10A. That makes it appropriate for 5V control electronics, logic boards, and embedded devices with higher current demand than small 5V modules can support.
Is the IRM-60-5 suitable for single-board computers or edge devices that need a stronger 5V rail?
It can be used where a stable 5V supply is required and the total draw is no more than 10A. The 50W rating gives more headroom than lower-power 5V IRM models for processor-based or peripheral-heavy 5V equipment.
Would this power supply work for 5V displays, HMI modules, or USB-powered subsystems inside equipment?
Yes, for 5V subsystems whose combined demand does not exceed 50W or 10A. Because it is a constant voltage model, it is better matched to regulated 5V electronics than to loads expecting another DC level.
Can the IRM-60-5 support 5V embedded systems in compact OEM hardware?
It is suited to compact OEM hardware that needs 5V DC at relatively high current. The encapsulated PCB mounting style, 87.0 x 52.0 x 29.5 mm dimensions, and 0.195 kg weight support use inside dense internal assemblies.
How does the IRM-60-5 compare with other IRM 5V models?
In the IRM 5V range, IRM-01-5 and IRM-01-5S are 1W, 5V, 200A; IRM-02-5 and IRM-02-5S are 2W, 5V, 400A; IRM-03-5 and IRM-03-5S are 3W, 5V, 600A; IRM-05-5 is 5W, 5V, 1A; IRM-10-5 is 10W, 5V, 2A; IRM-15-5 is 15W, 5V, 3A; IRM-20-5 is 20W, 5V, 4A; IRM-30-5 and IRM-30-5ST are 30W, 5V, 6A; IRM-45-5 and IRM-45-5ST are 40W, 5V, 8A; and IRM-60-5 and IRM-60-5ST are 50W, 5V, 10A. This places the IRM-60-5 at the top of the listed 5V IRM options by current capacity.
Is the IRM-60-5 rated for outdoor use or wide-temperature indoor equipment?
The operating temperature range is -30C to +70C, which supports a broad indoor equipment environment range. No IP rating is listed, so the provided specs do not establish outdoor or water-exposed suitability.
