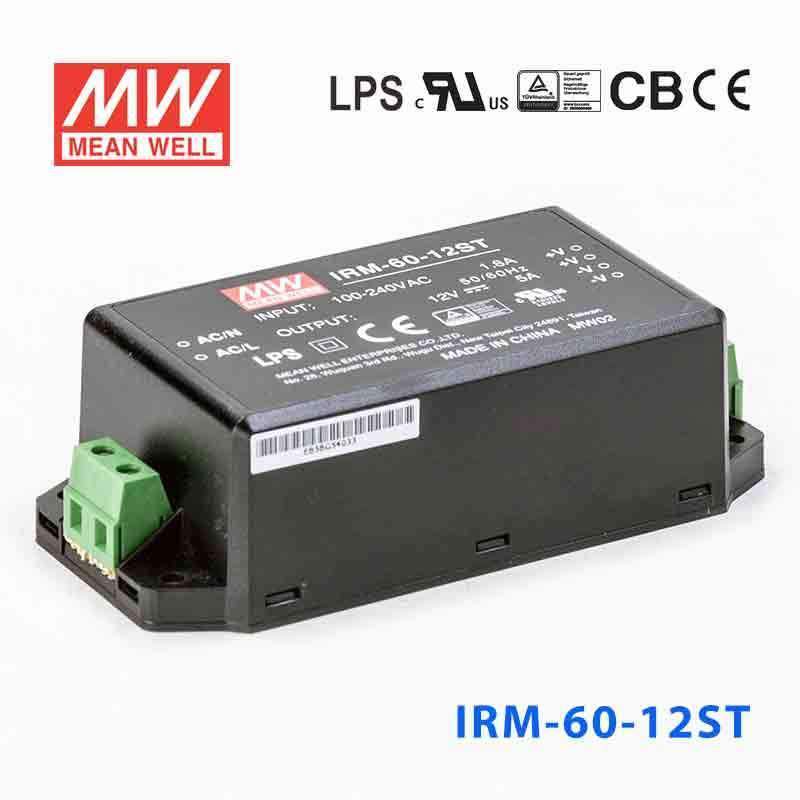

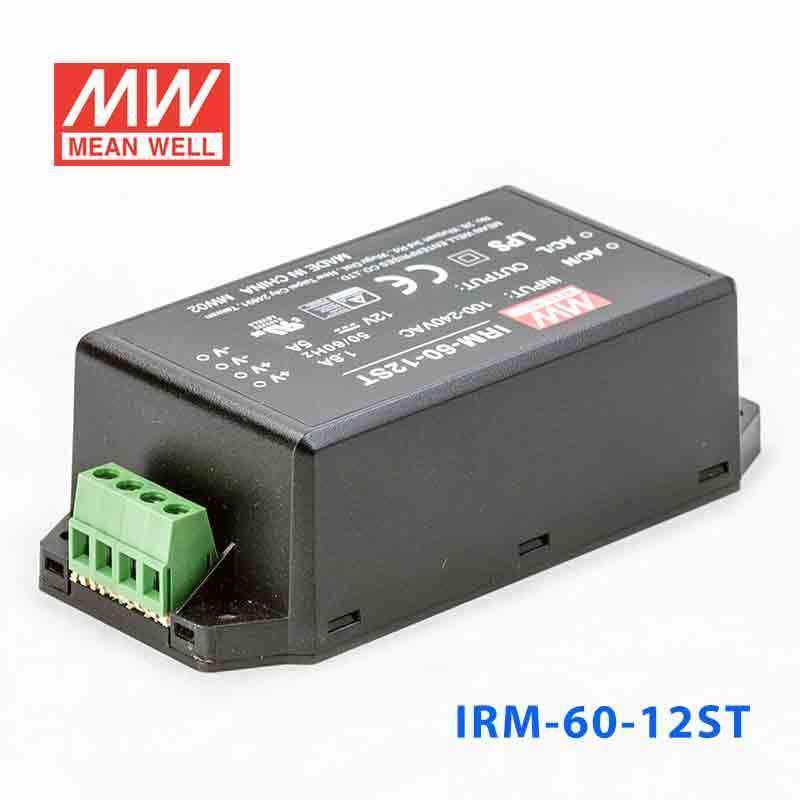

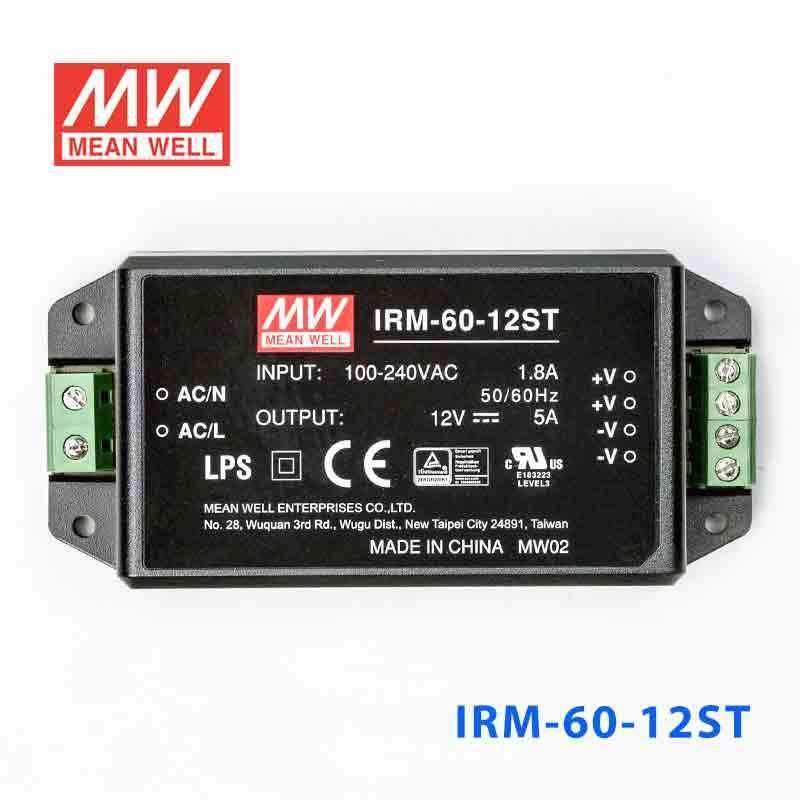

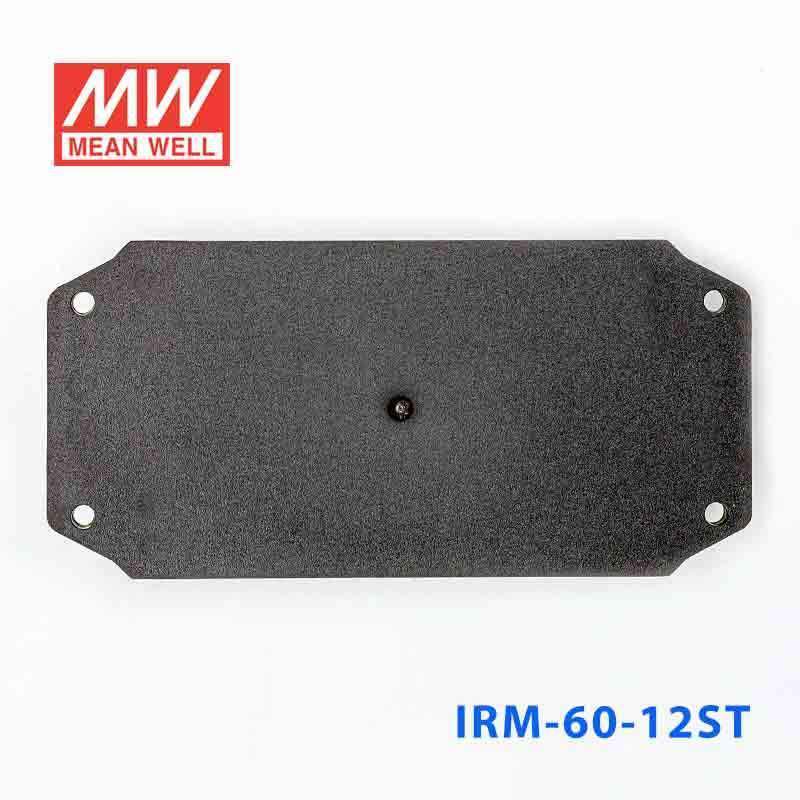

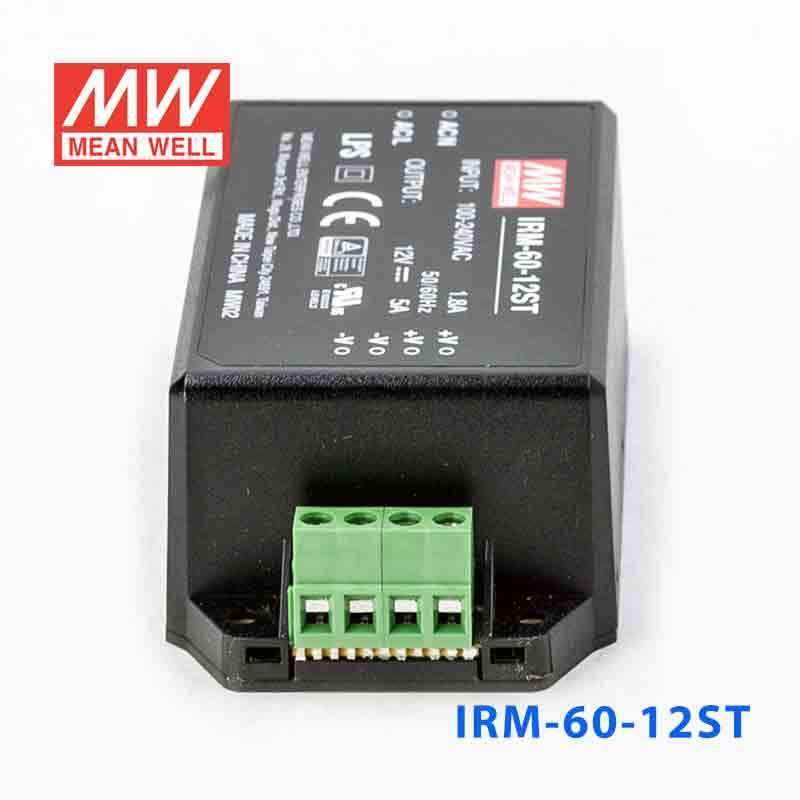

Mean Well IRM-60-12ST Switching Power Supply 60W 12V 5A - Encapsulated
Please Login for Pricing
Description
Description
The IRM-60 is a 60W Mean Well power converter (input range: 85~305VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: IEC62368-1, UL6 2368 -1, TUV EN6
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length10.9 cm
-
Width5.2 cm
-
Height3.35 cm
-
Weight0.23 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-60-12ST for a 12V industrial control panel with multiple sensors and relays?
Yes, if the control panel needs a constant 12V supply and the total load stays within 5A and 60W. That makes it a fit for 12V industrial control electronics, relays, and similar low-voltage automation loads inside equipment.
Is the IRM-60-12ST suitable for powering 12V embedded or single-board computer projects in equipment?
It can be, provided the embedded system requires constant 12V and the full system draw remains at or below 5A and 60W. The wide 85-305VAC input also helps when the equipment may be used across different AC mains ranges.
Can this power supply run 12V HMI, alarm, or access-control hardware?
It is appropriate for 12V equipment in those categories when the combined demand does not exceed 5A at 12V. Because it is a constant voltage 60W supply, it is better suited to stable 12V loads than to applications that need a different output voltage.
Would the IRM-60-12ST work for 12V LED or signage systems inside equipment enclosures?
Yes, for 12V constant-voltage LED or signage loads that stay within 5A and 60W total. It is better matched to enclosed equipment or protected housings than to products that require a documented outdoor enclosure rating.
Is the IRM-60-12ST suitable for outdoor or harsh-environment use?
Its operating temperature range is -30°C to +70°C, so the temperature range is broad. However, no IP rating is listed, so it is better suited to protected indoor equipment or sheltered enclosures rather than exposed outdoor or washdown environments.
How does the IRM-60-12ST compare with other IRM 60 series models?
Within the 60 series, IRM-60-12 and IRM-60-12ST are 60W, 12V, 5A; IRM-60-15 and IRM-60-15ST are 60W, 15V, 4A; IRM-60-24 and IRM-60-24ST are 60W, 24V, 2.5A; IRM-60-48 and IRM-60-48ST are 60W, 48V, 1.25A. IRM-60-5 and IRM-60-5ST are 50W, 5V, 10A, so the main differences are output voltage, available current, and whether the version is standard or ST.
