Can I use the MDS02L-05 to provide 5V power for embedded electronics from a 5V-class source?

This converter is specified for a 4-5VAC input and provides a constant 5V output at 2W. That makes it suitable for low-power embedded 5V electronics when the available source falls within that input range.

Is the MDS02L-05 suitable for 5V industrial interface circuits in compact equipment?

It can be used for 5V interface circuitry in compact equipment where the source is 4-5VAC and the load fits within the 2W rating. The 19.5 × 12.5 × 9.8 mm dimensions support use in dense industrial or embedded layouts.

Can this model support low-power 5V automation control electronics?

Yes, it is intended for constant-voltage 5V output and a 2W power level from a 4-5VAC input. That profile fits low-power automation control electronics rather than higher-power 5V subsystems.

Is the MDS02L-05 meant for outdoor installations?

The published operating temperature range is -40°C to +85°C, so the temperature specification is broad. No IP rating is provided in the specs, so it should be considered for protected indoor or enclosed equipment use rather than direct outdoor exposure.

How does the MDS02L-05 compare with other MDS02L versions?

All listed MDS02L siblings are 2W models. The series includes MDS02L-03N at 3.3V and 40A, MDS02L-05N at 5V and 40A, MDS02L-12 at 12V and 167A, MDS02L-12N at 12V and 40A, MDS02L-15 at 15V and 133A, and MDS02L-15N at 15V and 40A, while this MDS02L-05 version is 5V and 400A.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

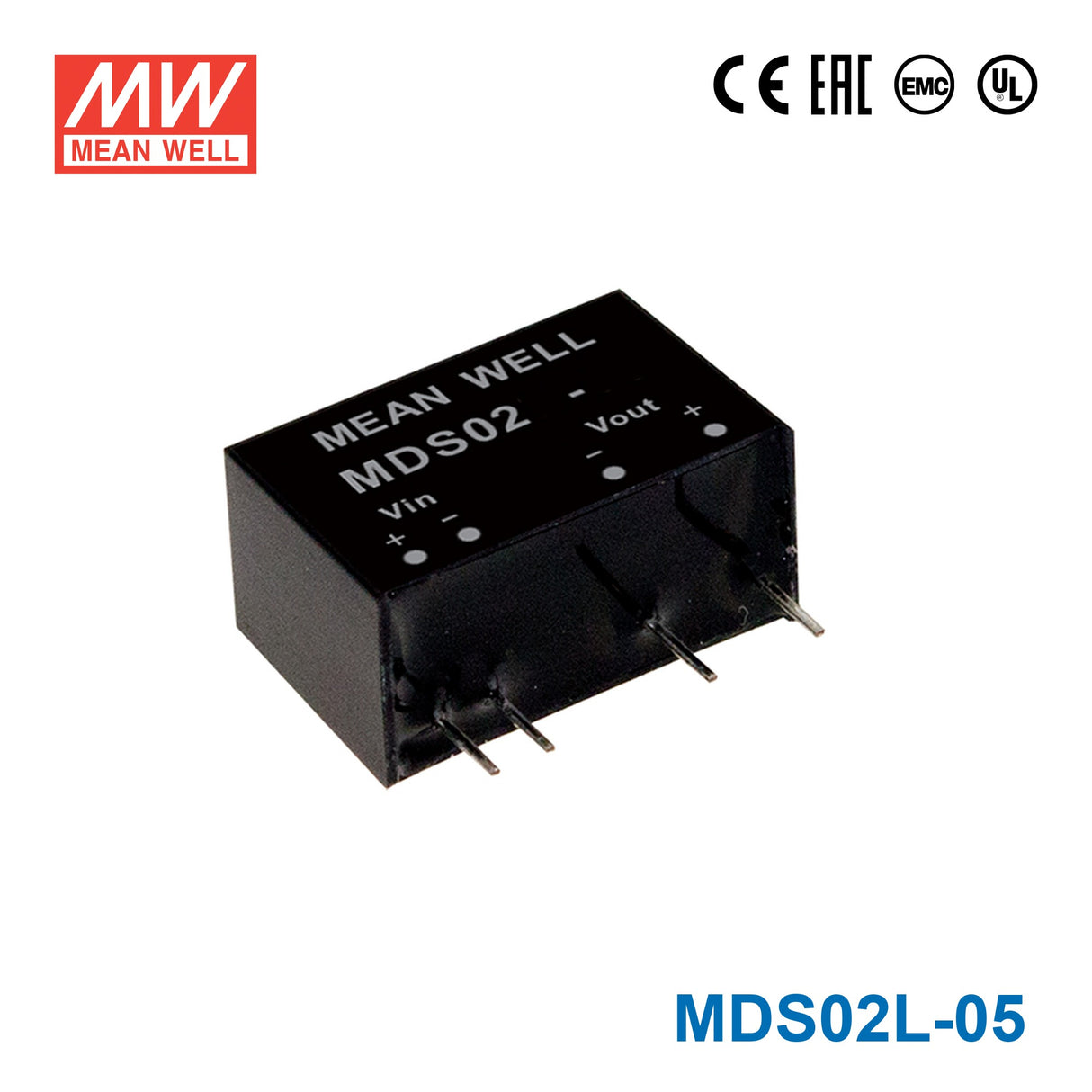

Mean Well MDS02L-05 DC-DC Converter - 2W - 4.5~5.5V in 5V out 400mA

SKU:

MDS02L-05

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by MDS02L-05N

Notify me when it's back in stock

The MDS02L is a 2W Mean Well power converter (input range: 4.5~5.5Vdc).

Key Features

✓ Input voltage range: 4.5~5.5Vdc
✓ 6KVDC reinforced I/O isolation
✓ Protections: Short circuit
✓ Safety approvals: UL60601-1, EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well MDS02N-15N SIP Package DC-DC Converter- 2W - 15V Out 12mA	2W	15V	0.01A	Indoor	View
Mean Well MDS02N-12N SIP Package DC-DC Converter- 2W - 12V Out 12mA	2W	12V	0.01A	Indoor	View
Mean Well MDS02N-05N SIP Package DC-DC Converter- 2W - 5V out 12mA	2W	5V	0.01A	Indoor	View
Mean Well MDS02N-03N SIP Package DC-DC Converter- 2W - 3.3V out 10mA	2W	3.3V	0.01A	Indoor	View
Mean Well MDS02M-15N SIP Package DC-DC Converter- 2W - 15V Out 23mA	2W	15V	0.02A	Indoor	View
Mean Well MDS02M-12N SIP Package DC-DC Converter- 2W - 12V Out 23mA	2W	12V	0.02A	Indoor	View
Mean Well MDS02M-05N SIP Package DC-DC Converter- 2W - 5V out 28mA	2W	5V	0.02A	Indoor	View
Mean Well MDS02M-03N SIP Package DC-DC Converter- 2W - 3.3V out 28mA	2W	3.3V	0.02A	Indoor	View
Mean Well MDS02L-15N SIP Package DC-DC Converter- 2W - 15V Out 40mA	2W	15V	0.04A	Indoor	View
Mean Well MDS02L-12N SIP Package DC-DC Converter- 2W - 12V Out 40mA	2W	12V	0.04A	Indoor	View
Mean Well MDS02L-05N SIP Package DC-DC Converter- 2W - 5V out 40mA	2W	5V	0.04A	Indoor	View
Mean Well MDS02L-03N SIP Package DC-DC Converter- 2W - 3.3V out 40mA	2W	3.3V	0.04A	Indoor	View
