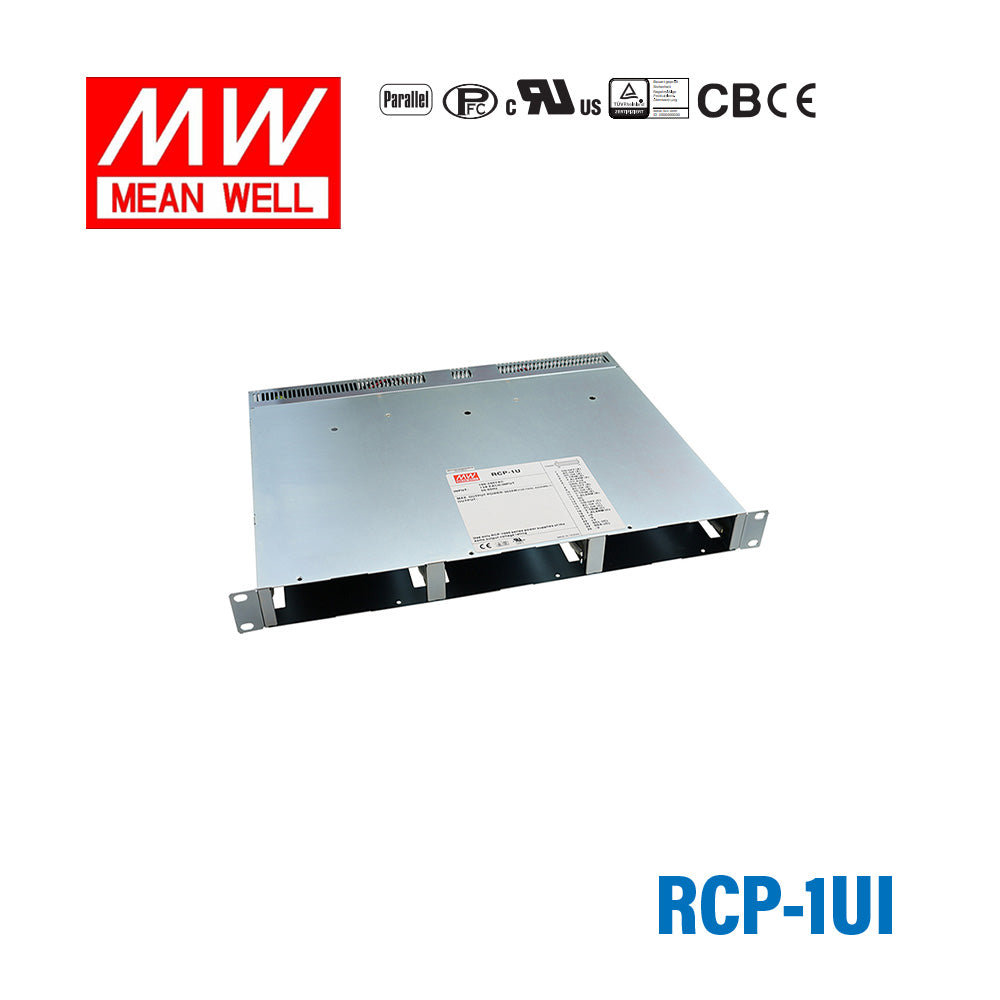

Mean Well RCP-1UI 19 inch 1U Rack for RCP-1000 Series with IEC320-C...
Please Login for Pricing
Description
Description
Features
| Universal AC input/Full range |
| 1U profile 19" rack shelf, fitting three 1000W modules up to 3000W with active current sharing |
| Output voltage programmable |
| Support hot swap(hot plug) |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC | 127~370VDC |
| Leakage current | <3.5mA / 230VAC |
| Auxiliary power | 5V@0.3A |
| Withstand voltage | I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.7KVDC |
| Working temperature | -20~+60ºC (refer to output derating curve) |
| Safety standards | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| EMC standards | EN55032 class A, EN61000-4-2,3,4,5,6,8,11 |
| Case No | 959A |
| Dimension (LxWxH) (mm) | Rack 350.8 x 483.6 x 44 |
| Packing | 13.2Kg; 1pcs/13.2Kg/2.67CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRCP Series
-
Warranty3 Year
-
Length48 cm
-
Width35 cm
-
Height4.4 cm
-
Weight5 kg
