Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

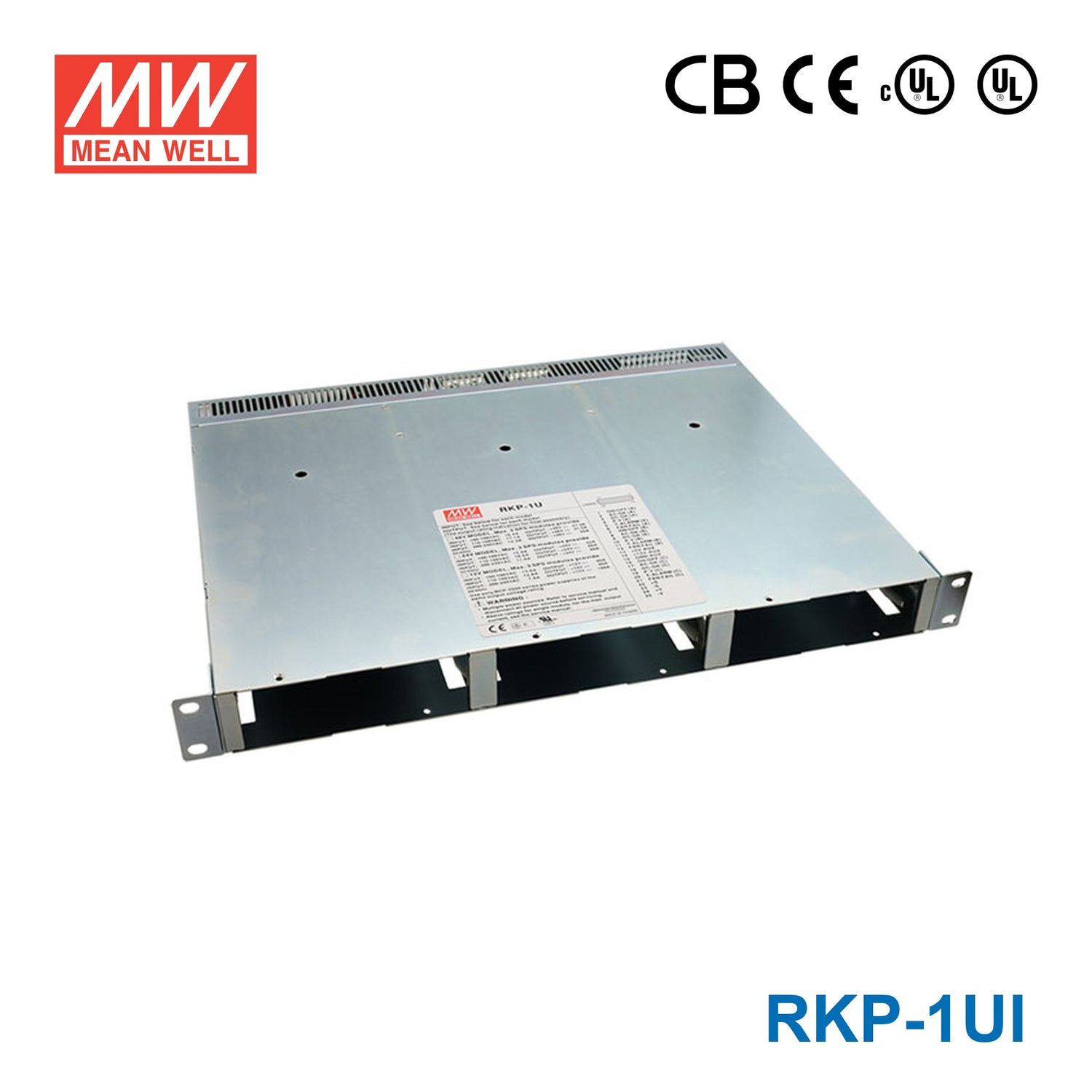

Mean Well RKP-1UI AC-DC 19" Rack Shelf for 3 Units of RCP-2000...
Please Login for Pricing
Description
Description
The RKP is a 6000W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over temperature
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRCP Series
-
Standards MetCB,CE,cUL,UL
-
Warranty3 Year
-
Length48 cm
-
Width35 cm
-
Height4.4 cm
-
Weight14.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well RKP-1UI used for?
The RKP-1UI is a 1U 19-inch rack shelf designed to house up to three Mean Well RCP-2000 power modules. In a fully populated configuration, it supports a combined power capacity of up to 6000W with active current sharing. It is intended for high-power rack-mounted AC-DC power supply applications.
How many power modules does the RKP-1UI support?
This rack shelf is built for three RCP-2000 units. Its 1U profile allows those modules to be mounted in a standard 19-inch rack format. That makes it suitable for higher power systems that need multiple 2000W modules in one chassis.
What input range does the Mean Well RKP-1UI support?
The specified AC input range is 90 to 264VAC, and it also supports 127 to 370VDC input. This wide input range makes it suitable for full-range universal power environments. The product description also notes an IEC320-C14 input socket.
Is the RKP-1UI suitable for demanding industrial environments?
The RKP-1UI is rated for operation from -40°C to 70°C, which supports use in a wide range of operating conditions. It also includes defined withstand voltage ratings and leakage current specifications for professional power applications. These characteristics make it appropriate for demanding commercial and industrial rack power systems.
What are the main feature differences that set the RKP-1UI apart from a basic rack shelf?
Unlike a basic mechanical shelf, the RKP-1UI is designed specifically for three RCP-2000 modules and supports active current sharing up to 6000W total. It also includes output voltage programmability, hot-swap support, and built-in PMBus protocol support. Those features make it a purpose-built platform for managed high-power AC-DC systems rather than simple rack mounting.
Does the RKP-1UI support monitoring or system communication features?
Yes, the RKP-1UI includes built-in PMBus protocol support. That makes it suitable for systems that require power supply communication and monitoring capability. It also supports output voltage programmability for applications that need controlled power configuration.
