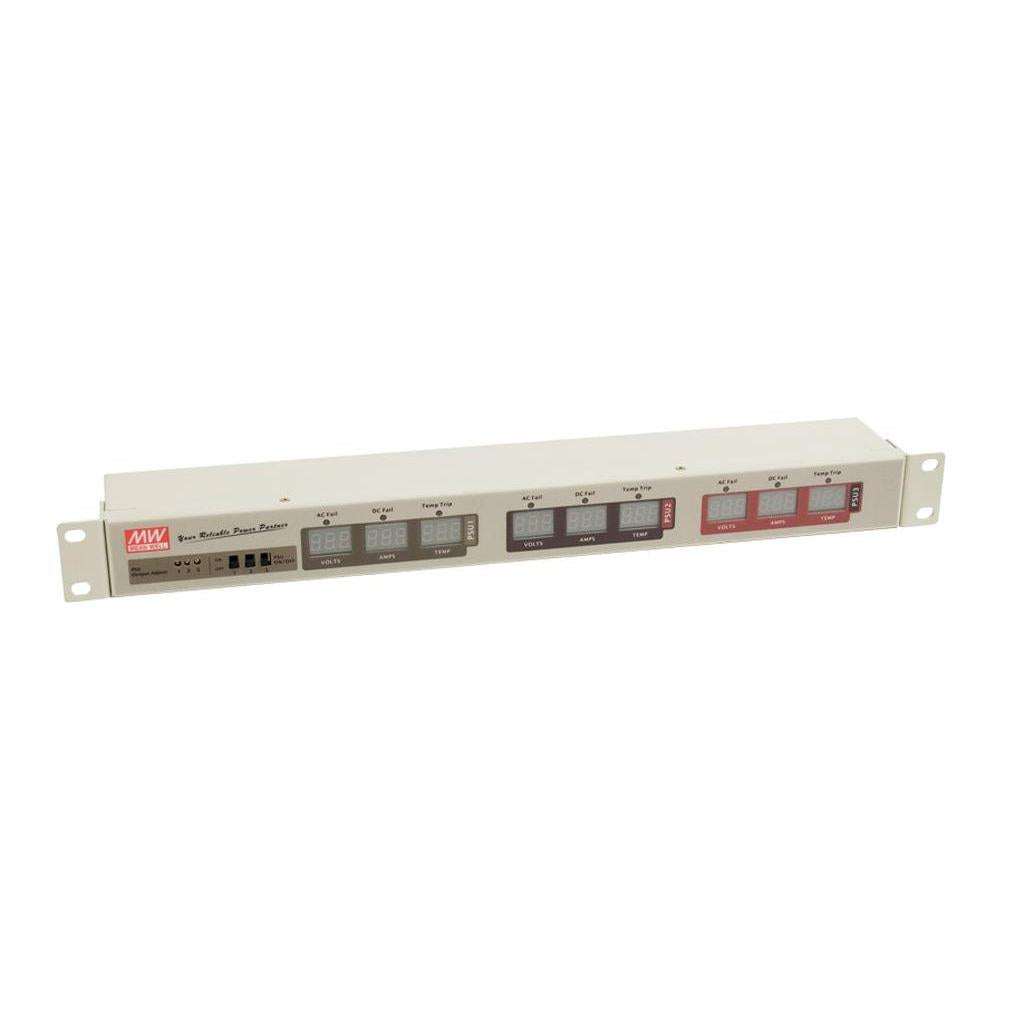

Meanwell RCP-MU 1U Rack Power Control and Monitor Unit
Please Login for Pricing
Description
Description
The RCP is a 3000W Mean Well power converter (input range: 90~264VAC, operating temperature: -20~+60℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -20~+60℃
- ✓ Protections: Over temperature
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION 20 ~ 90% RH non-condensing -40 ~ +85 ± 0.02%/ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 ℃ ) 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRCP Series
-
Warranty3 Year
-
Length44 cm
-
Width6.8 cm
-
Height4.4 cm
-
Weight1.15 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Meanwell RCP-MU do in an RCP rack power system?
The RCP-MU is a 1U rack power control and monitor unit designed to manage up to 3 RCP-1000 power supply units. It provides front-panel monitoring for output voltage, output current, and internal temperature. It also supports front-panel output voltage adjustment for the connected RCP-1000 units.
Which power supply models is the RCP-MU compatible with?
This model is intended for use with Mean Well RCP-1000 units. It is suitable for RCP output versions in 12V, 24V, and 48V systems. That makes it a fit for buyers standardizing on the RCP-1000 platform across different DC output voltages.
What monitoring information is available on the front panel of the RCP-MU?
The front panel includes digital meters for output voltage, output current, and internal temperature. These readings help operators check system status quickly without relying on external metering for basic visibility. The unit also includes LED indicators and relay contacts for AC fail, DC fail, and over-temperature warnings.
Is the Meanwell RCP-MU intended for rack-mounted applications?
Yes. The RCP-MU uses a 1U low-profile form factor and is built for 19-inch rack mounting. It is suited to rack power environments where centralized monitoring and control of multiple RCP-1000 units is required.
Why choose the RCP-MU instead of using standalone RCP-1000 units without a monitor module?
The RCP-MU adds centralized control and status visibility for up to three RCP-1000 power supplies in one rack system. Instead of checking each unit separately, users get front-panel monitoring, warning indication, and output voltage adjustment access in a dedicated 1U controller. That makes it more suitable for organized high-power rack installations that need easier supervision.
