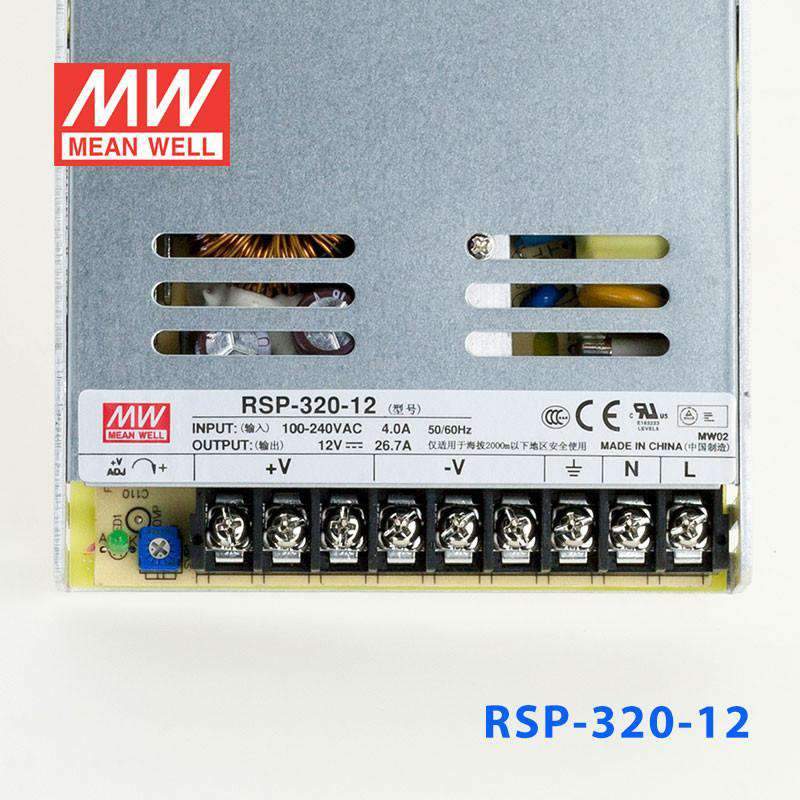

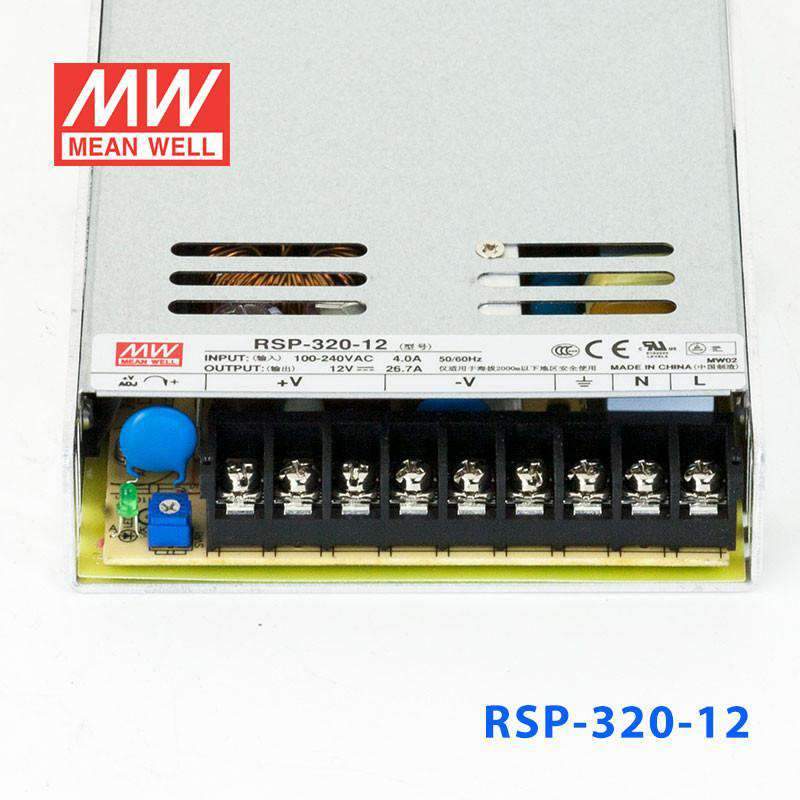

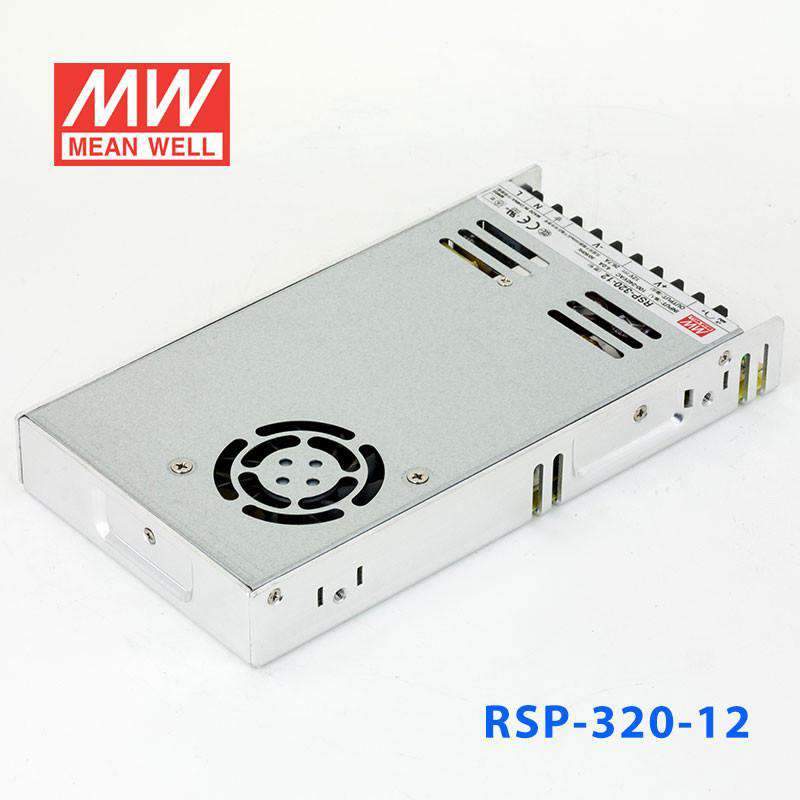

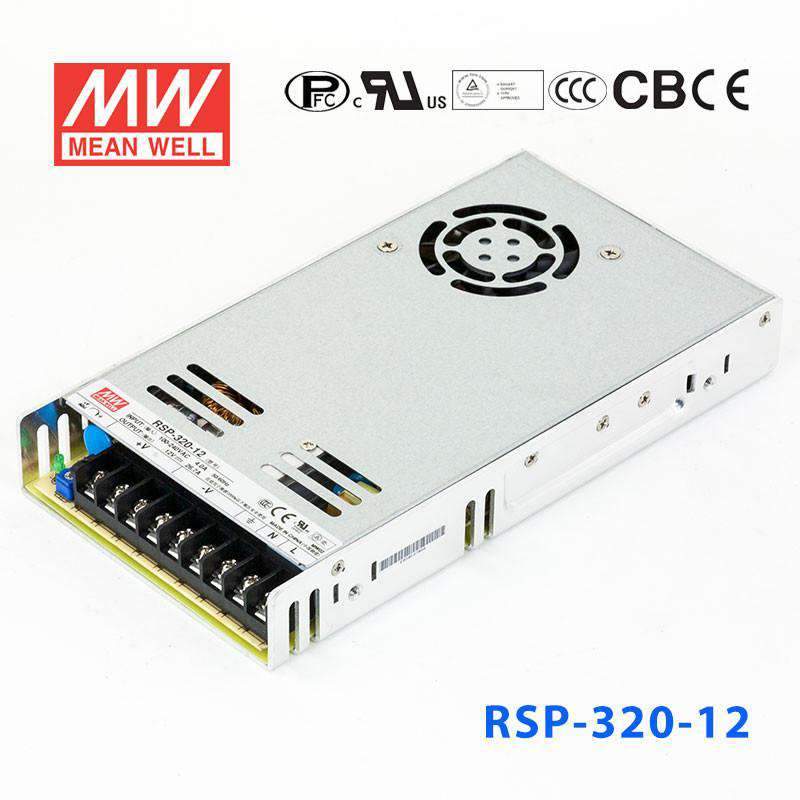

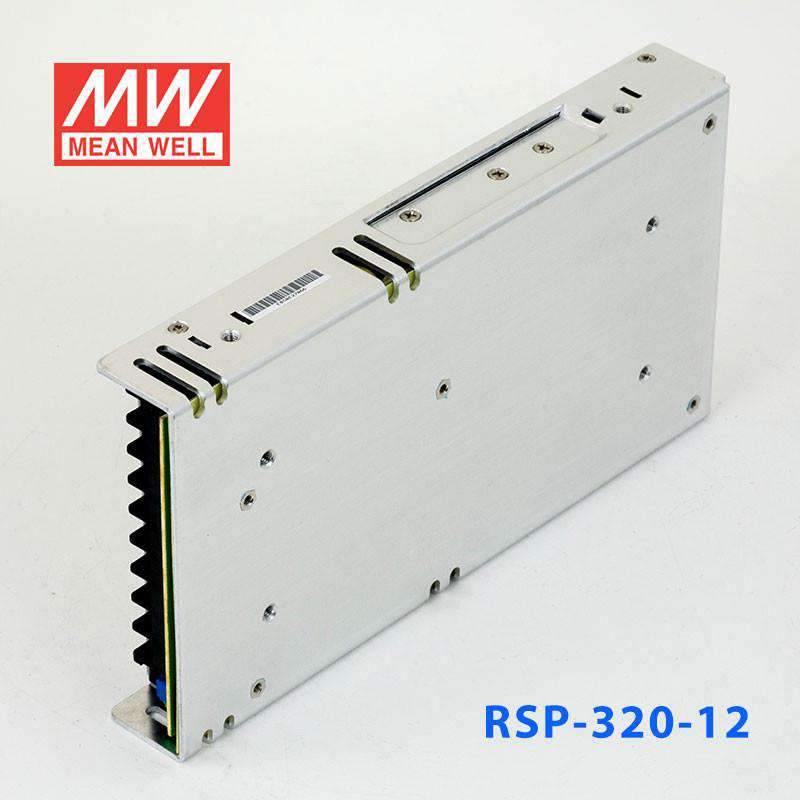

Mean Well RSP-320-12 Power Supply 320W 12V
Please Login for Pricing
Description
Description
The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating320.4 Watt
-
Output Voltage12 Volt
-
Rated Current26.7 Ampere
-
Input Voltage88V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.9 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kinds of equipment can the RSP-320-12 power at 12V?
The RSP-320-12 provides 320.4W at 12V with 26.7A output, suitable for powering networking switches, embedded computing modules, and light industrial control panels. Its 1U low-profile form factor (215.0 × 115.0 × 30.0 mm) allows it to fit within standard rack-mount enclosures.
What is the operating temperature range of the RSP-320-12?
The RSP-320-12 operates from -30°C to +70°C ambient. It carries certifications including UL, CE, TÜV, CB, CCC, BSMI, and EAC and is designed for indoor enclosed installations.
How does the RSP-320-12 compare to other voltage options in the RSP-320 line?
The RSP-320 series shares the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input across voltage variants. The RSP-320-12 delivers 320.4W at 26.7A, while the RSP-320-24 provides 320W at 13.4A and the RSP-320-48 provides 320W at 6.7A. Lower voltage variants offer higher current ratings within the same power envelope.
Does the RSP-320-12 accept universal AC input?
Yes. The RSP-320-12 accepts 88-264VAC, covering both 100V and 200V-class single-phase AC systems worldwide. This makes it suitable for global deployment without requiring voltage selection switches.
