Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

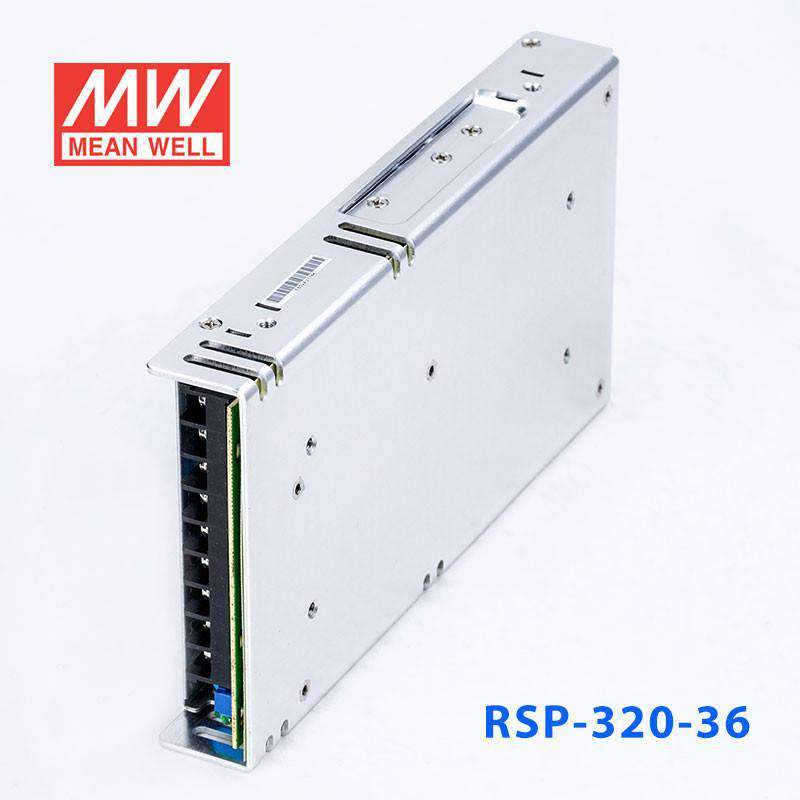

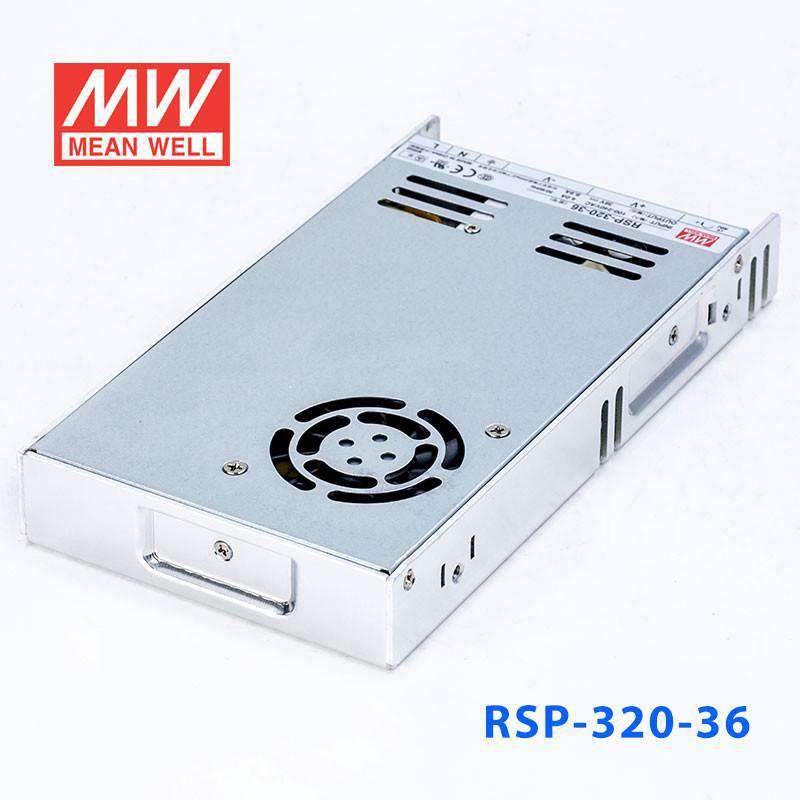

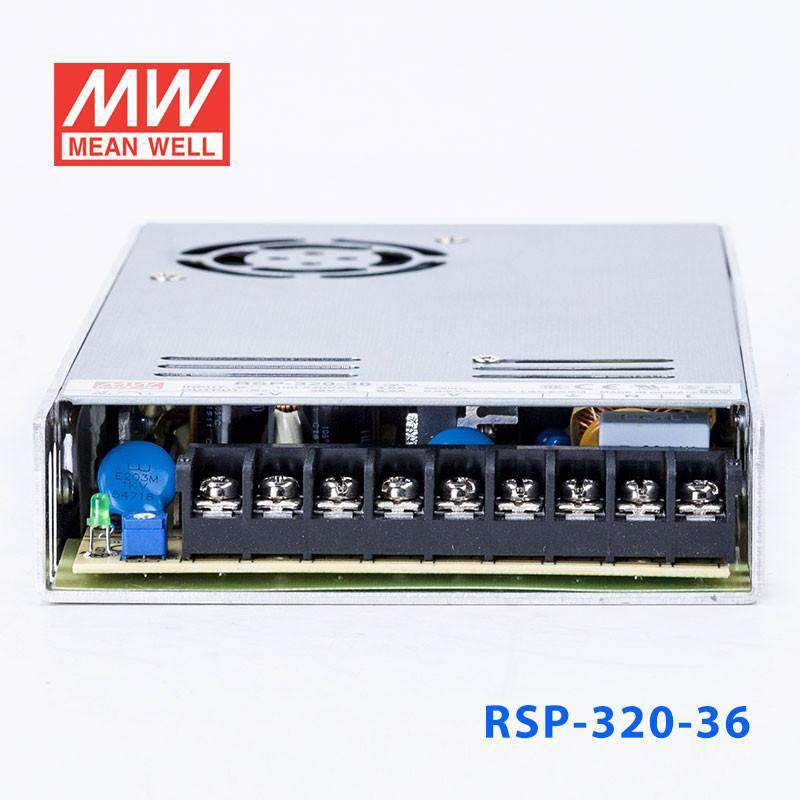

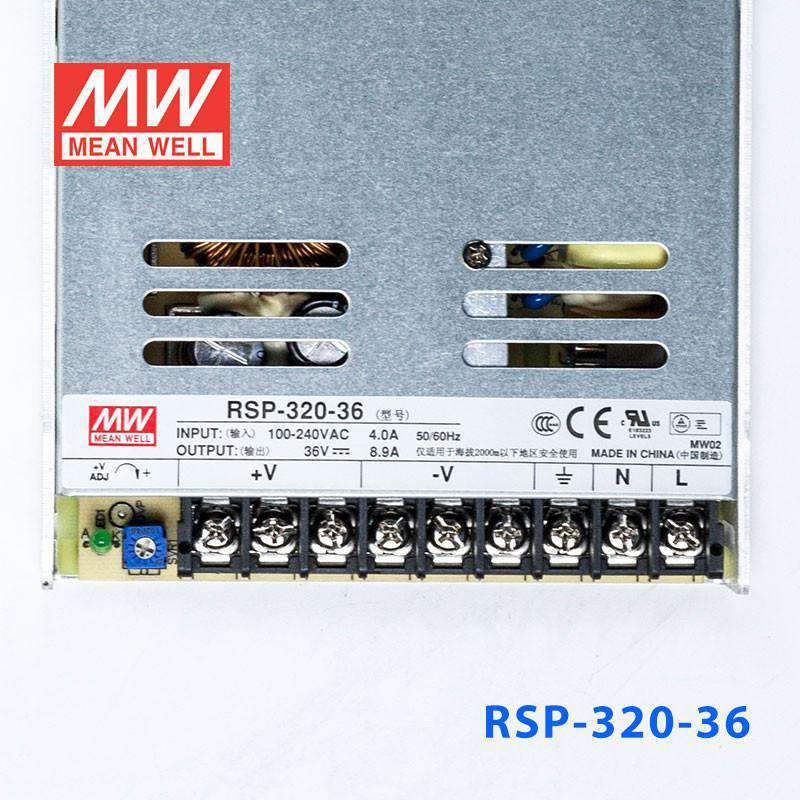

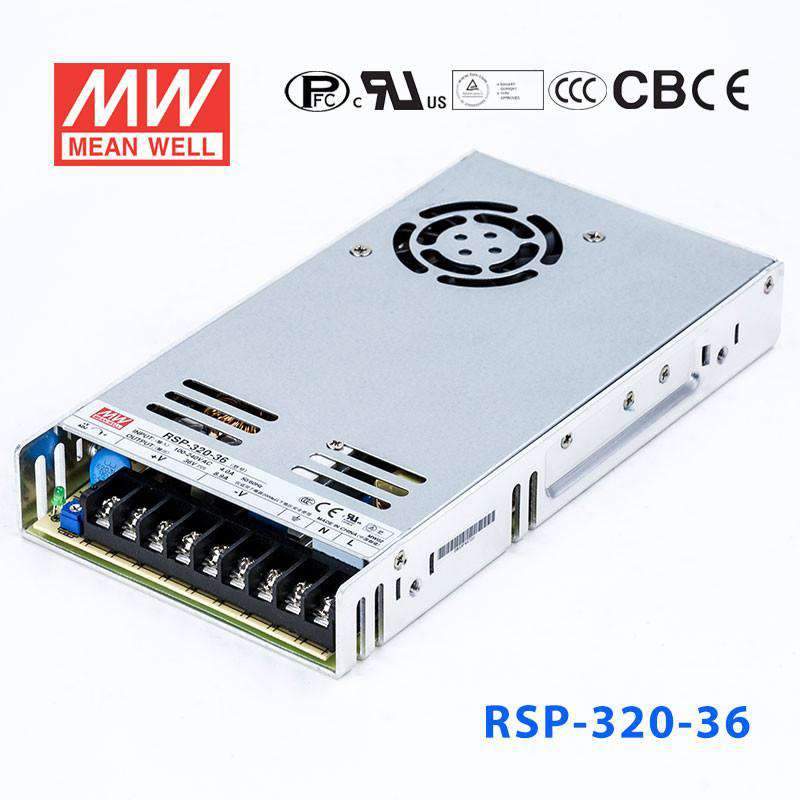

Mean Well RSP-320-36 Power Supply 320W 36V

1U low profile with active PFC, high efficiency

SKU:

RSP-320-36

Model

200W 36V

SKU: RSP-200-36

1600W 36V

SKU: RSP-1600-36

320W 36V

SKU: RSP-320-36

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).

Key Features

✓ Input voltage range: 88~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: AS/NZS 60950.1
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

RSP Series
Power Rating

320 Watt
Output Voltage

36 Volt
Rated Current

8.9 Ampere
Input Voltage

88V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

21.5 cm
Width

11.5 cm
Height

3 cm
Weight

0.9 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What equipment uses 36V DC that the RSP-320-36 can serve?

The RSP-320-36 provides 36V at 8.9A (320W), suitable for powering certain brushless DC motors, industrial field instruments, and relay-controlled actuator systems that specify a 36V nominal rail.

Is the RSP-320-36 suitable for low-temperature enclosed environments?

Yes. The RSP-320-36 operates from -30°C to +70°C, making it appropriate for cold-climate indoor enclosures. It is not rated for direct outdoor or wet-area use.

How does the RSP-320-36 compare to the RSP-320-27 and RSP-320-48 in the same series?

All three share the 215.0 × 115.0 × 30.0 mm form factor and 88-264VAC input. The RSP-320-27 provides 320W at 11.9A, the RSP-320-36 provides 320W at 8.9A, and the RSP-320-48 provides 320W at 6.7A. Current output decreases proportionally as voltage increases while total power stays near 320W.

Does the RSP-320-36 carry global safety certifications?

Yes. The RSP-320-36 is certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL and includes a 3-year warranty. The unit weighs 0.9 kg.

Model	Power	Voltage	Current
Mean Well RSP-320-12 Power Supply 320W 12V	320.4W	12V	26.7A	View
Mean Well RSP-320-24 Power Supply 320W 24V	320W	24V	13.4A	View
Mean Well RSP-320-7.5 Power Supply 300W 7.5V	300W	7.5V	40A	View
Mean Well RSP-320-5 Power Supply 300W 5V	300W	5V	60A	View
Mean Well RSP-320-48 Power Supply 320W 48V	320W	48V	6.7A	View
Mean Well RSP-320-4 Power Supply 240W 4V	240W	4V	60A	View
Mean Well RSP-320-3.3 Power Supply 198W 3.3V	198W	3.3V	60A	View
Mean Well RSP-320-27 Power Supply 320W 27V	320W	27V	11.9A	View
Mean Well RSP-320-2.5 Power Supply 320W 2.5V	150W	2.5V	60A	View
Mean Well RSP-320-15 Power Supply 320W 15V	320W	15V	21.4A	View
Mean Well RSP-320-13.5 Power Supply 320W 13.5V	320W	13.5V	23.8A	View
