Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

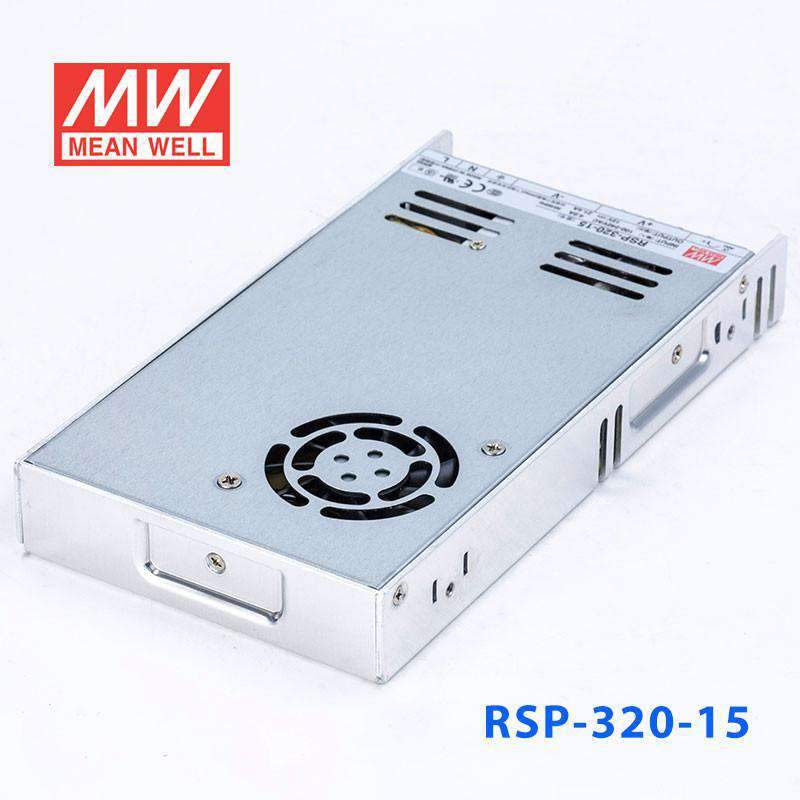

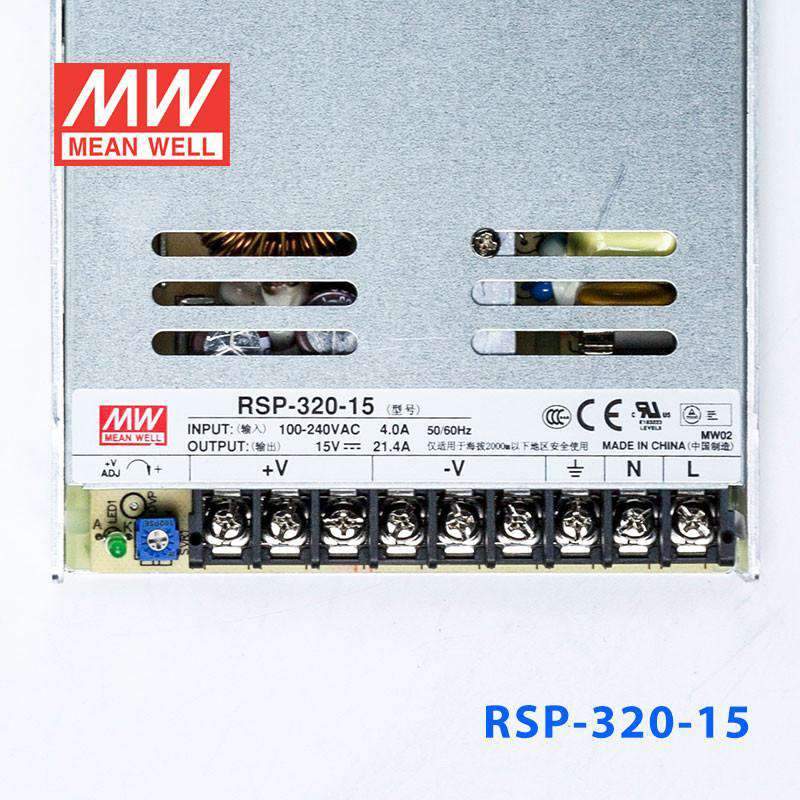

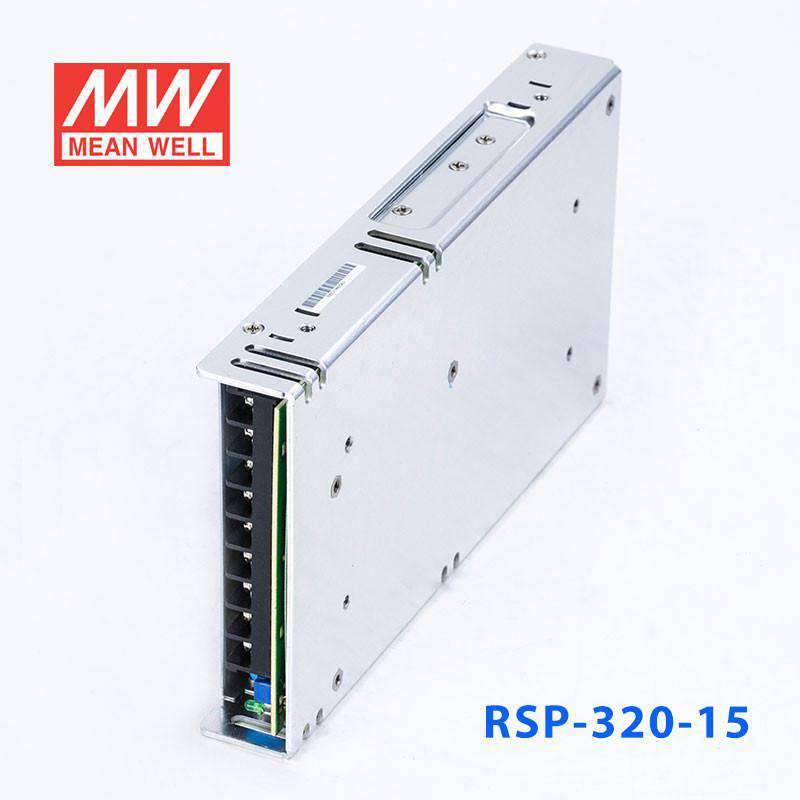

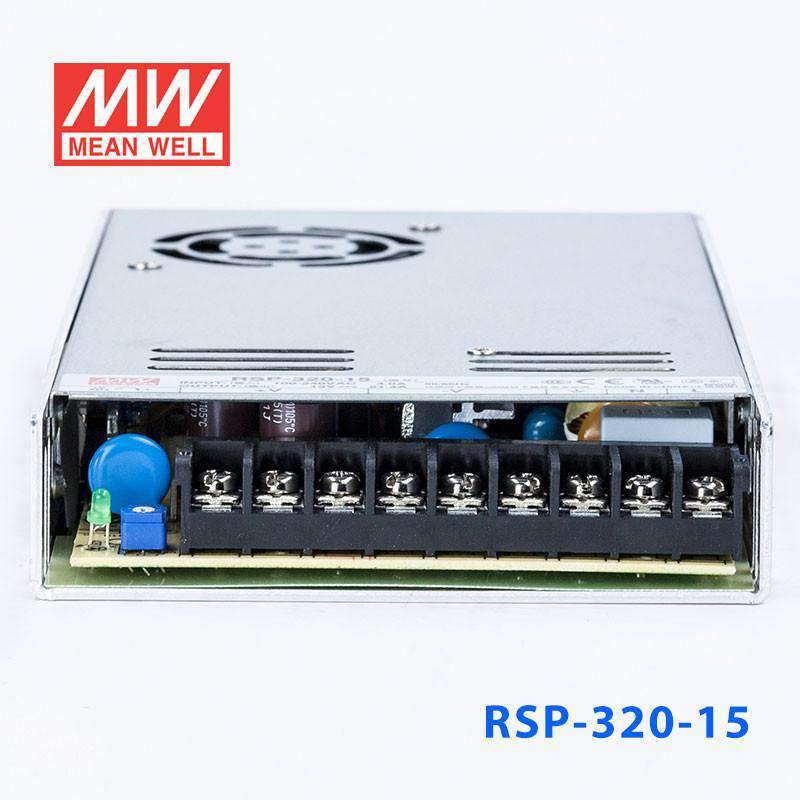

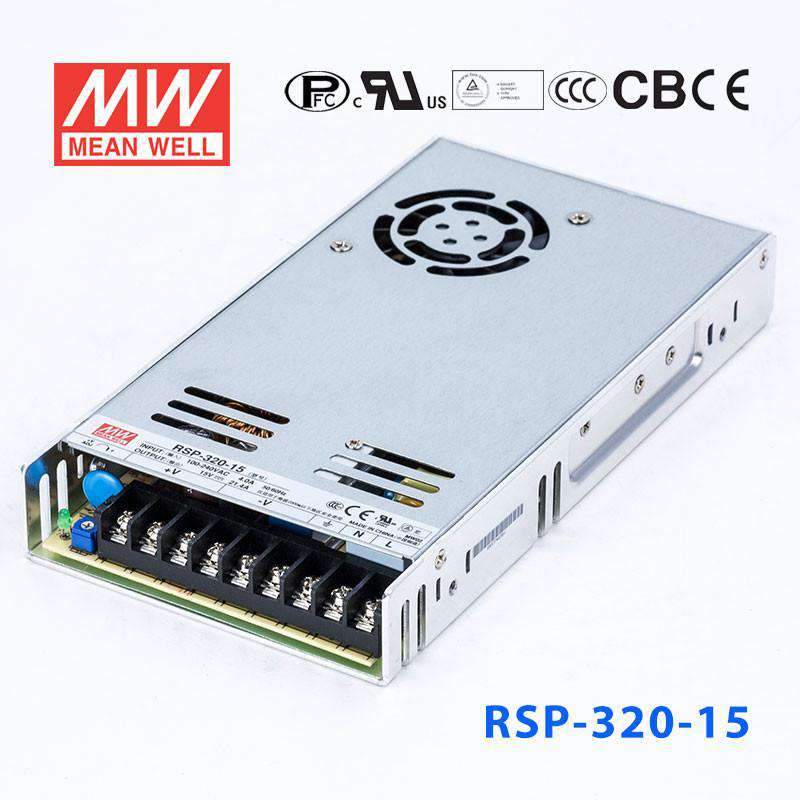

Mean Well RSP-320-15 Power Supply 320W 15V

1U low profile with active PFC, high efficiency
SKU:
RSP-320-15
Model
Please for Pricing
|

Description

The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).

Key Features

  • ✓ Input voltage range: 88~264VAC
  • ✓ DC output voltage adjustable ±10%
  • ✓ 3KVAC reinforced I/O isolation
  • ✓ Protections: Overload / Over voltage / Over temperature
  • ✓ Active PFC — meets international energy efficiency regulations
  • ✓ Safety approvals: AS/NZS 60950.1
  • ✓ 3 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    320 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    21.4 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    21.5 cm
  • Width
    11.5 cm
  • Height
    3 cm
  • Weight
    0.9 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What equipment runs on 15V that the RSP-320-15 can power?

The RSP-320-15 delivers 320W at 15V with 21.4A output. Typical loads include certain industrial sensor arrays, point-of-load converters in rack-mount systems, and equipment designed to operate from a 15V regulated bus.

Is the RSP-320-15 suitable for installations in cold warehouses or outdoor shelters?

The RSP-320-15 operates from -30°C to +70°C and is rated for indoor enclosed use. It does not carry an IP rating for direct outdoor or wet-area installation.

How does the RSP-320-15 compare to the RSP-320-13.5 and RSP-320-24?

Within the RSP-320 series, all units share the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-13.5 provides 320W at 23.8A, the RSP-320-15 provides 320W at 21.4A, and the RSP-320-24 provides 320W at 13.4A. Power remains similar; current ratings decrease as voltage increases.

What is the input voltage range of the RSP-320-15?

The RSP-320-15 accepts 88-264VAC, supporting both 100V-class and 200V-class single-phase AC systems. This universal input range allows worldwide use without manual voltage selection.
