Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

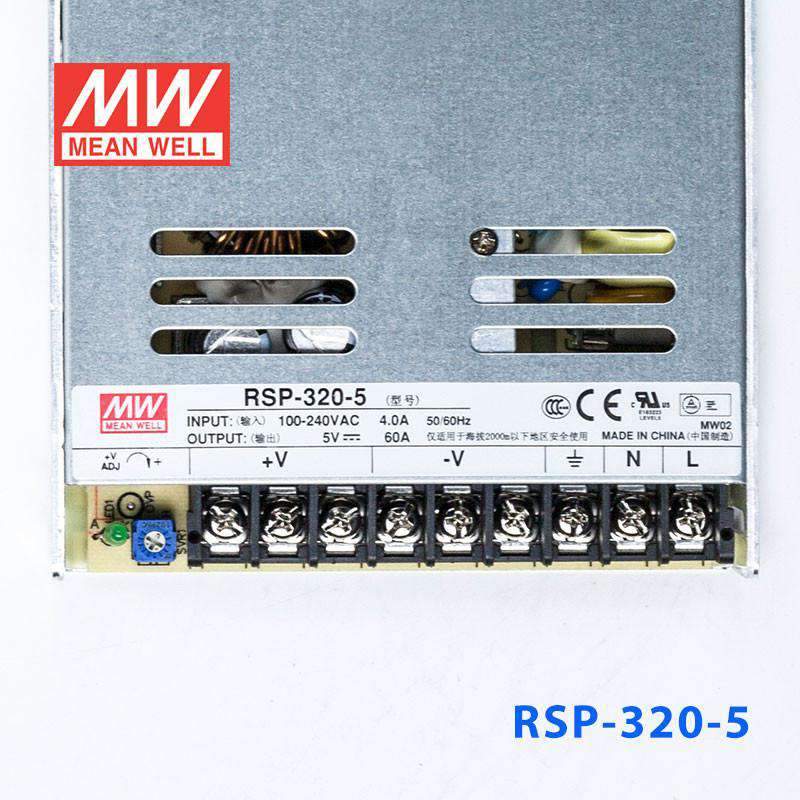

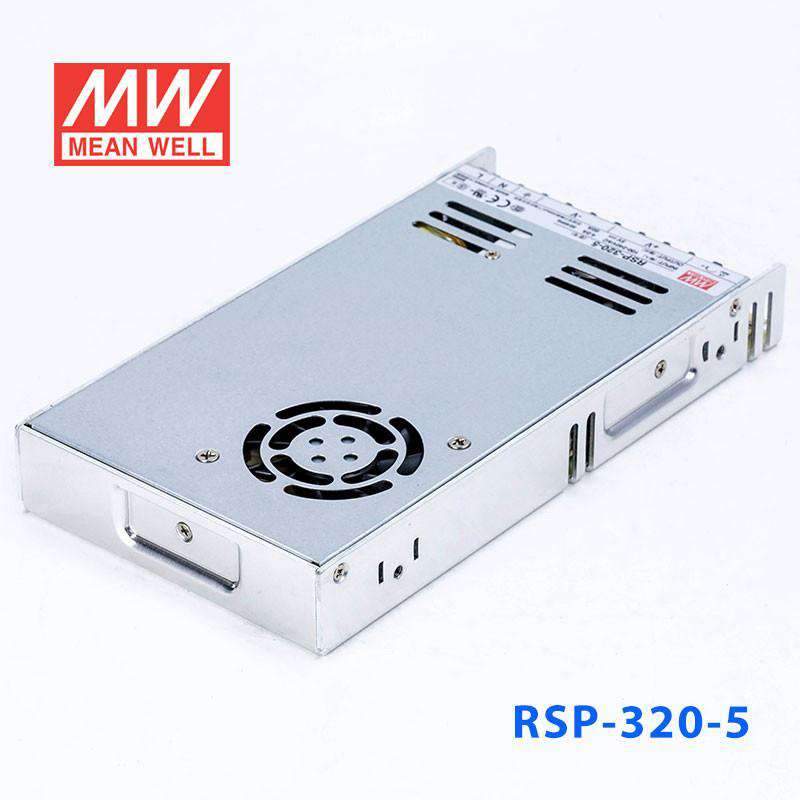

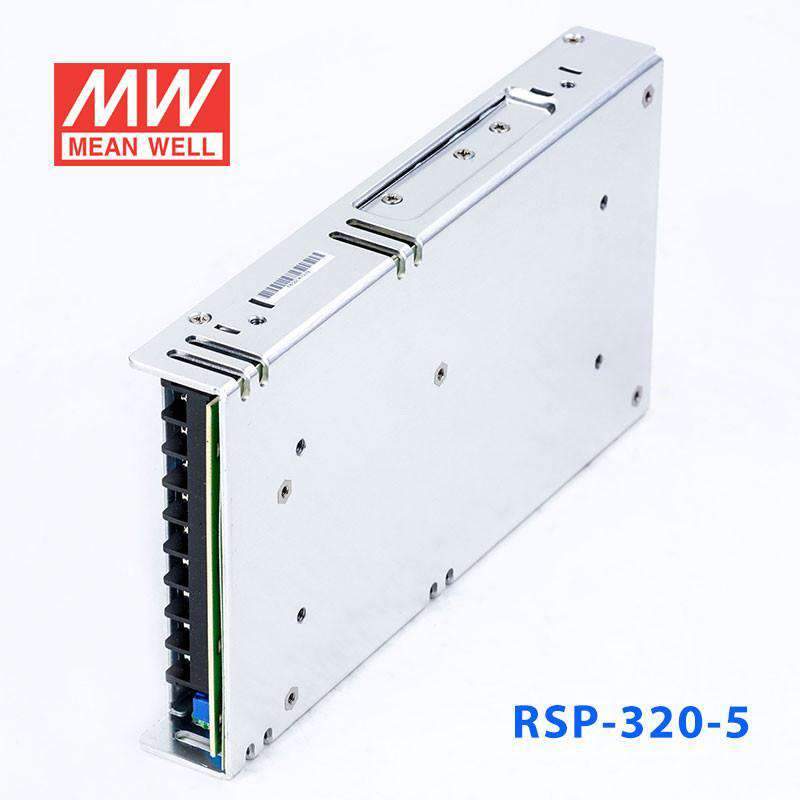

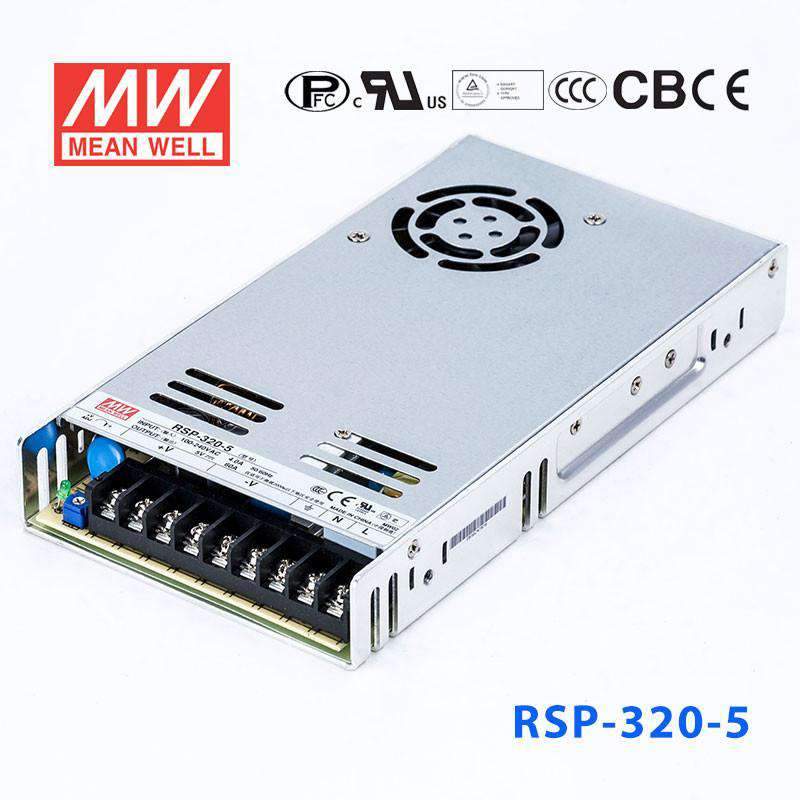

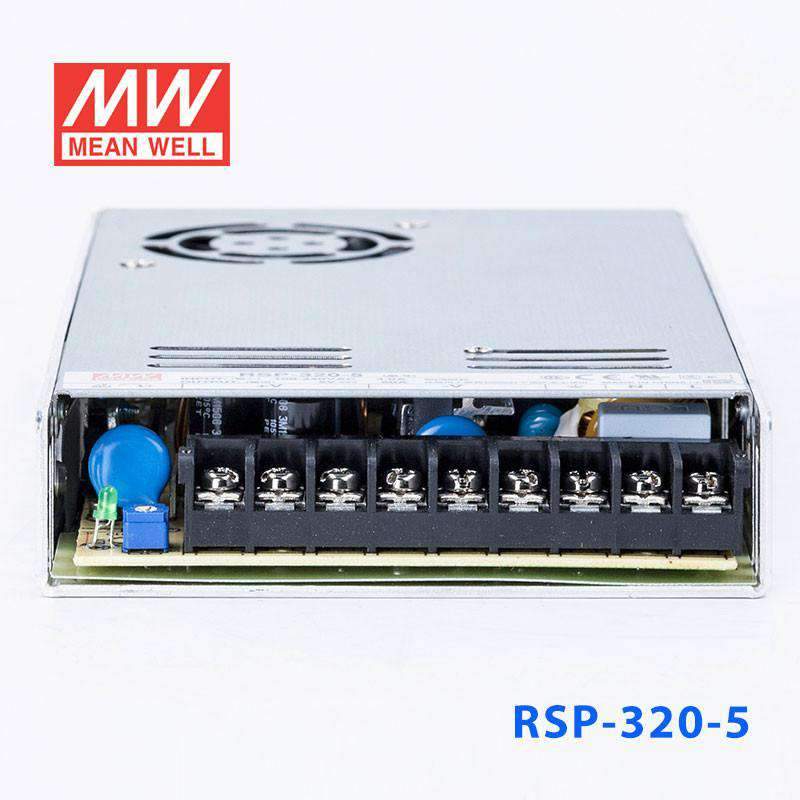

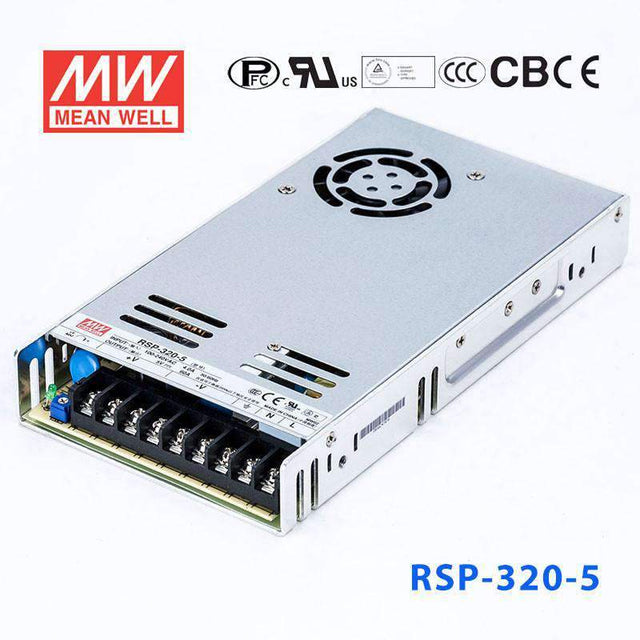

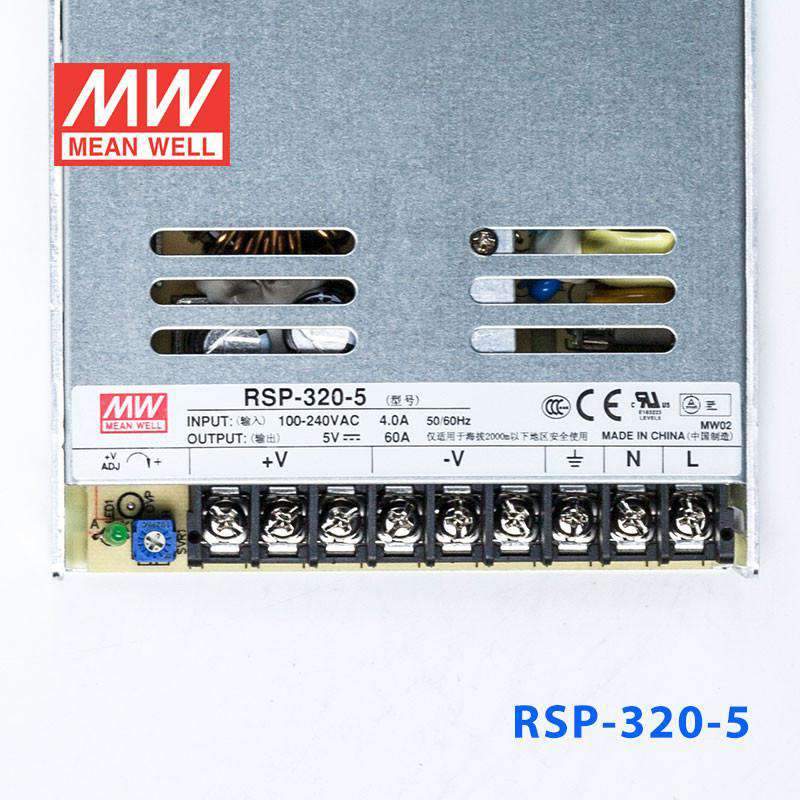

Mean Well RSP-320-5 Power Supply 300W 5V

1U low profile with active PFC, high efficiency
SKU:
RSP-320-5
Model
Please for Pricing
|

Description

The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).

Key Features

  • ✓ Input voltage range: 88~264VAC
  • ✓ DC output voltage adjustable ±10%
  • ✓ 3KVAC reinforced I/O isolation
  • ✓ Protections: Overload / Over voltage / Over temperature
  • ✓ Active PFC — meets international energy efficiency regulations
  • ✓ Safety approvals: AS/NZS 60950.1
  • ✓ 3 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    300 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    60 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    21.5 cm
  • Width
    11.5 cm
  • Height
    3 cm
  • Weight
    0.9 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What can the RSP-320-5 power at 5V in an industrial context?

The RSP-320-5 delivers 5V at 60A (300W), making it suitable for legacy TTL logic systems, single-board computer clusters, and industrial HMI displays requiring a high-current 5V supply. Its 1U form factor (215.0 × 115.0 × 30.0 mm) supports rack-mount deployments.

What ambient temperature range does the RSP-320-5 support?

The RSP-320-5 operates from -30°C to +70°C. It is designed for indoor enclosed use and certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL.

How does the RSP-320-5 compare to the RSP-320-4 and RSP-320-7.5?

All three share the 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-4 provides 240W at 60A, the RSP-320-5 provides 300W at 60A, and the RSP-320-7.5 provides 300W at 40A. The RSP-320-5 and RSP-320-7.5 share the same total wattage but differ in output voltage and current.

What is the actual rated power of the RSP-320-5?

The RSP-320-5 is rated at 300W (5V × 60A). It includes built-in active PFC and weighs 0.9 kg.
