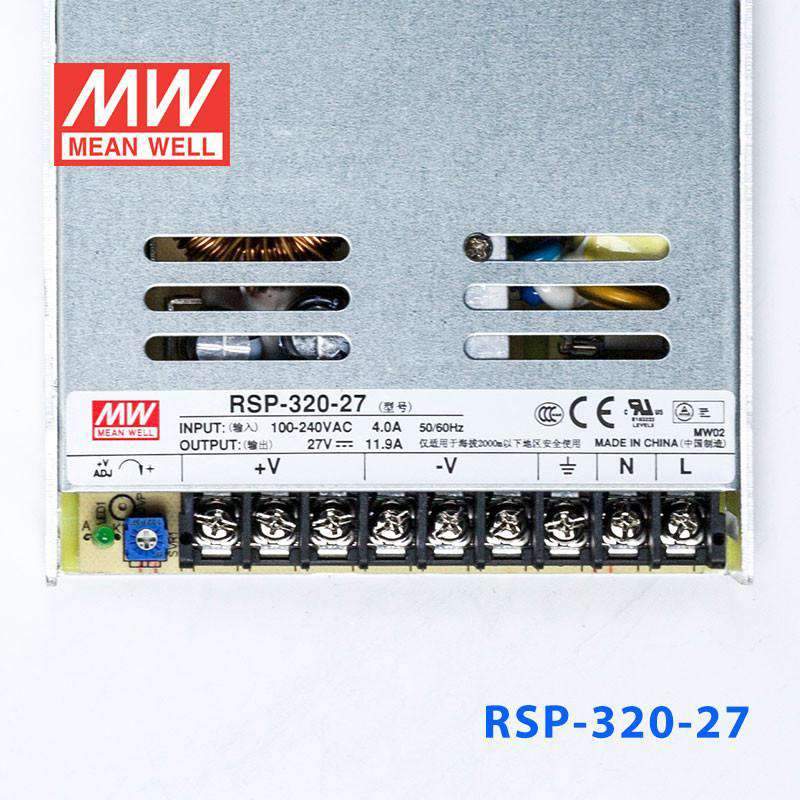

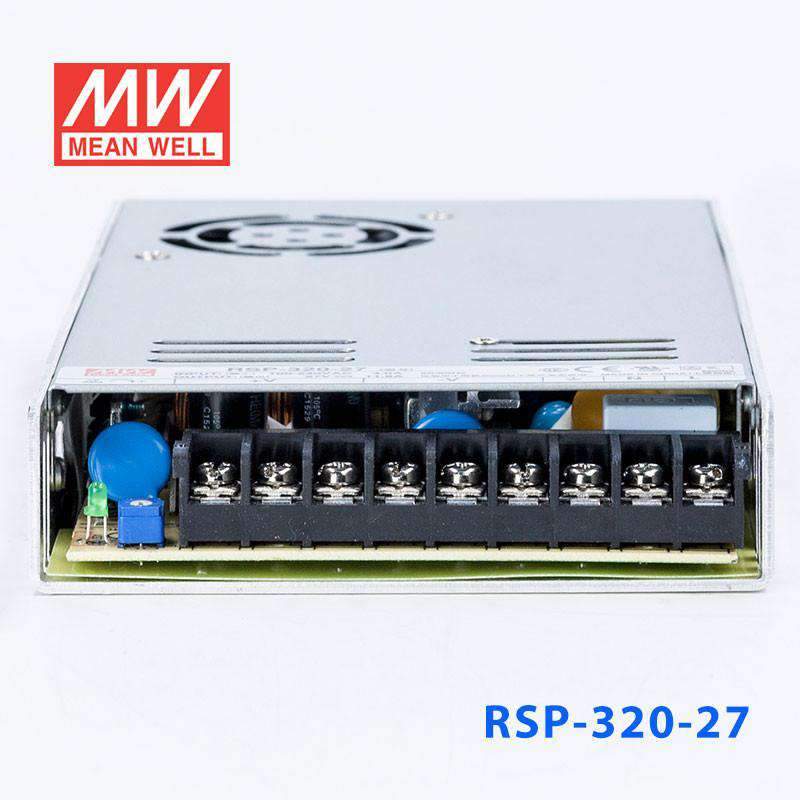

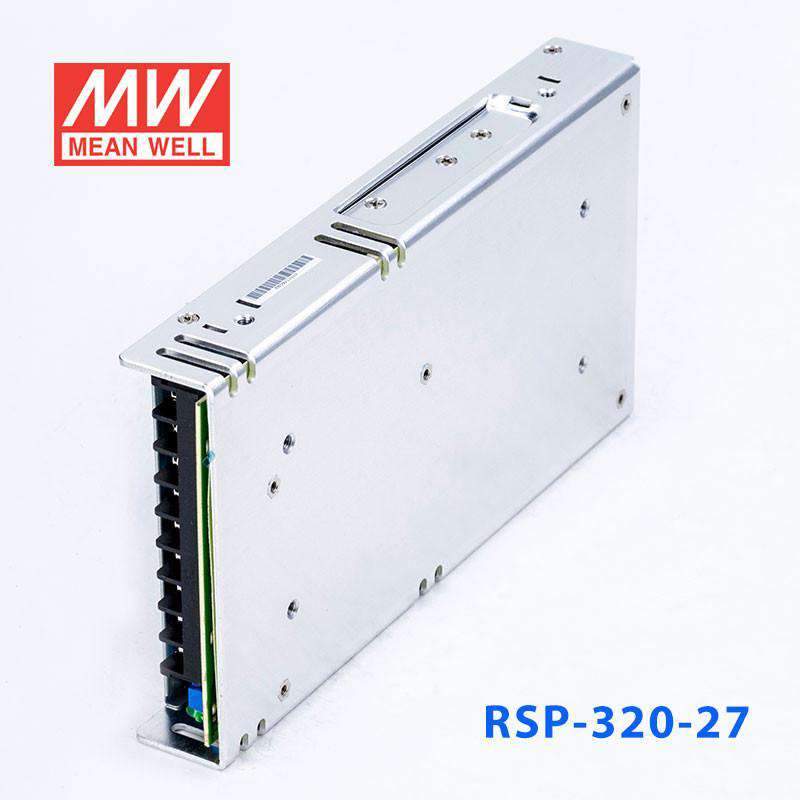

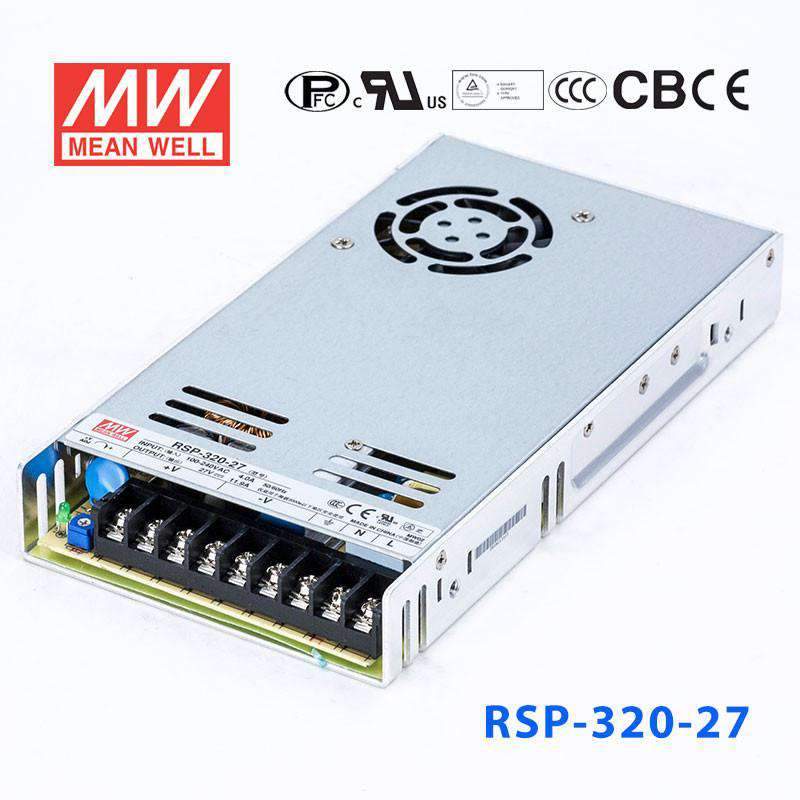

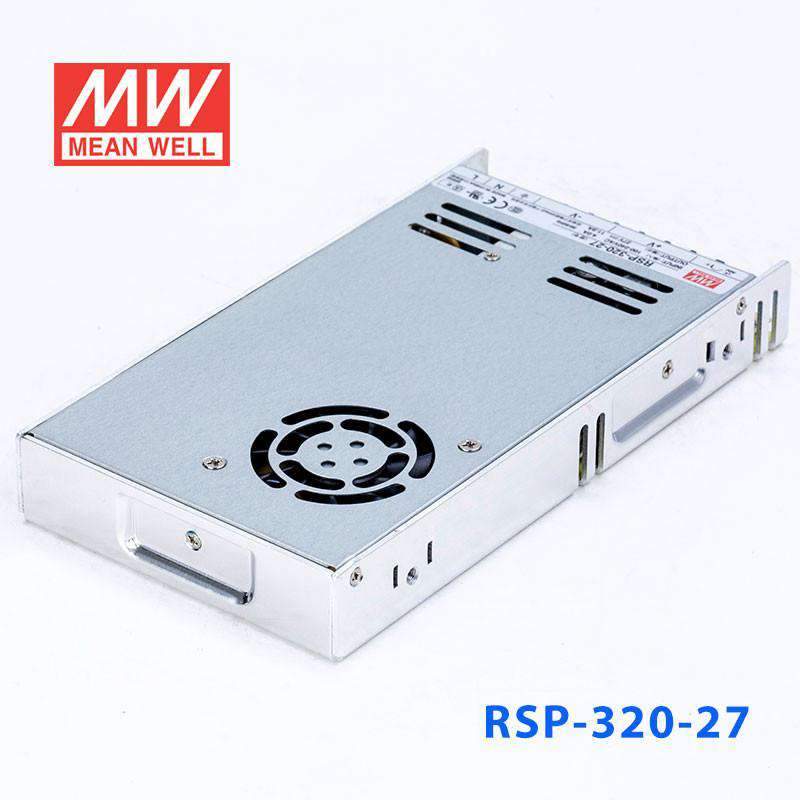

Mean Well RSP-320-27 Power Supply 320W 27V


|

Description

Features

1U low profile
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 88~264VAC; 124~370VDC
AC inrush current (max.) Cold start, 40A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 105%~135%
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection Range 115%~145%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254
Connection Input 9P / 9.5mm pitch terminal block
Connection Output 9P / 9.5mm pitch terminal block
Dimension (LxWxH) 215x115x30
Case No. 207A

Specifications

  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    320 Watt
  • Output Voltage
    27 Volt
  • Rated Current
    11.9 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    21.5 cm
  • Width
    11.5 cm
  • Height
    3 cm
  • Weight
    0.9 kg
