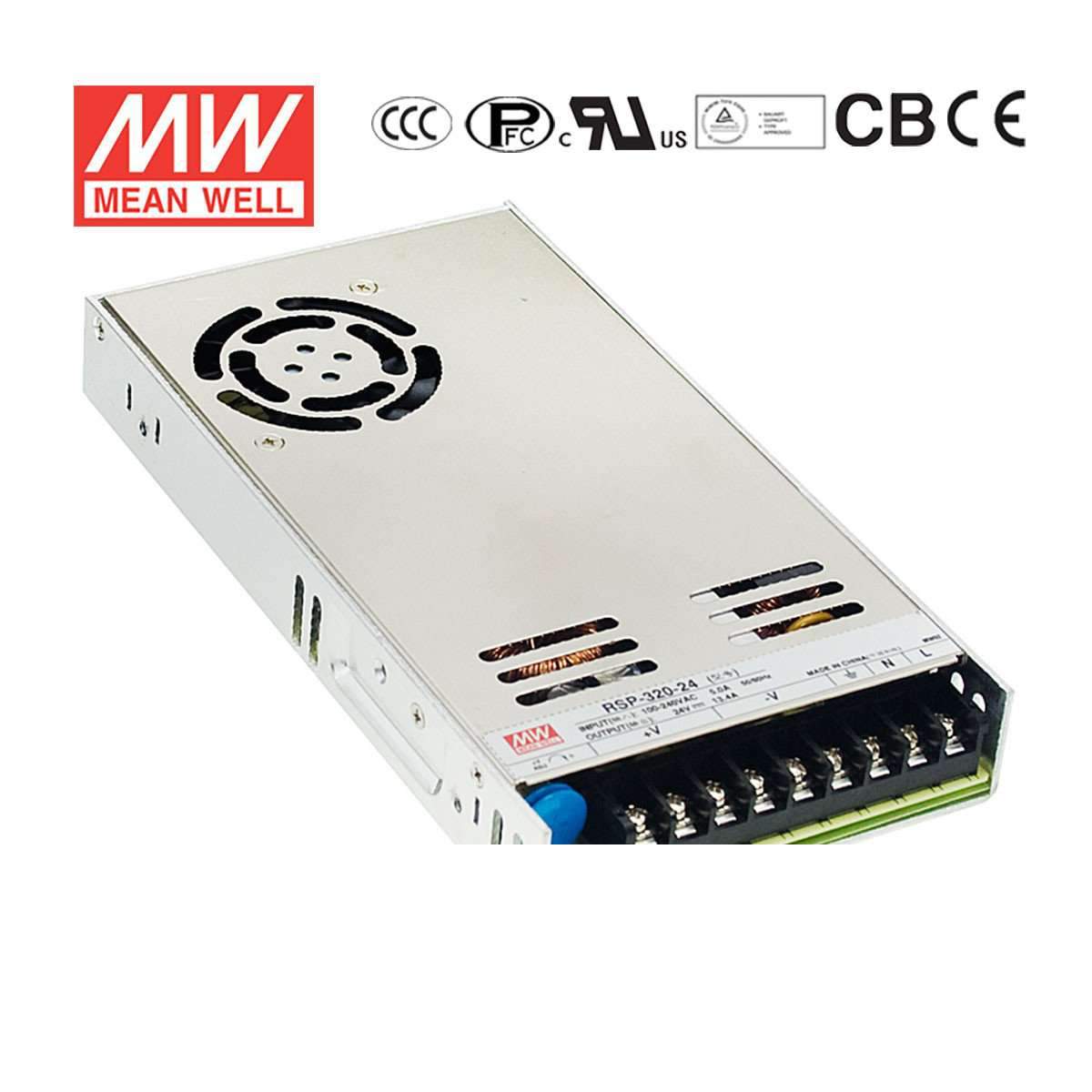

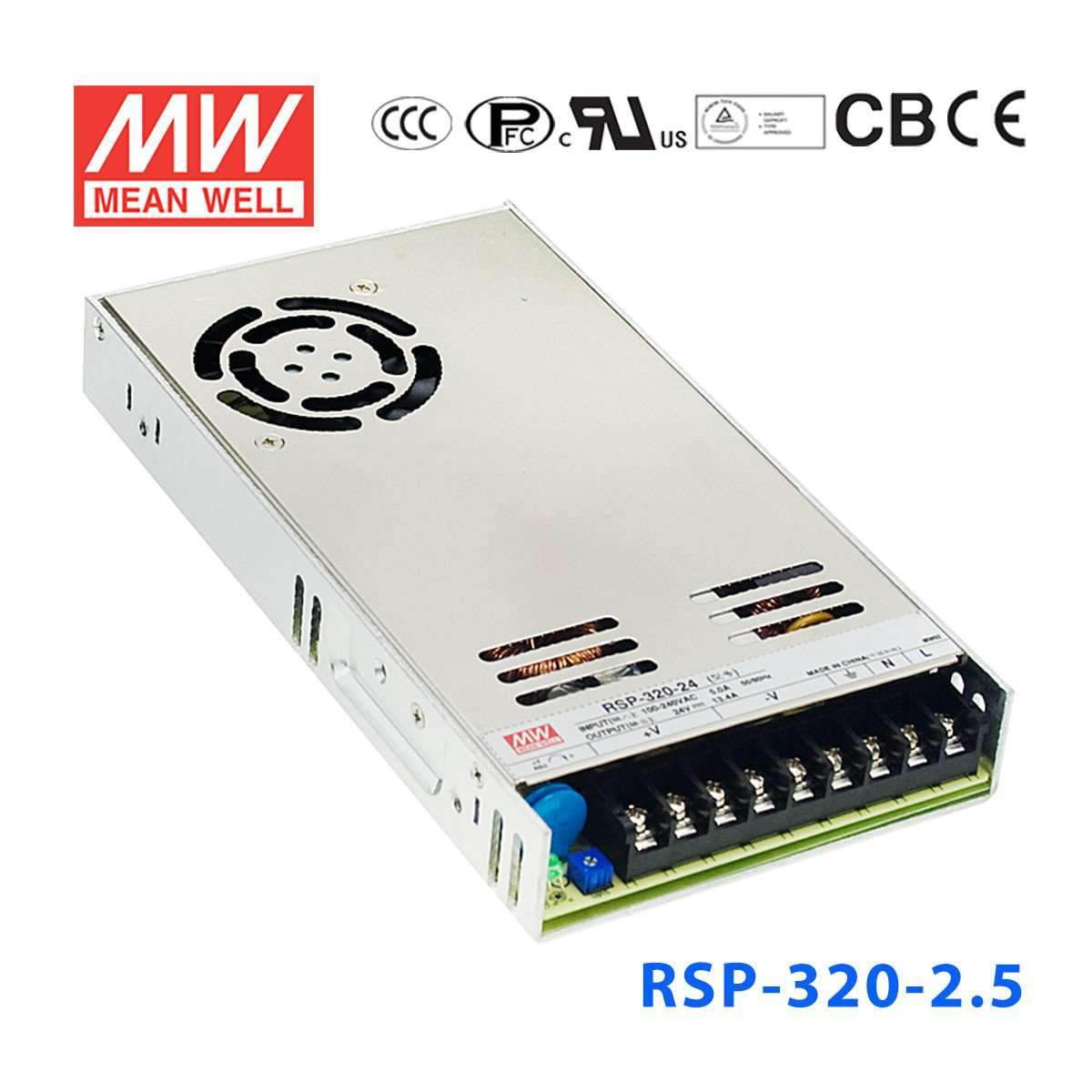

Mean Well RSP-320-2.5 Power Supply 320W 2.5V
Please Login for Pricing
Description
Description
The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating150 Watt
-
Output Voltage2.5 Volt
-
Rated Current60 Ampere
-
Input Voltage88V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.9 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications use a 2.5V supply like the RSP-320-2.5?
The RSP-320-2.5 delivers 2.5V at 60A (150W actual output). This voltage level is used in FPGA core power rails, low-voltage logic bus systems, and certain semiconductor test equipment that requires a stable, high-current 2.5V source.
What is the ambient operating range of the RSP-320-2.5?
The RSP-320-2.5 operates from -30°C to +70°C. It is designed for indoor enclosed use and is certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL.
How does the RSP-320-2.5 differ from the RSP-320-3.3 and RSP-320-4 at low voltages?
All three are 1U units sharing the same 215.0 × 115.0 × 30.0 mm form factor. The RSP-320-2.5 outputs 2.5V at 60A for 150W total, the RSP-320-3.3 outputs 3.3V at 60A for 198W, and the RSP-320-4 outputs 4V at 60A for 240W. Higher voltages yield proportionally higher power at the same current.
What is the actual rated power output of the RSP-320-2.5?
Despite the RSP-320 naming, the RSP-320-2.5 is rated at 150W (2.5V × 60A). The lower voltage limits total output power compared to other RSP-320 variants. It accepts 88-264VAC universal input.
