Mean Well

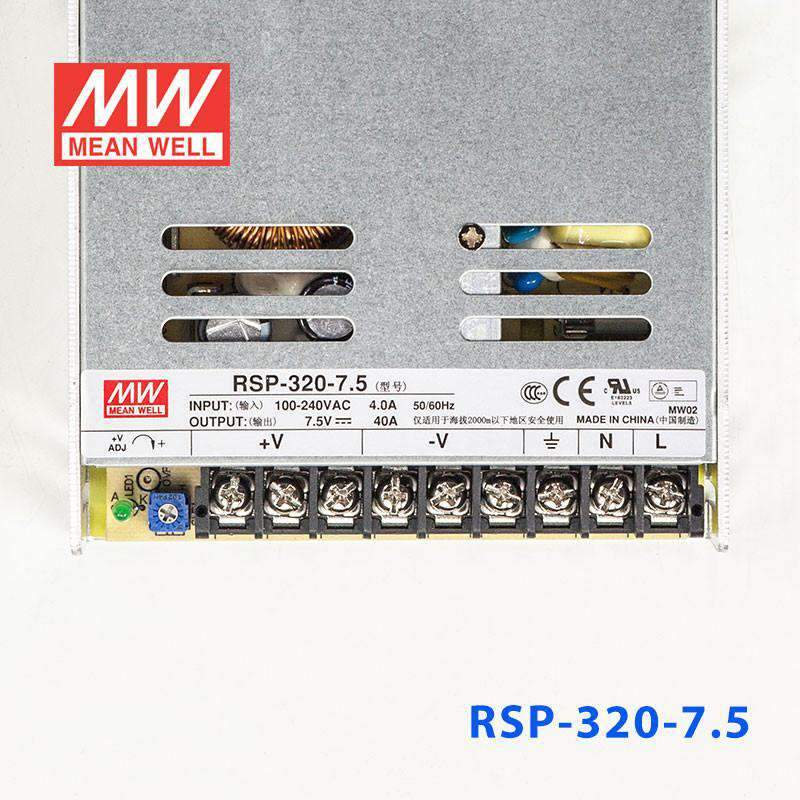

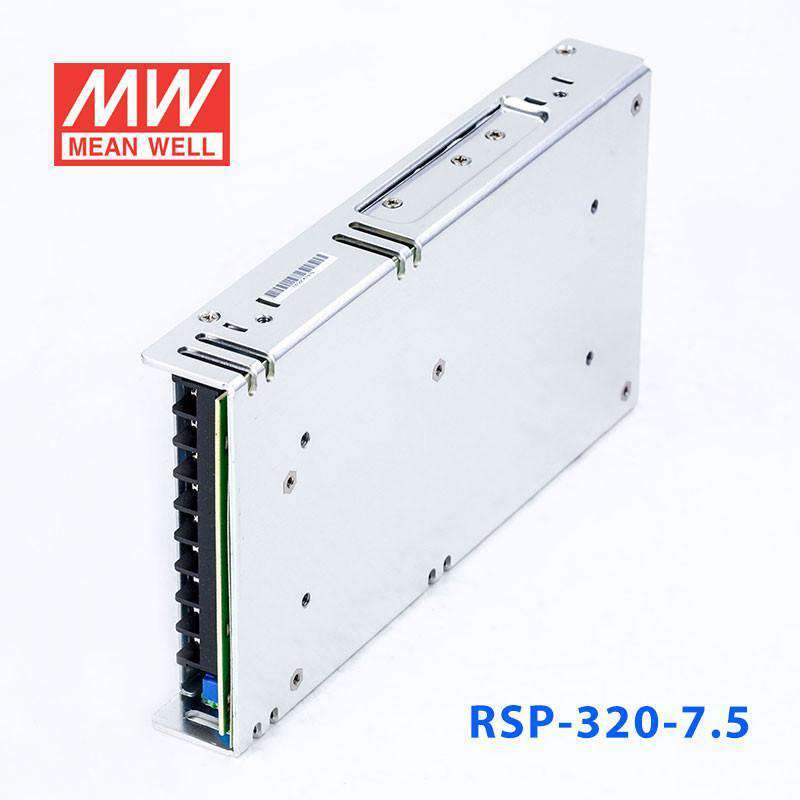

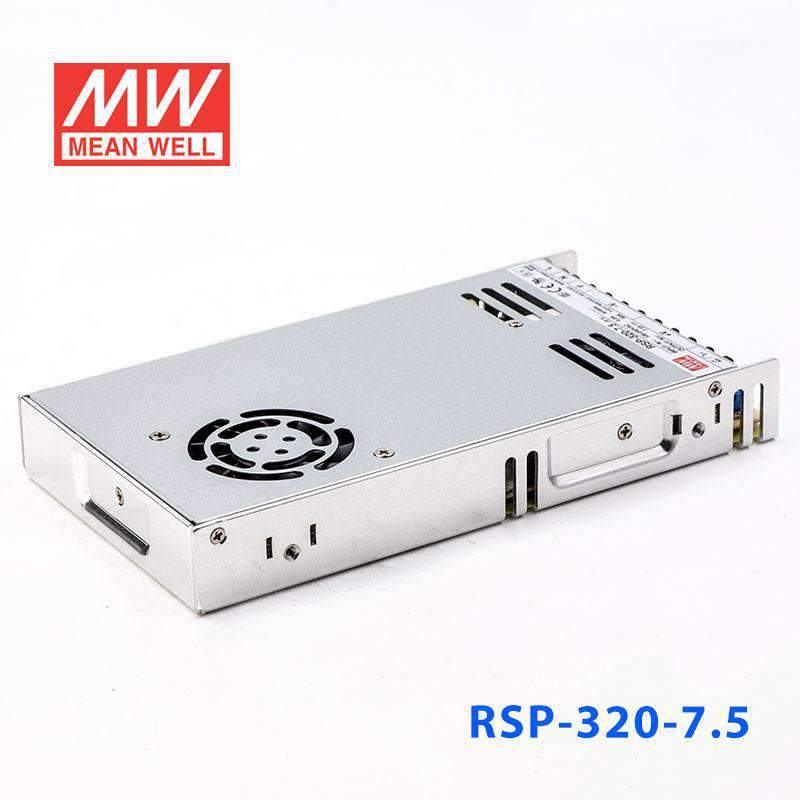

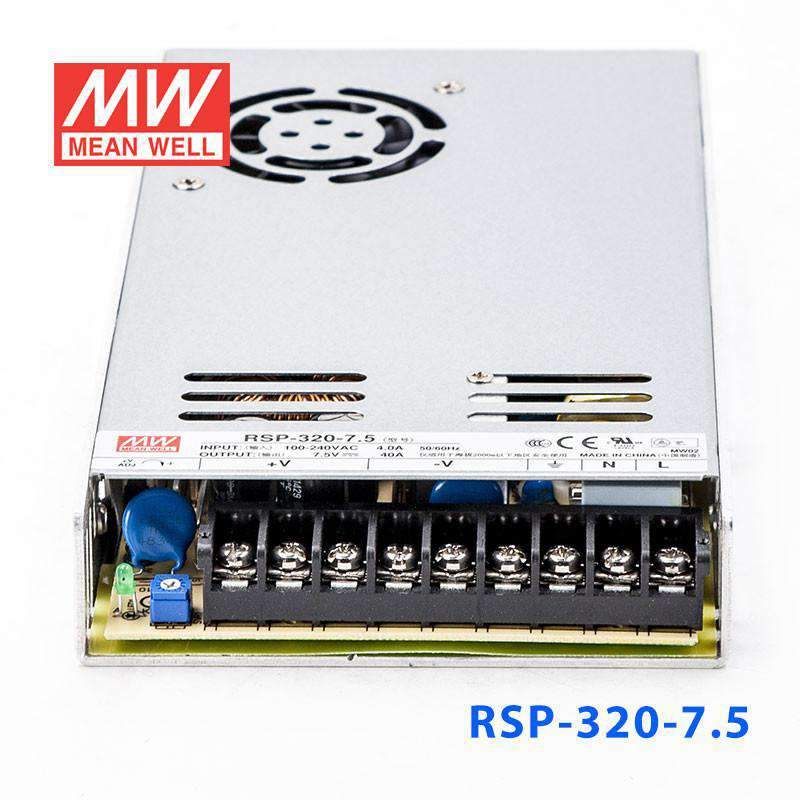

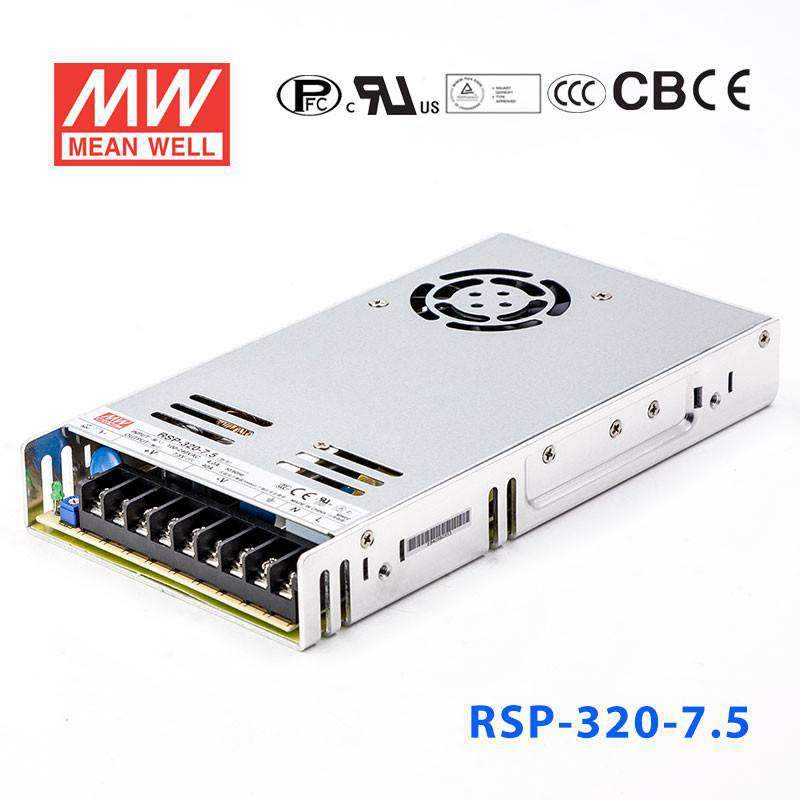

Mean Well RSP-320-7.5 Power Supply 300W 7.5V

1U low profile with active PFC, high efficiency
SKU:
RSP-320-7.5
Model
Please for Pricing
|

Description

The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).

Key Features

  • ✓ Input voltage range: 88~264VAC
  • ✓ DC output voltage adjustable ±10%
  • ✓ 3KVAC reinforced I/O isolation
  • ✓ Protections: Overload / Over voltage / Over temperature
  • ✓ Active PFC — meets international energy efficiency regulations
  • ✓ Safety approvals: AS/NZS 60950.1
  • ✓ 3 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    300 Watt
  • Output Voltage
    7.5 Volt
  • Rated Current
    40 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    21.5 cm
  • Width
    11.5 cm
  • Height
    3 cm
  • Weight
    0.9 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What industrial equipment uses 7.5V DC that the RSP-320-7.5 can serve?

The RSP-320-7.5 provides 7.5V at 40A (300W), suitable for intermediate bus converters, certain field device power networks, and analog signal processing cards that specify a 7.5V regulated rail. Its compact 1U chassis suits both rack and DIN-rail enclosures.

What is the cold-temperature operating limit of the RSP-320-7.5?

The RSP-320-7.5 operates from -30°C to +70°C, matching the rest of the RSP-320 series. It is rated for indoor enclosed use with no outdoor IP rating.

How does the RSP-320-7.5 compare to the RSP-320-5 and RSP-320-12?

All three use the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-5 delivers 300W at 60A, the RSP-320-7.5 delivers 300W at 40A, and the RSP-320-12 delivers 320.4W at 26.7A. The RSP-320-7.5 and RSP-320-5 share the same 300W power rating while the RSP-320-12 is slightly higher.

Does the RSP-320-7.5 include power factor correction?

Yes. The RSP-320-7.5 includes built-in active PFC. It weighs 0.9 kg and carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications with a 3-year warranty.
