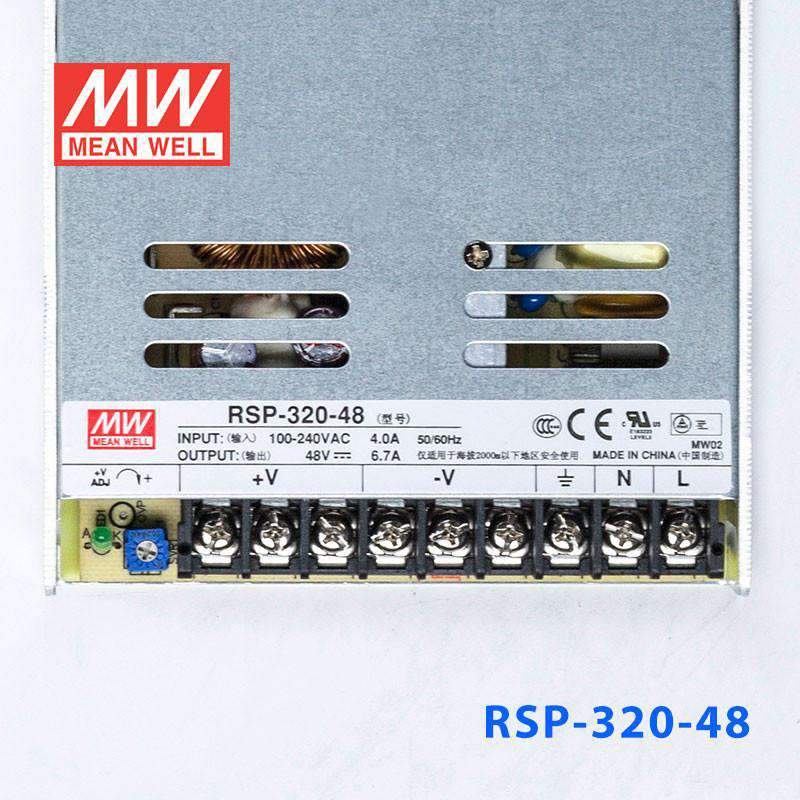

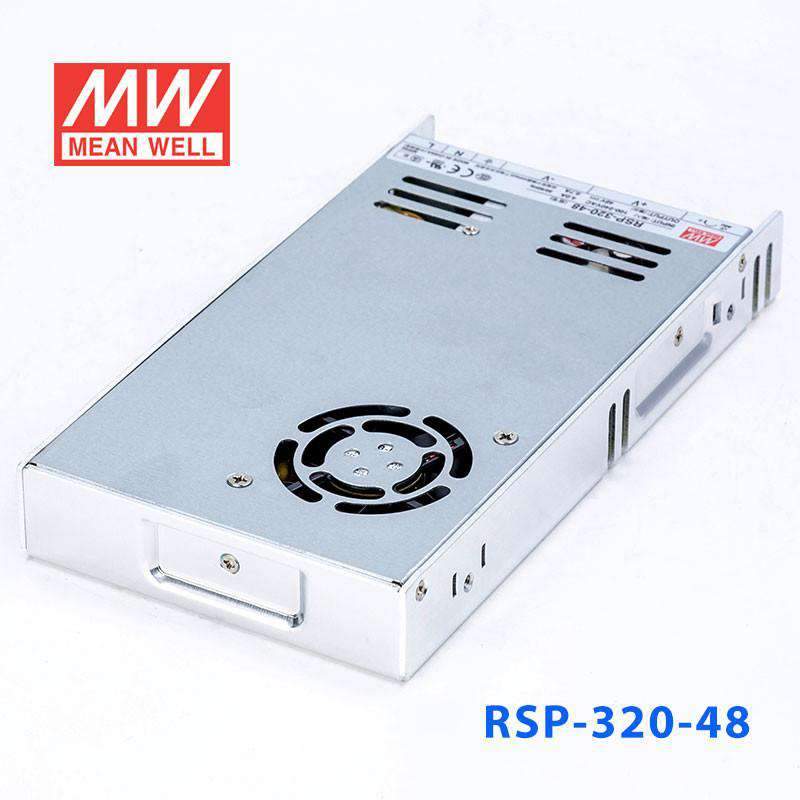

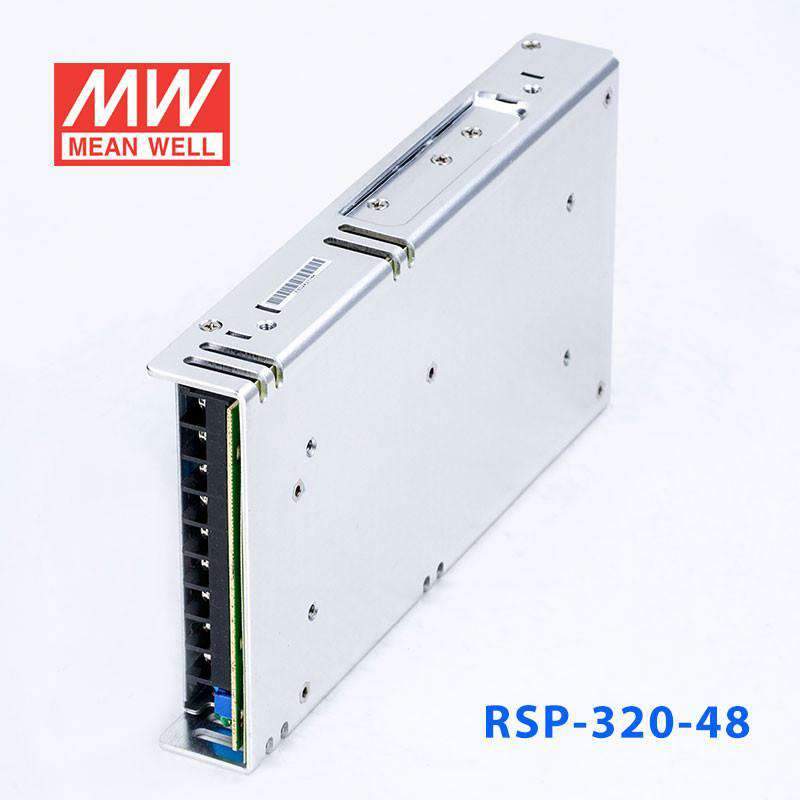

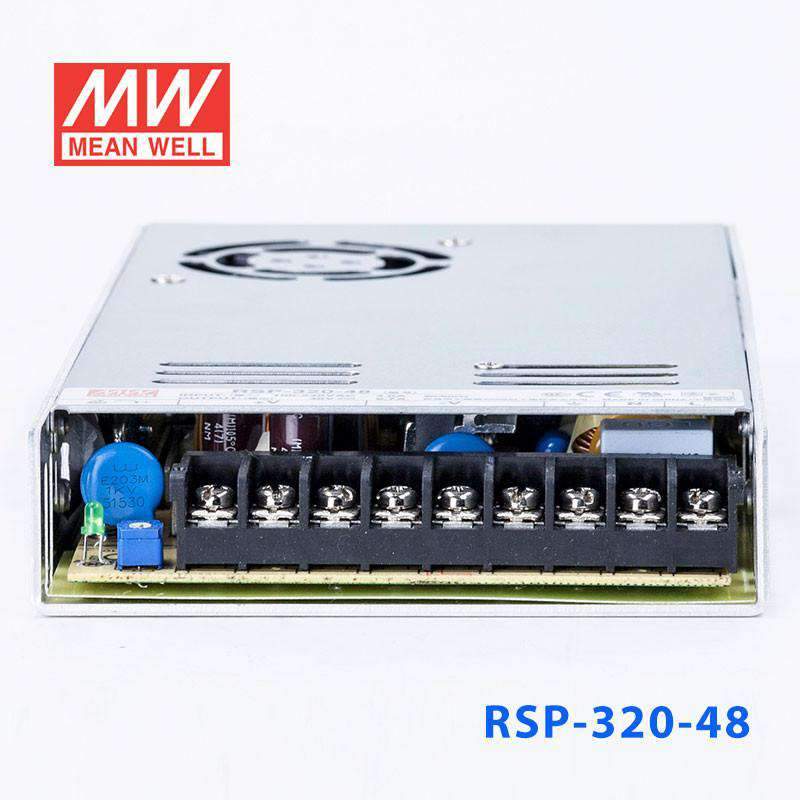

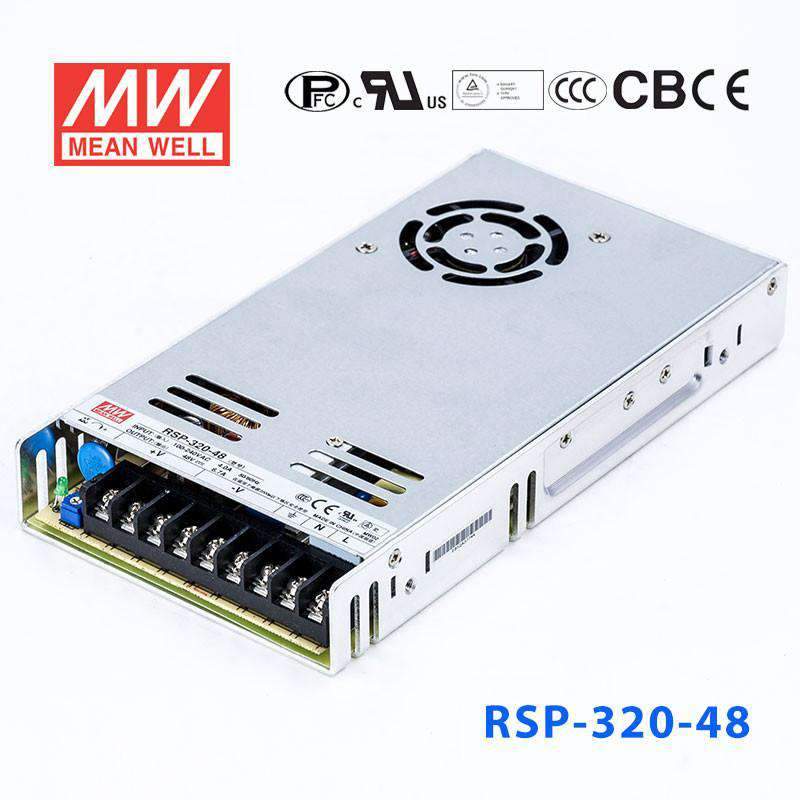

Mean Well RSP-320-48 Power Supply 320W 48V

Description

The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).

Key Features

✓ Input voltage range: 88~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: AS/NZS 60950.1
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

RSP Series
Power Rating

320 Watt
Output Voltage

48 Volt
Rated Current

6.7 Ampere
Input Voltage

88V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

21.5 cm
Width

11.5 cm
Height

3 cm
Weight

0.9 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the RSP-320-48 well-suited for in a 48V system?

The RSP-320-48 delivers 48V at 6.7A (320W), appropriate for powering PoE switches, small telecom equipment, and 48V DC bus subsystems in compact enclosures. Its 1U low-profile form factor (215.0 × 115.0 × 30.0 mm) supports tight rack or panel installations.

Does the RSP-320-48 operate in cold environments?

The RSP-320-48 is rated for -30°C to +70°C ambient, suitable for cold-climate indoor enclosures. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is not rated for outdoor use.

How does the RSP-320-48 compare to other RSP-320 high-voltage variants?

Within the RSP-320 series, the RSP-320-36 provides 320W at 8.9A and the RSP-320-48 provides 320W at 6.7A, both sharing the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-48 is the highest-voltage and lowest-current option in the RSP-320 line.

Does the RSP-320-48 accept universal AC input?

Yes. The RSP-320-48 accepts 88-264VAC, covering worldwide single-phase AC systems without manual switching. It includes built-in active PFC.

Model	Power	Voltage	Current
Mean Well RSP-320-12 Power Supply 320W 12V	320.4W	12V	26.7A	View
Mean Well RSP-320-24 Power Supply 320W 24V	320W	24V	13.4A	View
Mean Well RSP-320-7.5 Power Supply 300W 7.5V	300W	7.5V	40A	View
Mean Well RSP-320-5 Power Supply 300W 5V	300W	5V	60A	View
Mean Well RSP-320-4 Power Supply 240W 4V	240W	4V	60A	View
Mean Well RSP-320-36 Power Supply 320W 36V	320W	36V	8.9A	View
Mean Well RSP-320-3.3 Power Supply 198W 3.3V	198W	3.3V	60A	View
Mean Well RSP-320-27 Power Supply 320W 27V	320W	27V	11.9A	View
Mean Well RSP-320-2.5 Power Supply 320W 2.5V	150W	2.5V	60A	View
Mean Well RSP-320-15 Power Supply 320W 15V	320W	15V	21.4A	View
Mean Well RSP-320-13.5 Power Supply 320W 13.5V	320W	13.5V	23.8A	View
