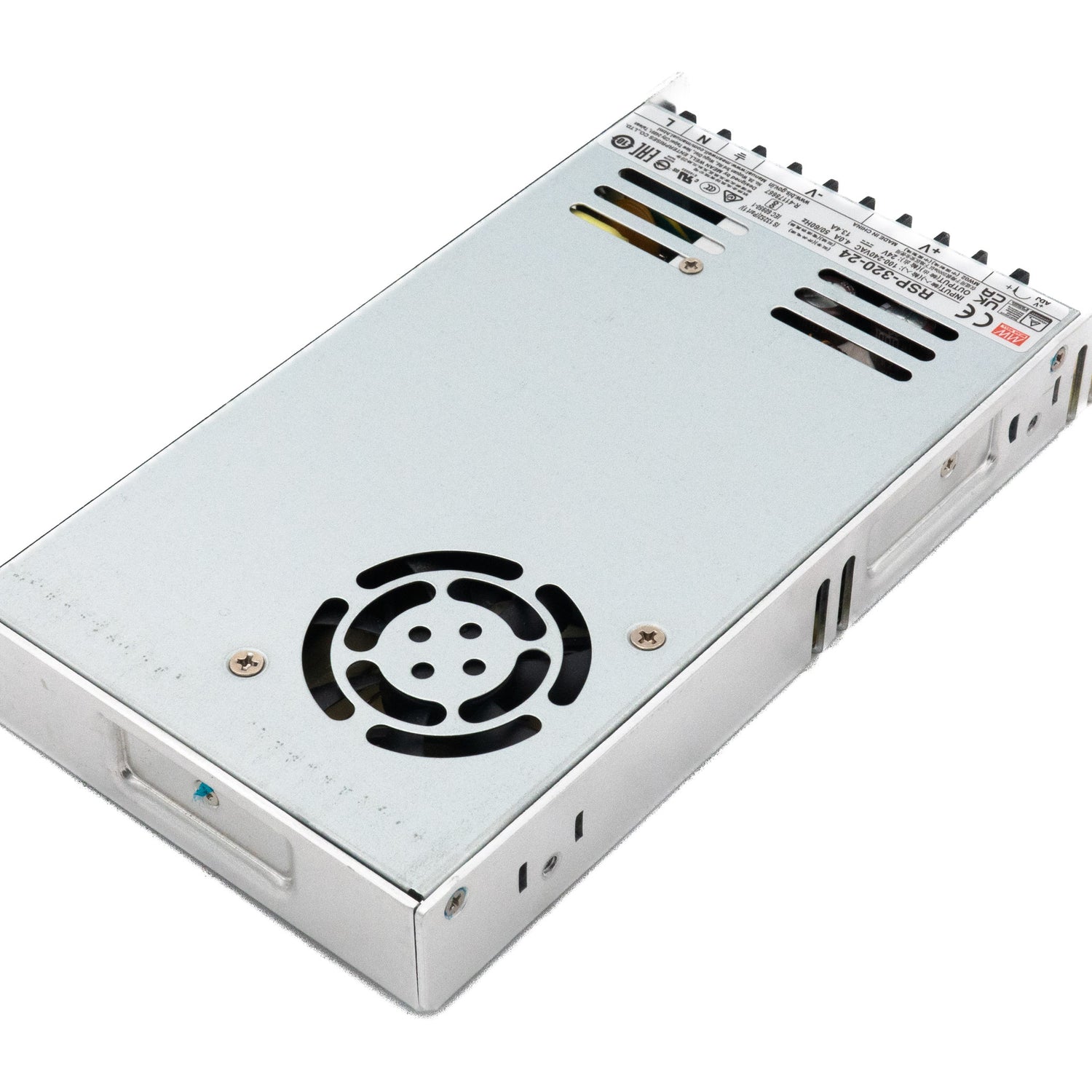

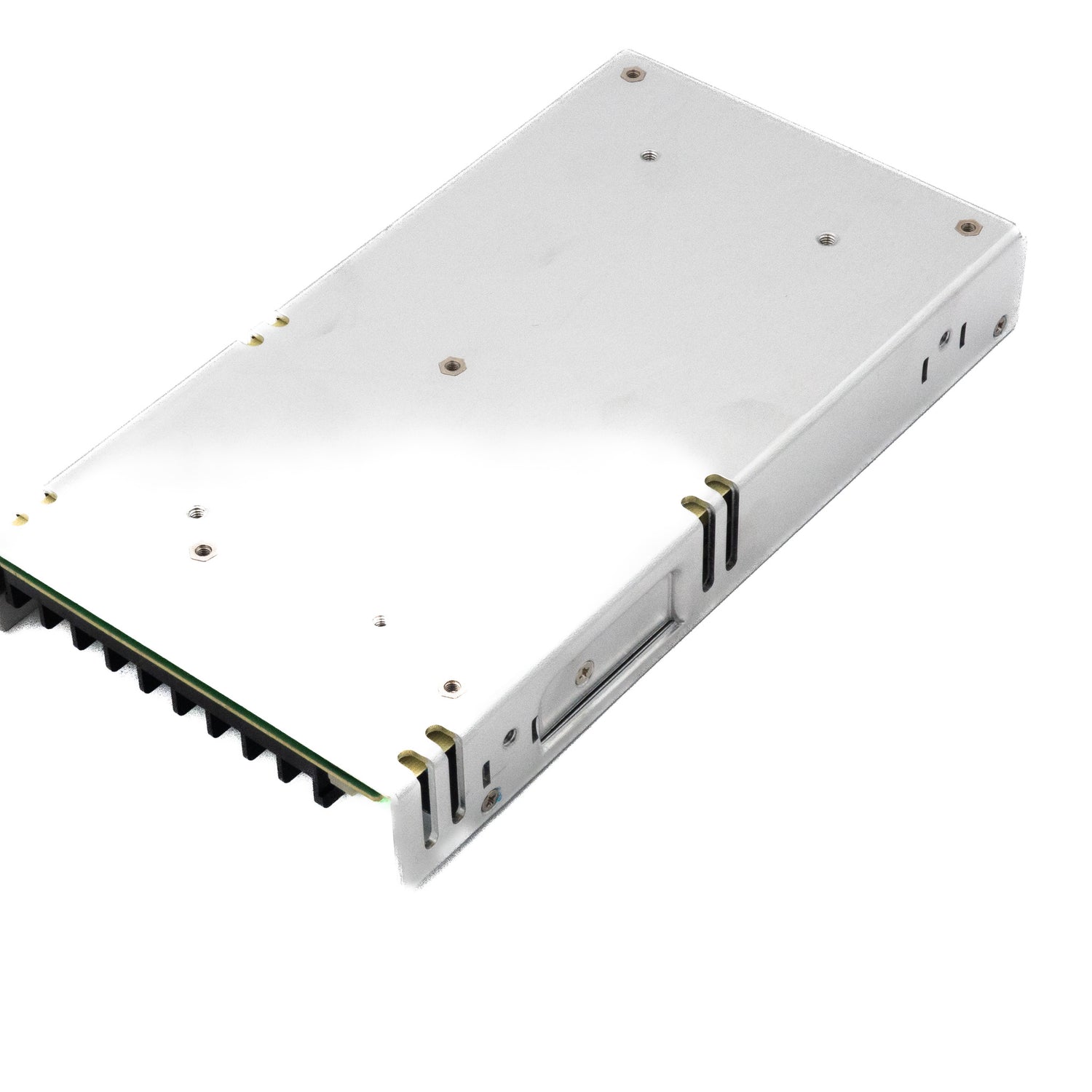

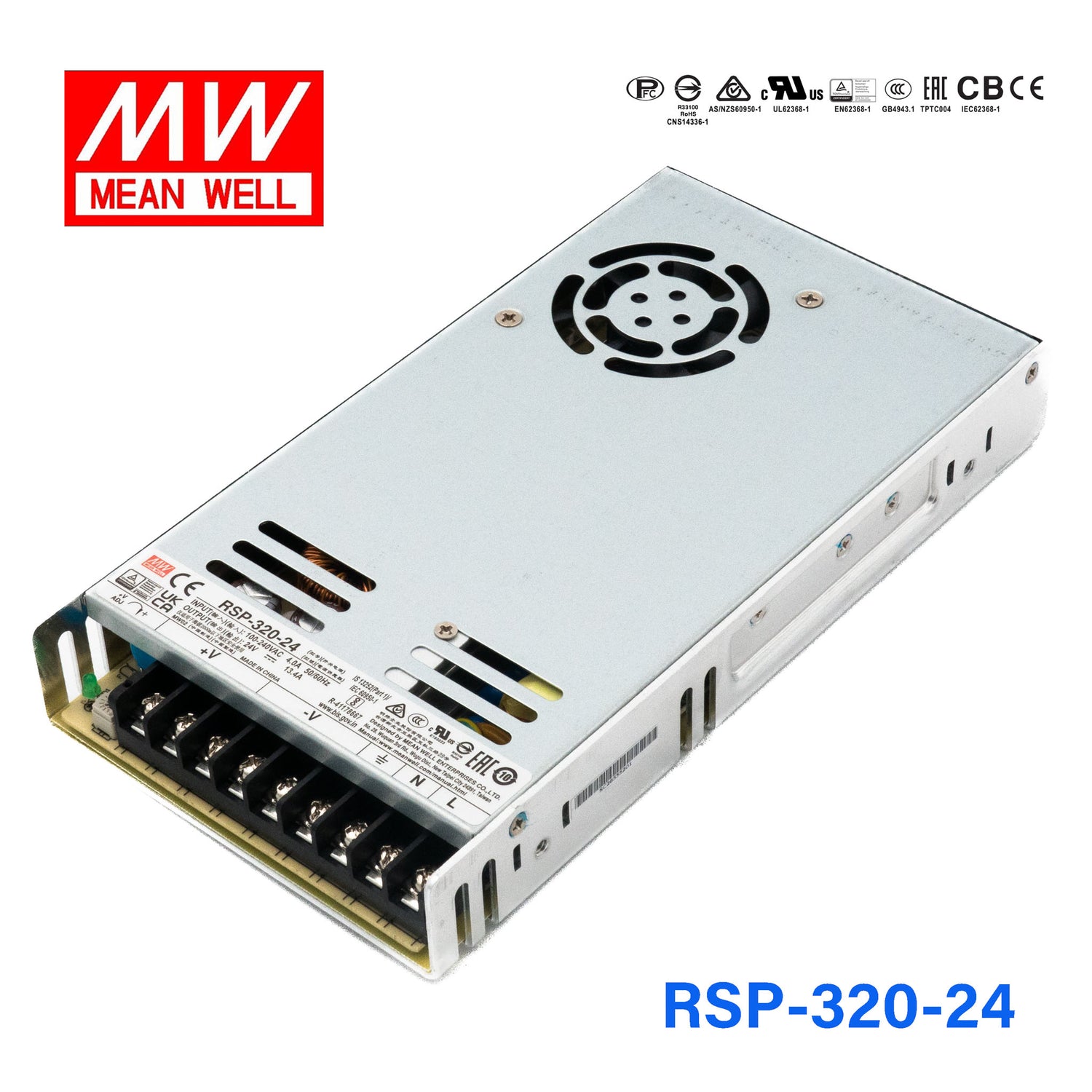

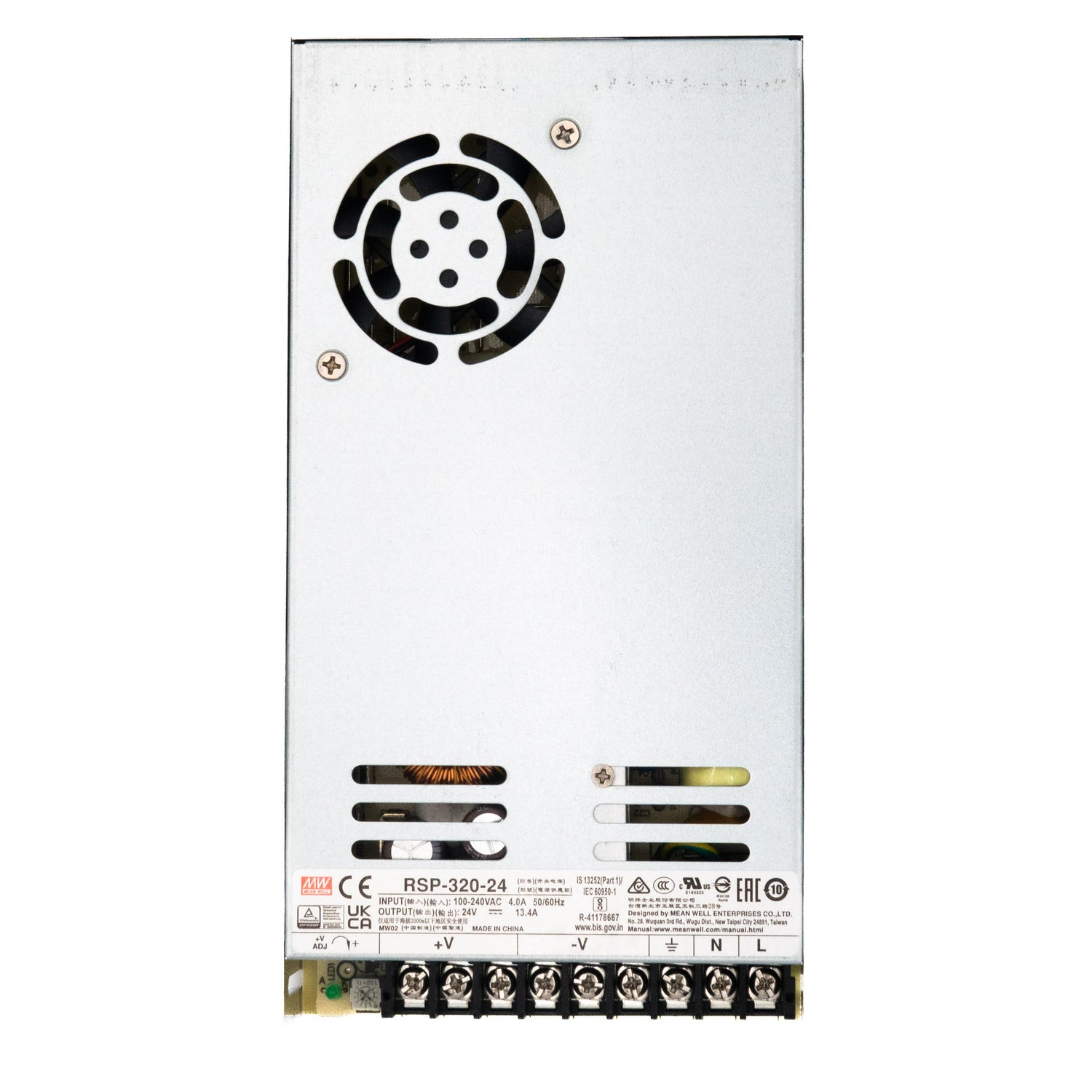

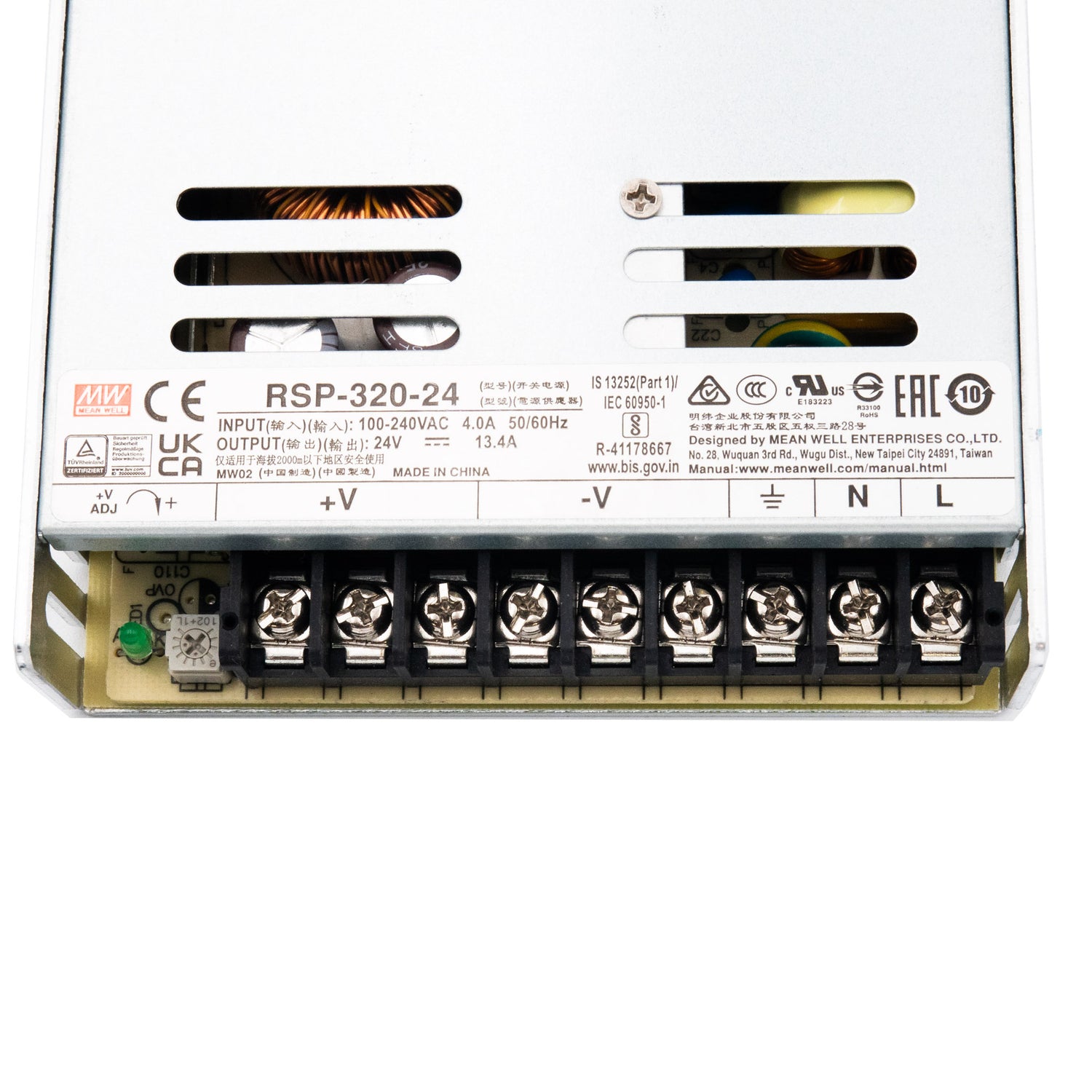

Mean Well RSP-320-24 Power Supply 320W 24V

Description

The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).

Key Features

✓ Input voltage range: 88~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: AS/NZS 60950.1
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

RSP Series
Power Rating

320 Watt
Output Voltage

24 Volt
Rated Current

13.4 Ampere
Input Voltage

88V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

21.5 cm
Width

11.5 cm
Height

3 cm
Weight

0.9 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What industrial control systems commonly use the RSP-320-24?

The RSP-320-24 delivers 24V at 13.4A (320W), the standard DC bus voltage for a wide range of PLCs, HMI panels, and industrial sensors. Its compact 1U footprint (215.0 × 115.0 × 30.0 mm) fits standard DIN-rail or rack enclosures.

What is the temperature operating range for the RSP-320-24?

The RSP-320-24 is rated for -30°C to +70°C, suitable for cold-climate indoor installations. It carries UL, CE, TÜV, CB, CCC, BSMI, and EAC certifications with a 3-year warranty.

How does the RSP-320-24 compare to the RSP-320-27 and RSP-320-36 at higher voltages?

All three share the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-24 outputs 320W at 13.4A, the RSP-320-27 provides 320W at 11.9A, and the RSP-320-36 provides 320W at 8.9A. Current decreases as voltage increases while wattage stays consistent.

Does the RSP-320-24 include power factor correction?

Yes. The RSP-320-24 includes built-in active PFC, which reduces reactive power draw and meets common power quality requirements in commercial and industrial installations.

Model	Power	Voltage	Current
Mean Well RSP-320-12 Power Supply 320W 12V	320.4W	12V	26.7A	View
Mean Well RSP-320-7.5 Power Supply 300W 7.5V	300W	7.5V	40A	View
Mean Well RSP-320-5 Power Supply 300W 5V	300W	5V	60A	View
Mean Well RSP-320-48 Power Supply 320W 48V	320W	48V	6.7A	View
Mean Well RSP-320-4 Power Supply 240W 4V	240W	4V	60A	View
Mean Well RSP-320-36 Power Supply 320W 36V	320W	36V	8.9A	View
Mean Well RSP-320-3.3 Power Supply 198W 3.3V	198W	3.3V	60A	View
Mean Well RSP-320-27 Power Supply 320W 27V	320W	27V	11.9A	View
Mean Well RSP-320-2.5 Power Supply 320W 2.5V	150W	2.5V	60A	View
Mean Well RSP-320-15 Power Supply 320W 15V	320W	15V	21.4A	View
Mean Well RSP-320-13.5 Power Supply 320W 13.5V	320W	13.5V	23.8A	View
