What is the Wago 221-502 mounting carrier used for?

The Wago 221-502 is a mounting carrier designed for 2-conductor terminal blocks in the 221 Series. It provides a dedicated holder for that connector format when a mounted arrangement is needed on a panel or similar surface.

Is this mounting carrier compatible with all Wago connectors?

No. This model is specifically described for 2-conductor terminal blocks in the Wago 221 Series. Buyers should match it to that series and conductor configuration rather than assuming broader compatibility.

What conductor size is this carrier intended for?

This mounting carrier is specified for 221 Series terminal blocks rated at 4 mm². That makes it a model-specific accessory rather than a general-purpose carrier for unspecified conductor sizes.

How does the 221-502 differ from a standard terminal block?

The 221-502 is not the terminal block itself. It is a mounting carrier for a 2-conductor 221 Series terminal block, intended to support a mounted installation where the connector needs to be secured in place.

What mounting style does the Wago 221-502 use?

This model is specified for screw mounting. That makes it suitable where a fixed, mechanically secured mounting carrier is required for the compatible 221 Series 2-conductor terminal block.

What are the physical characteristics of this mounting carrier?

The Wago 221-502 is white in color and has a listed weight of 0.0030 kg. These details can be useful when matching accessories across a project or planning lightweight component assemblies.

1 2

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Wago

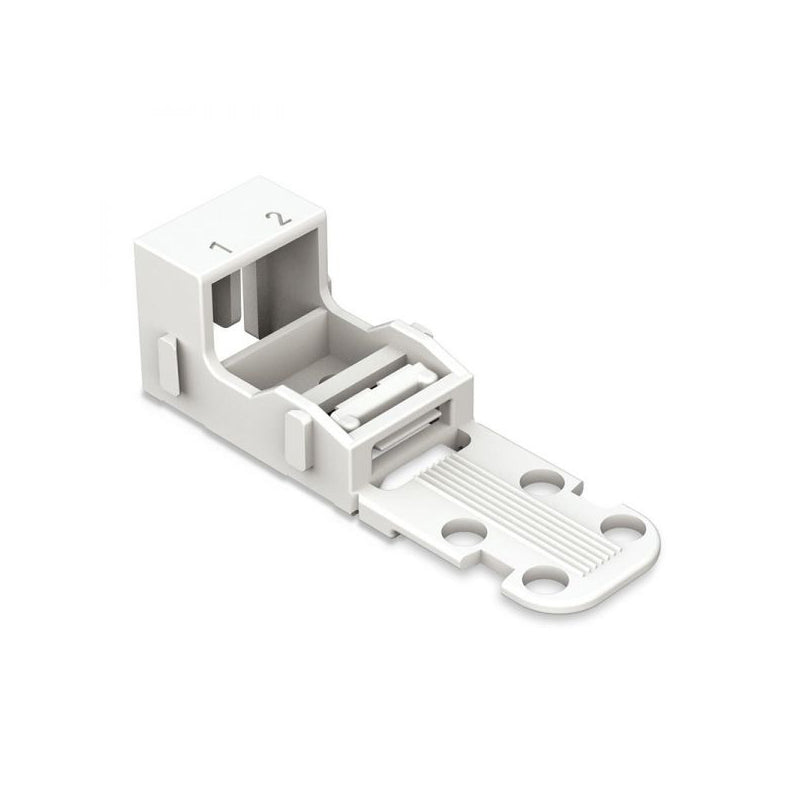

Wago 221-502 Mounting Carrier - 2-Conductor Terminal Block 221 Series

SKU:

221-502

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Mounting carrier; for 2-conductor terminal blocks; 221 Series - 4 mm²; for screw mounting; white
