Mean Well SGAS15B09-P1J Power Supply 15W 9V 1.66A
Log in to see priceOverview
SGAS15B09-P1J is the 9V output model of this series: rated current 1.66A, rated power 15W, typical efficiency 84%.
SGAS15B is a 15W compact size highly reliable, desktop style single-output green adaptor series, which is compact and convient for carry. This product is a classⅡ power unit (no FG) equipped with the standard IEC320-C8 AC inlet and accepting the input range from 90VAC to 264VAC. The whole series provides different models with output voltages ranging between 5VDC and 24VDC that it can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 86% and the extremely low no-load power consumption below 0.075W, SGAS15B is compliant with USA EISA 2007/DoE, EU ErP, and meet Code of Conduct(CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.
Features
- Extreme small
- Universal AC input / Full range
- 2 pole AC inlet IEC320-C8,Class Ⅱ power unit
- No load power consumption<0.075W
- Energy efficiency LevelⅥ
- Comply with EISA 2007/DoE,EU ErP and meet CoC Version 5
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- Pass LPS
- 7.5V / 18V / 48V models available (by request)
- Various DC plug quick adapter accessory available
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- SGAS15B09
- DC VOLTAGENote.2
- 9V
- RATED CURRENT
- 1.66A
- CURRENT RANGE
- 0 ~1.66A
- RATED POWER
- 15W
- RIPPLE & NOISE (max.)Note.3
- 80mVp-p
- VOLTAGE TOLERANCENote.4
- ±5.0%
- LINE REGULATIONNote.5
- ±0.5%
- LOAD REGULATIONNote.6
- ±5.0%
- SETUP, RISE, HOLD UP TIME
- 3000ms, 50ms, 10ms at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 135 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 84%
- AC CURRENT
- 0.4A / 100VAC
- INRUSH CURRENT (max.)
- Cold start 30A/ 115VAC 50A / 230VAC
- LEAKAGE CURRENT(max.)
- 0.25mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- >120% rated output voltage Protection type : Clamp by zener diode
ENVIRONMENT
- WORKING TEMP.

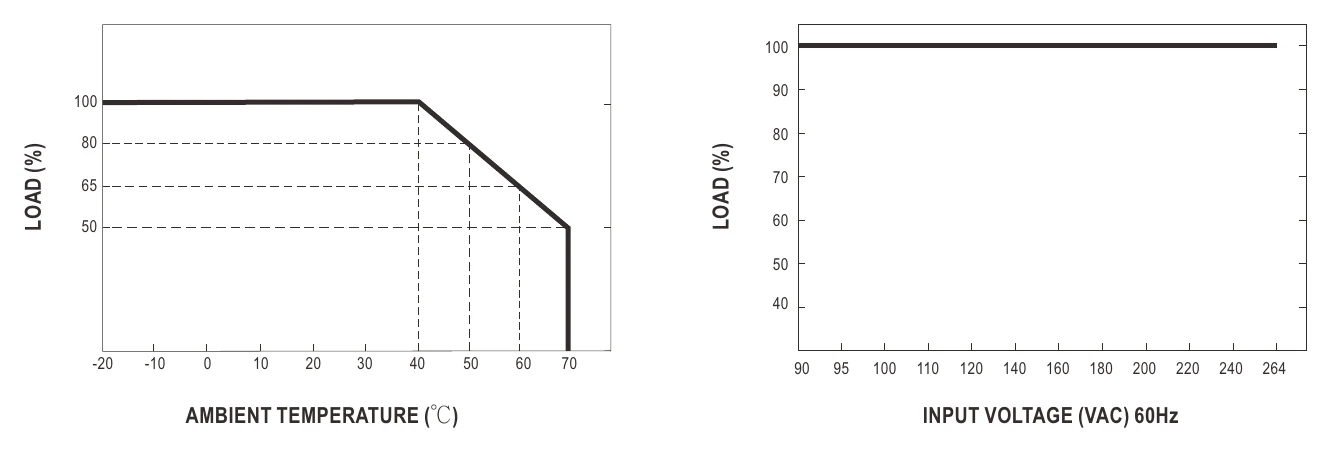

- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Compliance to EN55022 Class B, EN61000-3-2,3
Parameter Standard Test Level Conducted emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Radiated emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 ------- - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT bursts BS EN/EN61000-4-4 Level 2, 1KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- LIFE
- 3 years : 100% load 40℃, 12hours / day
- MTBF
- 507Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 80*39*27.7mm (L*W*H)
- PACKING
- 130g ; 72pcs / 11Kg / CARTON
CONNECTOR
- PLUG

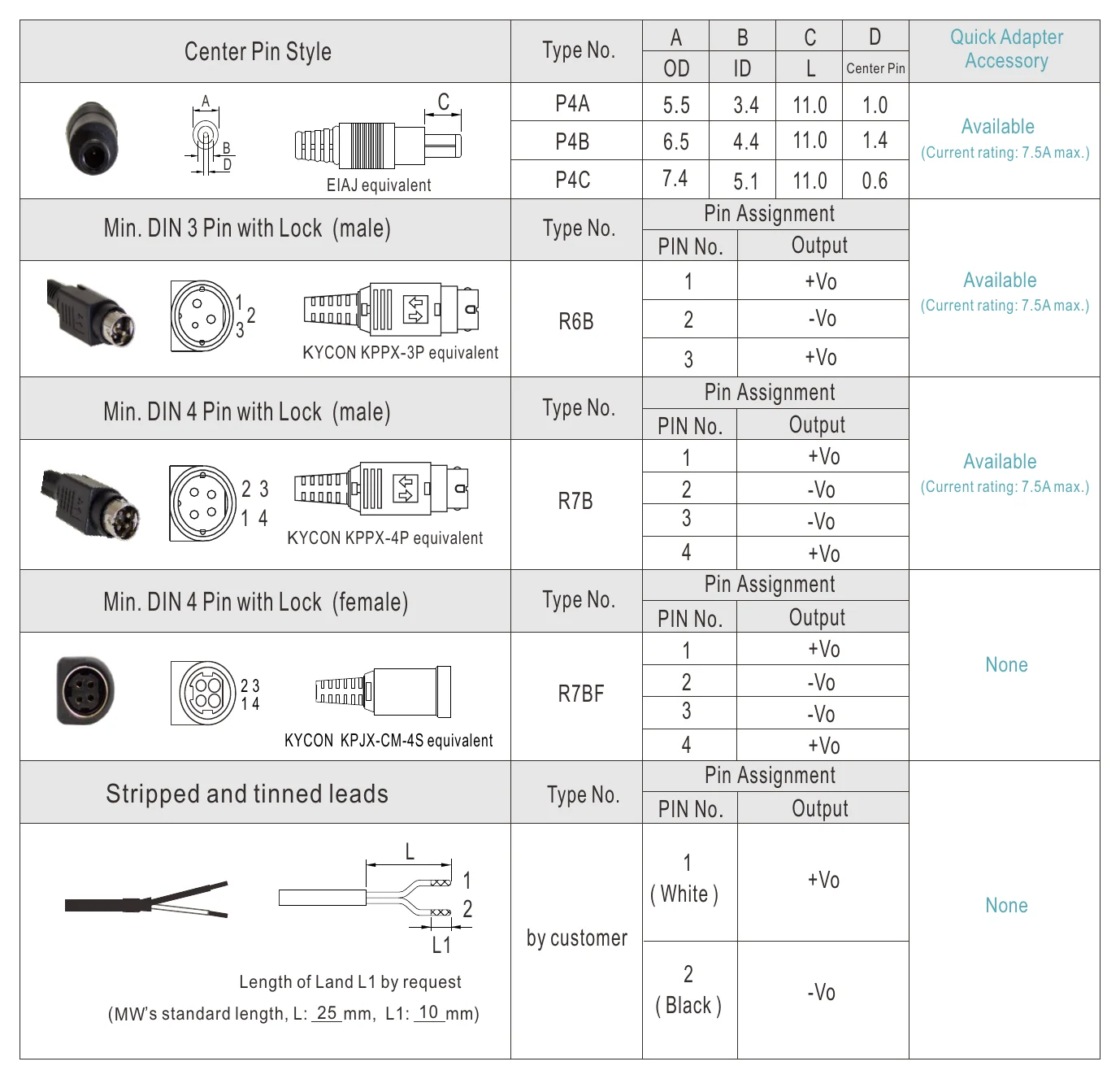

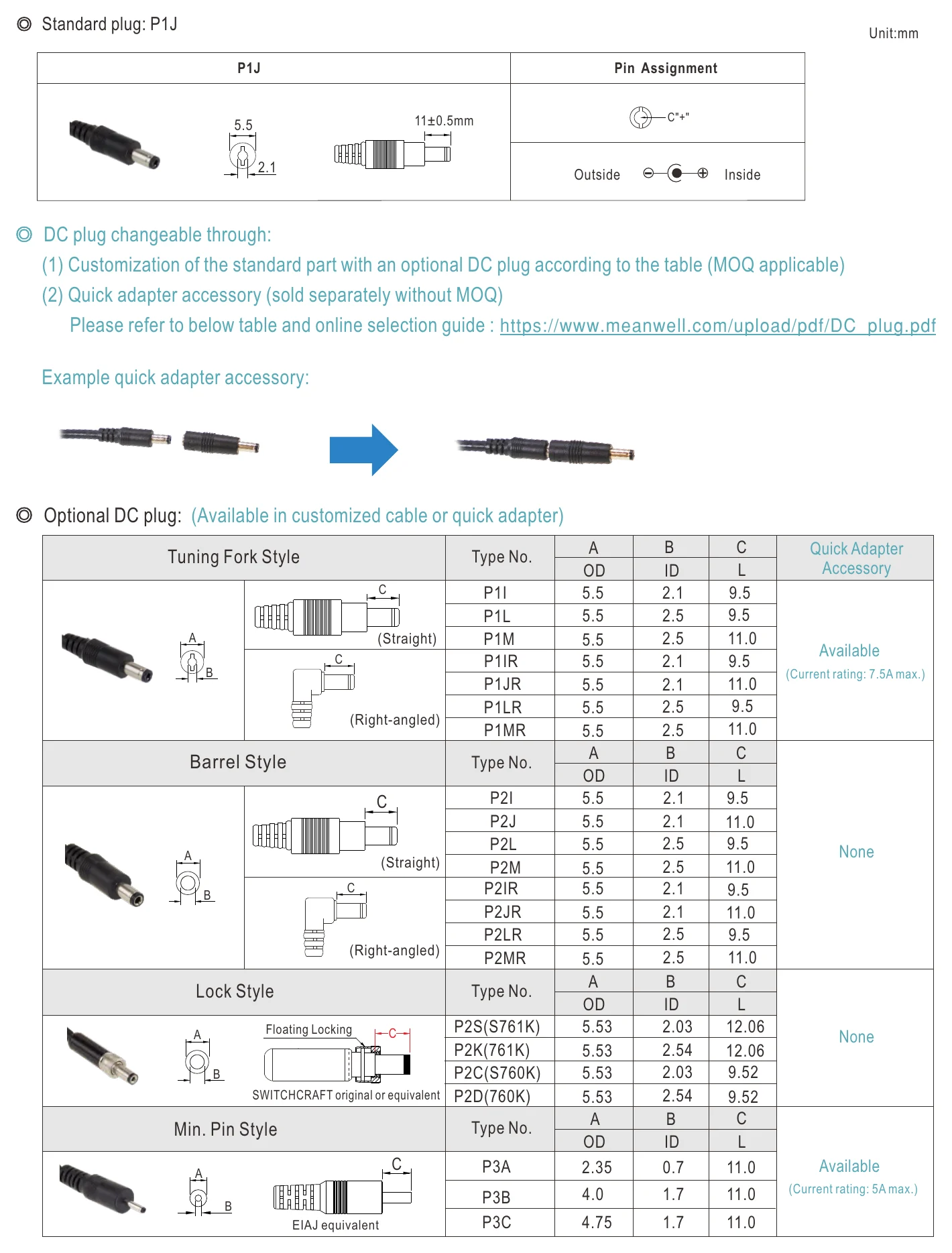

- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
Test conditions and notes7
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.Load regulation is measured from 0% to 100% rated load.
- 7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

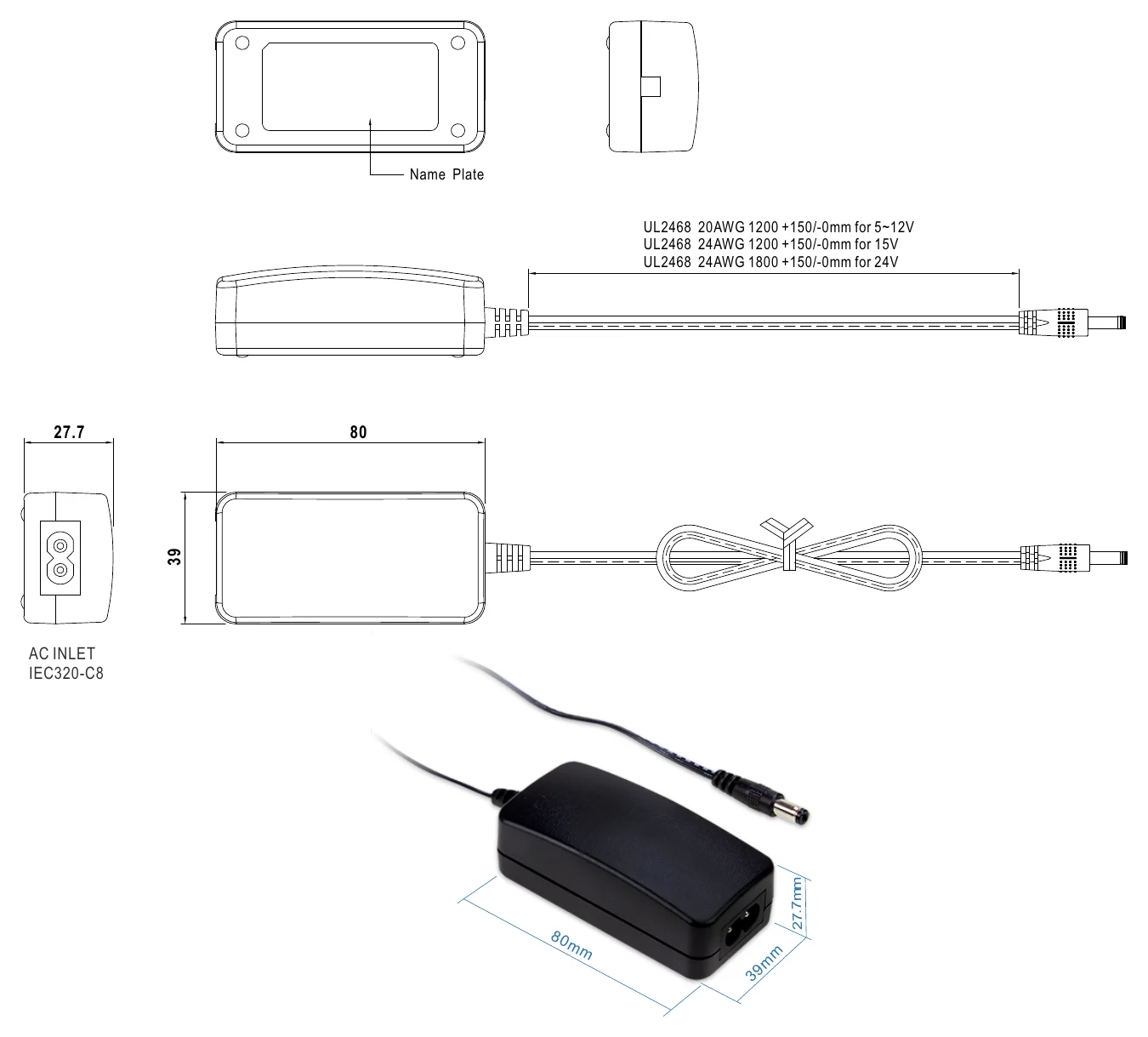

Technical drawings
Typical applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
Downloads
Certificates6
Test reports1
FAQ
Can I use the SGAS15B09-P1J for a 9V embedded device or control board?
Yes, if the equipment requires constant-voltage 9V DC and stays within 15W total power. This model provides up to 1.66A at 9V, which makes it suitable for lower-power embedded electronics built around a 9V supply rail.
Is this 9V power supply appropriate for small automation modules or signal-processing devices?
It can be used for 9V automation or signal devices that need a regulated 9V output and draw no more than 1.66A. The constant-voltage design is intended for loads specified for a fixed 9V DC input.
Can this model power a compact industrial communication or monitoring device that uses 9V DC?
It is a fit for compact 9V DC devices when their demand remains at or below 15W and 1.66A. The 90-264VAC input range also supports deployment where AC mains conditions vary across sites.
Would the SGAS15B09-P1J make sense for bench, lab, or test equipment with a 9V DC requirement?
It can support small 9V lab or test devices that are designed for constant-voltage input and stay within the 15W rating. For sizing, the main limits to check are the 9V output and 1.66A maximum current.
Can this 9V power supply be used in cold or warm indoor environments?
The specified operating temperature range is -20°C to +70°C, so the temperature rating covers both cold and warm protected locations within that span. No IP rating is listed, so the provided specs do not define outdoor, washdown, or dust-tight performance.
