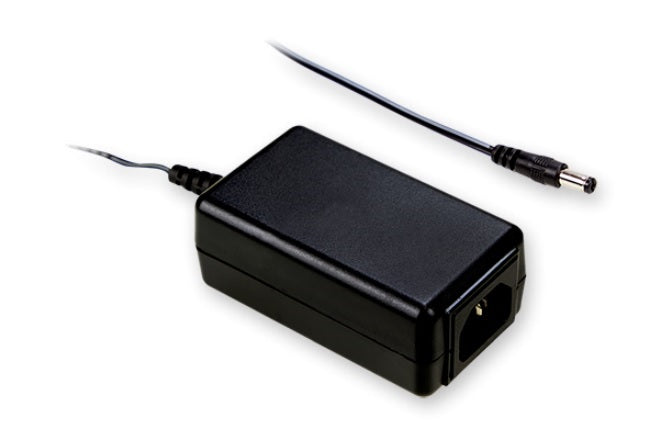

Mean Well SGAS15A24-P1J Power Supply 15W 24V 625mA
Log in to see priceOverview
SGAS15A24-P1J is the 24V output model of this series: rated current 0.625A, rated power 15W, typical efficiency 86%.
SGAS15A is a 15W compact size highly reliable, desktop style single-output green adaptor series, which is compact and convient for carry. This product is a classⅠ power unit (with FG) equipped with the standard IEC320-C14 AC inlet and accepting the input range from 90VAC to 264VAC. The whole series provides different models with output voltages ranging between 5VDC and 24VDC that it can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 86% and the extremely low no-load power consumption below 0.075W, SGAS15A is compliant with USA EISA 2007/DoE, EU ErP, and meet Code of Conduct(CoC) Version 5. The superme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.
Features
- Extreme small
- Universal AC input / Full range
- 3 pole AC inlet IEC320-C14,ClassⅠpower unit
- No load power consumption<0.075W
- Energy efficiency LevelⅥ
- Comply with EISA 2007/DoE,EU ErP and meet CoC Version 5
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- Pass LPS
- ‧7.5V / 18V / 48V models available (by request)
- Various DC plug quick adapter accessory available
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- SGAS15A24
- DC VOLTAGENote.2
- 24V
- RATED CURRENT
- 0.625A
- CURRENT RANGE
- 0 ~ 0.625A
- RATED POWER
- 15W
- RIPPLE & NOISE (max.)Note.3
- 100mVp-p
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATIONNote.5
- ±0.5%
- LOAD REGULATIONNote.6
- ±2.0%
- SETUP, RISE, HOLD UP TIME
- 3000ms, 50ms, 10ms at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 86%
- AC CURRENT
- 0.4A / 100VAC
- INRUSH CURRENT (max.)
- Cold start 30A/ 115VAC 50A / 230VAC
- LEAKAGE CURRENT(max.)
- 0.25mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- >120% rated output voltage Protection type : Clamp by zener diode
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC , I/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Radiated emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 ------- - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT bursts BS EN/EN61000-4-4 Level 2, 1KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N 2KV/L,N-PE Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- LIFE
- 3 years : 100% load 40℃, 12hours / day
- MTBF
- 507Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 85.7*50.9*33.8mm (L*W*H)
- PACKING
- 150g ; 90pcs / 14Kg / CARTON
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
Test conditions and notes7
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.Load regulation is measured from 0% to 100% rated load.
- 7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
Downloads
Certificates6
Test reports1
FAQ
Can I use the SGAS15A24-P1J for a 24V PLC accessory or industrial sensor?
This model provides 24V output at up to 0.62A and 15W. It can be used for low-power 24V PLC accessories, sensors, or control components that stay within those ratings.
Is this 24V supply suitable for small automation or monitoring devices?
It is a fit for 24V automation or monitoring electronics that do not exceed 0.62A. The 15W output rating defines the maximum supported load for those applications.
Can this power supply run a 24V communications or interface module?
Yes, if the module is designed for 24V and its power draw stays within 0.62A and 15W. The wide 90-264VAC input range is also useful for equipment deployed in different AC power environments.
What kind of 24V load is this model sized for?
It is sized for lighter 24V loads up to 0.62A, with total output capped at 15W. That makes it better suited to low-power control or interface devices than higher-draw 24V equipment.
Is the SGAS15A24-P1J appropriate for outdoor conditions?
The listed operating temperature range is -20°C to +70°C. No IP rating appears in the provided specs, so outdoor use should not be assumed without confirming the enclosure protection level separately.
