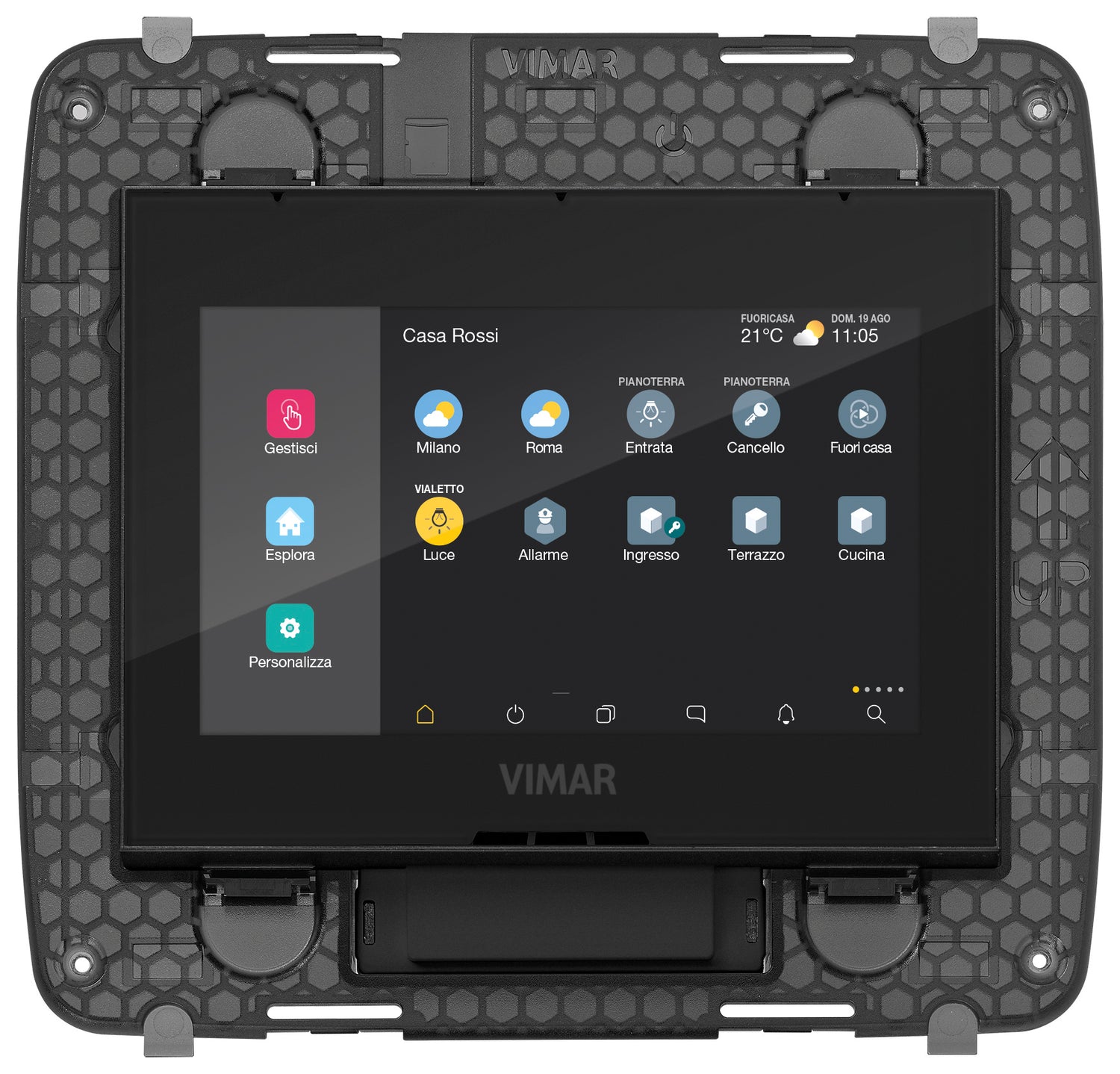

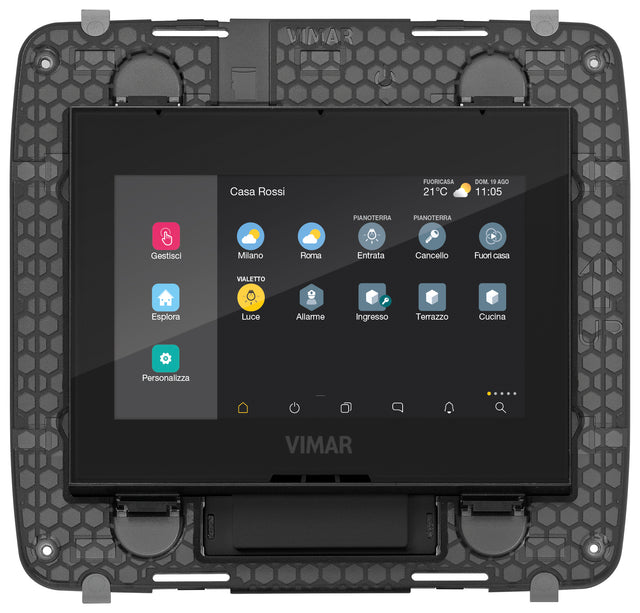

Vimar VM-01420 IP 4.3in PoE Touch Screen 8M Black

PoE or 12-30Vdc, built-in 8M frame

SKU:

VM-01420

Notify me when it's back in stock

Description

Touch screen with 4.3” IP capacitive colour display, used as a home automation system supervisor, IP/Due Fili Plus internal video entryphone, IP video camera and CCTV system manager, power supply PoE or 12-30 Vdc, with built-in 8 (4+4)-module mounting frame, to be completed with Eikon, Arké or Plana cover plate, black

Specifications

Brand

Vimar
Standards Met

CE,EU,ROHS,WEEE
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

21.7 cm
Width

22.1 cm
Height

8.3 cm
Weight

0.43 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Vimar VM-01420 used for?

The Vimar VM-01420 is a 4.3-inch touch screen designed to act as a supervisor for a home automation system. It is also described for use as an IP/Due Fili Plus internal video entryphone, an IP video camera manager, and a CCTV system manager.

What display and format does this model have?

This model features a 4.3-inch IP capacitive colour touch display. It is supplied with a built-in 8-module mounting frame arranged as 4+4.

Is the Vimar VM-01420 intended for smart home and building control applications?

Yes. Based on its product family and categories, this model is positioned for smart home and building use, especially within Vimar By-me Plus supervision applications. Its role as a system supervisor makes it suitable for centralized interface use on compatible projects.

Which Vimar plate ranges is the VM-01420 designed to match?

The VM-01420 is designed to be completed with a Vimar Eikon, Arké, or Plana cover plate. This helps it align with those Vimar aesthetic ranges while keeping the device itself in a black finish.

What power options are specified for the Vimar VM-01420?

This model supports power over Ethernet (PoE) or a 12-30 Vdc power supply. Those are the two power options explicitly stated for this product.

What operating temperature range is listed for this touch screen?

The published temperature range for the VM-01420 is from -25 degrees C to 70 degrees C. That indicates suitability for environments where equipment may be exposed to a wide span of ambient temperatures.

What are the finish color, weight, and warranty for this model?

The Vimar VM-01420 is listed in a black finish and has a weight of 0.4322 kg. The stated warranty period for this model is 3 years.
