Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

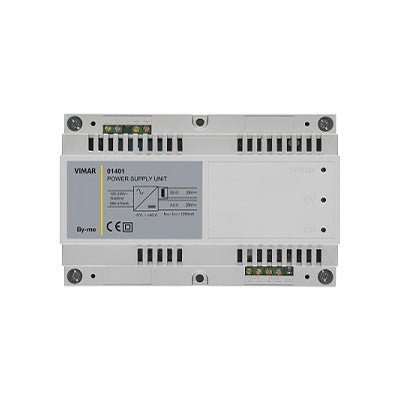

Vimar VM-01401 Supply Unit 120-230V~ 29Vdc 1280mA 1.28A

Din RailBy-me Bus PSU

SKU VM-01401

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

VM-01401 is Vimar 01401, supply unit 120-230V~ 29Vdc 1280mA.

Power supply with 29 Vdc 1280 mA output, supply voltage 120- 230 V~ 50/60 Hz, with decoupling coil (choke) for DIN (60715 TH35) rail installation, occupies 8 17,5 mm modules

Specifications

VM-01401Specifications from the official datasheet

Technical data

Product type: Power supply for bus system
Bus system KNX: No
Bus system KNX-RF (Radio Frequency): No
Bus system radio frequency: Yes
Bus system LON: No
Bus system Powernet: No
Width in number of modular spacings: 8
Width: 140 mm
Height: 90 mm
Depth: 63.8 mm
With LED indication: Yes
Bus voltage stockable: No
Number of integrated choke coils: 1
Number of lines to feed: 2
Max. output current: 1.28.00 mA

Packaging

EAN: 8007352506121
Packed size (cm): 15.8 × 12.4 × 9.6
Packed weight: 519.1 g
Pieces per box: 30

Certifications

Certifications: CE marking (EU), RoHS UAE, IMQ (Italy), WEEE Directive

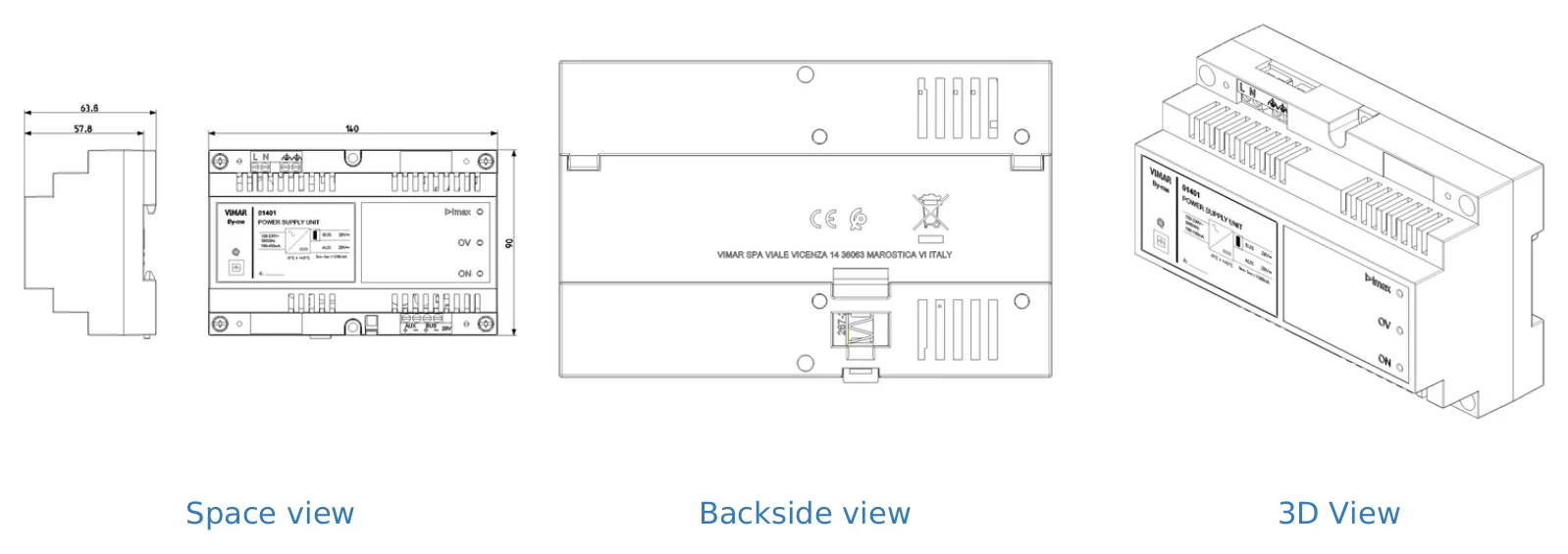

Technical drawings

Downloads

Certificates2

Vimar Electrotechnical Expert Certificate PDF Download

Vimar WEEE Directive Certificate PDF Download
