Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

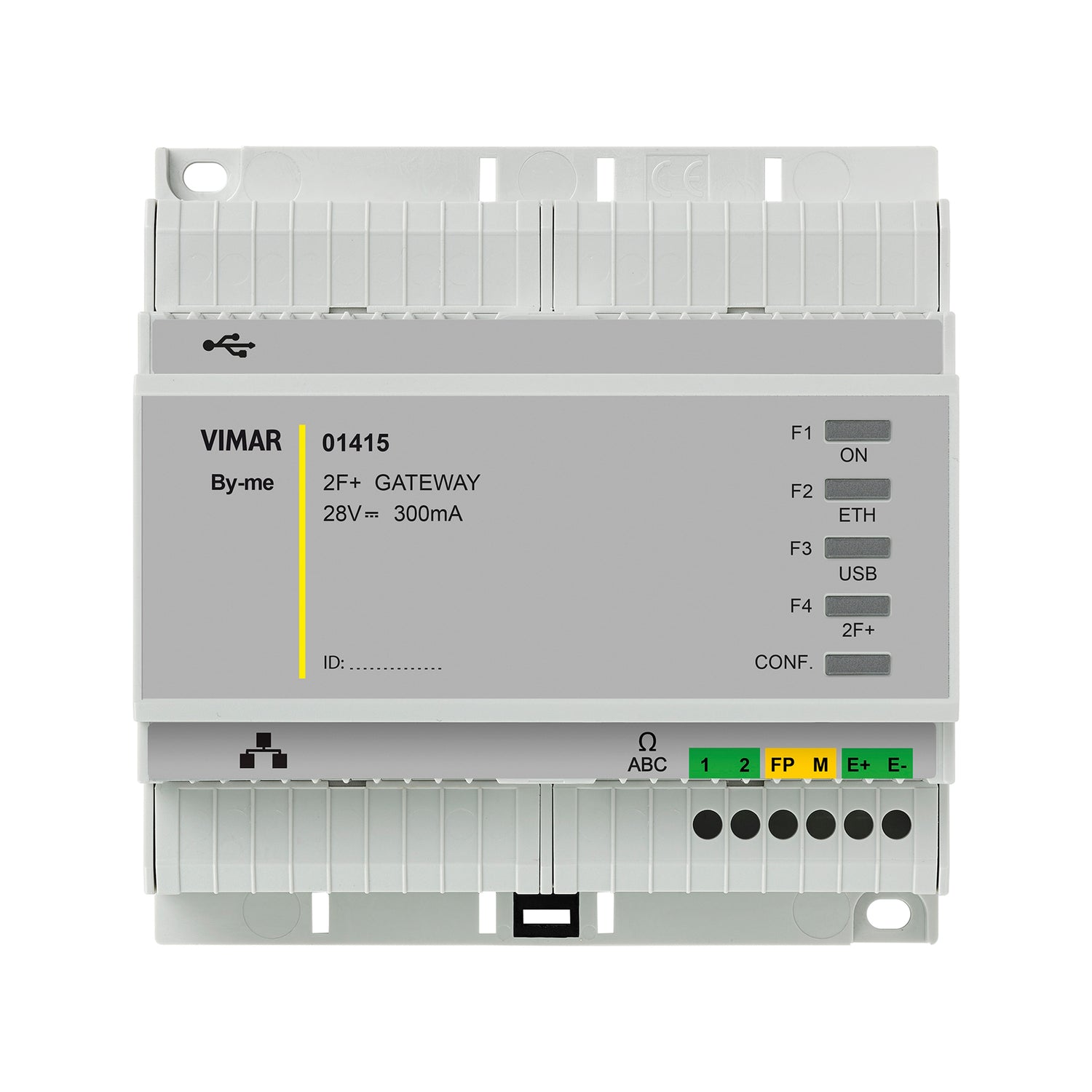

Vimar VM-01415 Video Entry System Gateway 2F+

IoT gatewayDue Fili PlusIP/LAN connection

SKU VM-01415

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

VM-01415 is Vimar 01415, video entry system gateway 2F+.

IoT gateway for integration of Due Fili Plus video door entry system with IP/LAN network, Cloud and App for smartphone, tablet, PC or supervision touch screens, installation for DIN (60715 TH35) rail installation, occupies 6 17.5 mm modules

Specifications

VM-01415Specifications from the official datasheet

Technical data

Product type: System interface/media gateway for bus system
Bus system KNX: Yes
Bus system KNX-RF (Radio Frequency): No
Bus system radio frequency: No
Bus system LON: No
Bus system Powernet: No
Radio frequency bidirectional: No
Model: Ethernet interface
Mounting method: DRA (DIN-rail adaptor)
Width in number of modular spacings: 6
Demounting protection: No
With LED indication: Yes
Updateable: Yes
Provider dependent: No
Visualization: Yes
Web-Server: Yes
Radio interface: No
IR interface: No
Degree of protection (IP): IP20

Packaging

EAN: 8007352593077
Packed size (cm): 11.9 × 11.5 × 6.9
Packed weight: 222.2 g

Certifications

Certifications: CE marking (EU), RoHS UAE, WEEE Directive, UK PSTI compliance

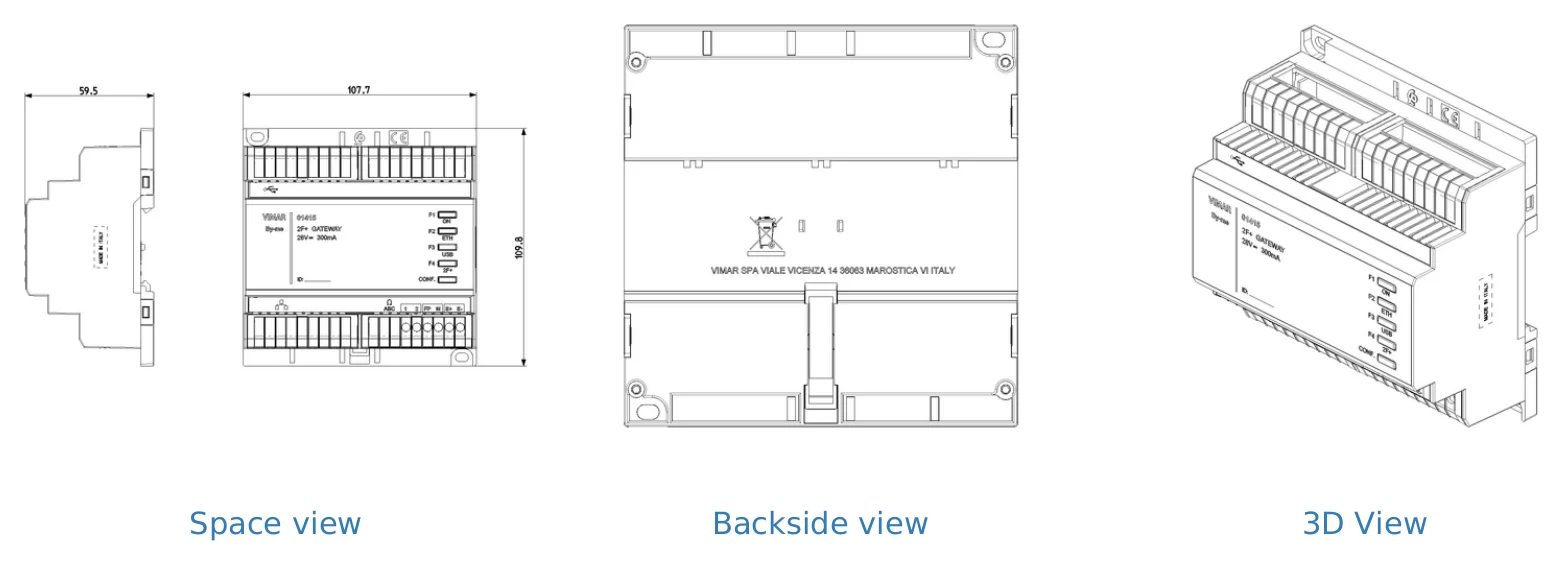

Technical drawings

Downloads

Certificates2

Vimar Electrotechnical Expert Certificate PDF Download

Vimar WEEE Directive Certificate PDF Download

FAQ

What does the Vimar VM-01415 Gateway 2F+ do?

The Vimar VM-01415 is an IoT gateway designed to integrate the Due Fili Plus video door entry system with an IP/LAN network. It also enables access through cloud-based services and apps on devices such as smartphones, tablets, PCs, and supervision touch screens.

Which systems is the Vimar VM-01415 compatible with?

This model is specifically intended for the Vimar Due Fili Plus video door entry system. It is built to bridge that system with IP/LAN network environments and supported cloud and app-based access interfaces.

What kind of mounting format does the Vimar VM-01415 use?

The VM-01415 is made for DIN rail installation using the 60715 TH35 standard. It occupies 6 modules of 17.5 mm each, which helps when planning space inside an electrical enclosure.

Is the Vimar VM-01415 suitable for demanding temperature conditions?

This gateway has a stated operating temperature range from -25 °C to 70 °C. That makes it suitable for environments where equipment may be exposed to both low and high temperatures within that range.

What are the basic physical specifications of the Vimar VM-01415?

The listed weight of the Vimar VM-01415 is 0.2222 kg. It is a compact DIN rail device sized to occupy 6 standard 17.5 mm modules.

What warranty period is listed for the Vimar VM-01415?

The product data lists a warranty period of 3 years for this model. For procurement or project documentation, this can be used as the stated warranty term for the VM-01415.
